Product Details:
Payment & Shipping Terms:
|
Model Number: | HTF-022 | Iterm: | Fabric Hydrostatic Pressure Tester |
---|---|---|---|
Minimum Order Quantity: | 1 Set | Delivery Time: | 15 Working Days |
Payment Terms: | T/T, L/C, Western Union | Place Of Origin: | Guangdong,China(Mainland) |
Certificate: | CE | Standard: | CNS-1083, BS 3084 ,DIN3419-1 |
High Light: | Fabric Hydrostatic Pressure Tester,BS 3084 Zip Fatigue Tester,DIN3419-1 Zip Fatigue Tester |

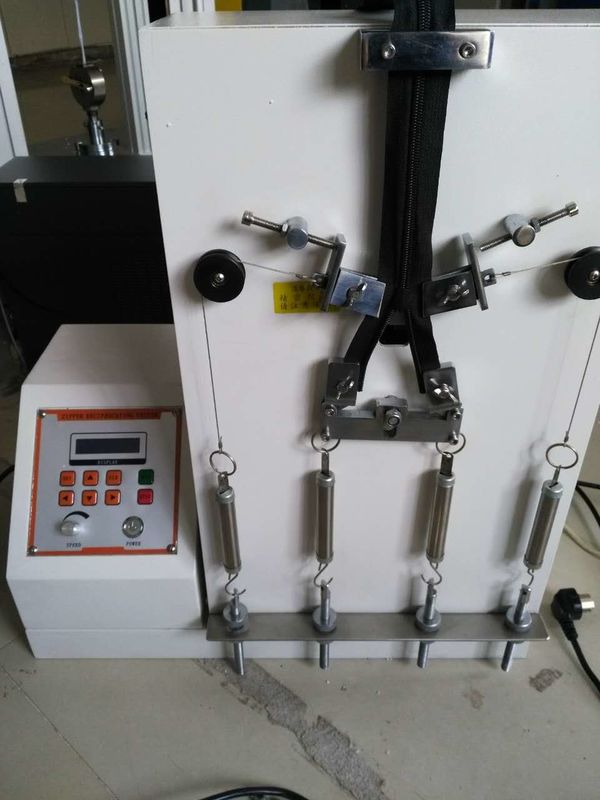

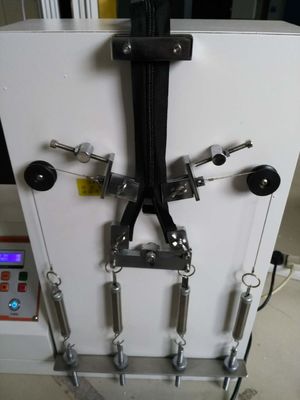

Zipper Tester, to determine the resistance to reciprocation of zipper (slide fastener), the test specimen is subjected to a specified number of cyclic operations whilst under lateral and longitudinal tension. Zipper Tester complies with BS 3084, CNS -1083,DIN3419-1
Zipper Tester catches the head of zipper to do reciprocating movement in a constant speed for 30 times per minute. Integral counter is set to stop the drive when a pre-selected count has been reached.
Equipped with a sensor so that the machine will stop automatically before the zipper is broke. Adjustable stoke 40~100mm is offered as request.
Specifications
Repeat route:75mm
Crosswise Clamp dimension:25mm
Longitudinal Clamp weight:0.28~0.34kg
Distance between two clamp devices: 6.35mm
Specimen open Angle: 60°
Specimen close angle: 30°
Speed: 30cpm

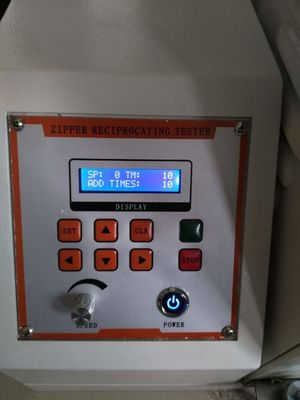

Counter: LCD, 0~999,999
Dimension: 300×550×650cm (L×W×H)
Standards: CNS-1083, BS 3084 ,DIN3419-1
Service and Support
Our company focuses on research and development , we were produced some intelligent testing equipments over thirteen years, we continue to provide stable performance, high-quality equipment for product quality testing industry.At present, the company has 14 utility model patent technologies,2 patents for invention and participated in the drafting and formulation of nine national standards.
In cooperation we has a variety of testing units, industries, association partners and friends, accumulated a large number of detection industry insights and contacts, for those friends who just come into testing industry, we can learn from each other to communicate, explore the problems and difficulties encountered in testing.
