Product Details:
Payment & Shipping Terms:
|
| Model Number: | HTL-001 | Iterm: | Textile Dyeing Printing Standard Light Color Assessment Cabinet |
|---|---|---|---|
| Minimum Order Quantity: | 1 Set | Delivery Time: | 15 Working Days |
| Payment Terms: | T/T, L/C, Western Union | Place Of Origin: | Guangdong,China(Mainland) |
| Standard: | ISO3364 / ASTMD1729 / DIN / BSI / ANSI CIE | ||
| High Light: | ISO3364 Color Assessment Cabinet,Textile Color Assessment Cabinet,ASTMD1729 Textile Color Matching Cabinet |
||

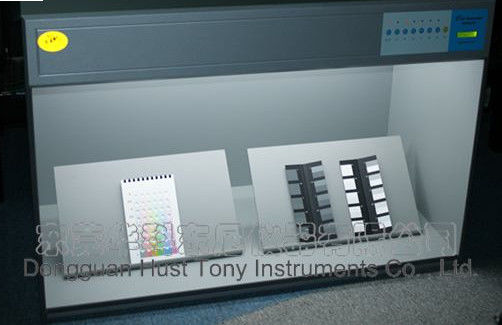

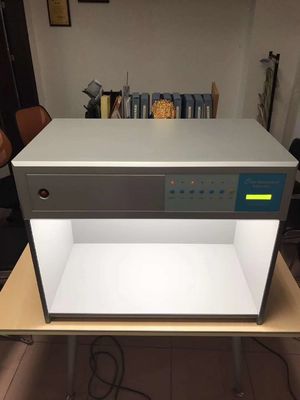

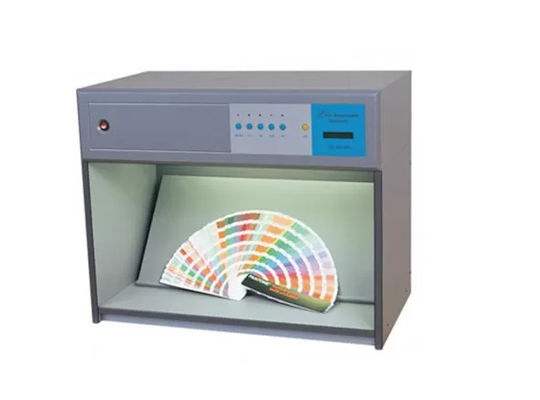

The Color matching cabinet / Color assessment cabinet / Color Light Box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
Standard:
ISO3364 / ASTMD1729 / DIN / BSI / ANSI CIE
Technical Parameters:
| Light Source | Color viewing booths application | Color Temperature (k) | Power (W) |
|---|---|---|---|
| D65 | International standard Artificial Daylight | 6500 | 18 |
| TL84 | Applied to stores in Europe, Japan and China | 4000 | 18 |
| CWF | (Cool White Fluorescent)American Standard | 4150 | 18 |
| F/A | "Sun-setting Light Yellow" incandescent light source (imitation of sunset) | 2700 | 40 |
| UV | Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments | Wavelength: 365nm | 20 |
| U30 | Warm White Fluorescent, American Standard | 3000 | 18 |
Specifications:
Dimension: 710*420*570 mm(L*W*H)
Weight: 28Kg
Power: 220V/110V
Accessories:
D65:international standard artificial daylight 2 pcs 18W,6500K
TL84:Applied to stores in Europe, Japan and China 2pcs 18W,6500K
UV: ultraviolet light 1pcs 18W
F:Sun-setting light ,colorimetric reference light 4pcs 40W 2700K
Optional purchase consumables: Other customer specified light sources, diffusion plate, 45 degrees standard stands
Features:
•Equipped ith 4 different light sources(D65, TL84, F, UV), which can detect the metamerism.
•Meets or exceeds major international standards for visual color evaluation
•Easy to operate by using individual switches for each light source.
•Elapsed time meter for tracking optimal lamp replacement.
•Automatically alternating among light sources.
•No warm-up time or flickering which insures quick and reliable color judgment.
Economic power consumption and low heat generation for high light efficiency.
•The dimension can be made by customized.
Service and Support
Our company focuses on research and development , we were produced some intelligent testing equipments over thirteen years, we continue to provide stable performance, high-quality equipment for product quality testing industry.At present, the company has 14 utility model patent technologies,2 patents for invention and participated in the drafting and formulation of nine national standards.
In cooperation we has a variety of testing units, industries, association partners and friends, accumulated a large number of detection industry insights and contacts, for those friends who just come into testing industry, we can learn from each other to communicate, explore the problems and difficulties encountered in testing.
