UP-2000 Microcomputer Single Column Compression Testing Machine Compliant With ASTM D695 ISO 604
The UP-2000 Microcomputer Single Column Compression Testing Machine is a mechanical testing equipment that integrates mechanical transmission, electronic measurement, and intelligent control. It is primarily used for testing the compressive mechanical properties of materials and complies with ASTM D695, ISO 604, and other international standards.
Product Introduction
This microcomputer-controlled single column compression testing machine features a floor-standing structure with a compact design, easy operation, and precise testing capabilities. The equipment belongs to the "single column electronic universal testing machine" series and can perform various tests including tension, compression, bending, peeling, and tearing by changing fixtures.
Applications
Ideal for compression testing of small materials with maximum loads typically within 0-5kN range. Perfect for compressive strength testing of packaging materials, foam plastics, rubber products, electronic components, and other similar products.
Compliance Standards
ASTM D695, ASTM D3574, ISO 604, ISO 7743, GB/T 1041, TAPPI T804, GB/T 7757, GB/T 8813 and related standards.
Technical Specifications
| Specification |
Details |
| Load Cell (Capacity) |
5 kg, 10 kg, 20 kg, 50 kg, 100 kg, 200 kg, 500 kg (select one) |
| Force Resolution |
1/300,000 |
| Force Accuracy |
≤0.5% |
| Displacement Resolution |
1/1000 mm |
| Displacement Accuracy |
≤0.1% |
| Metal Extensometer Resolution |
1/1000 (subject to separate agreement) |
| Metal Extensometer Accuracy |
≤0.5% |
| Large Strain Extensometer Accuracy |
±0.01 mm (subject to separate agreement) |
| Speed Range |
50 ~ 500 mm/min (custom speeds available upon request) |
| Travel Range (Stroke) |
1000 mm (excluding fixtures; custom range available upon request) |
| Test Width |
400 mm (custom width available upon request) |
| System Language |
Switchable between Chinese and English |
| Power Supply |
220V, 50Hz |
| Power Rating |
Approx. 1000W |
| Machine Dimensions (L × W × H) |
Approx. 500 × 500 × 1300 mm |
| Machine Weight |
Approx. 100 kg |

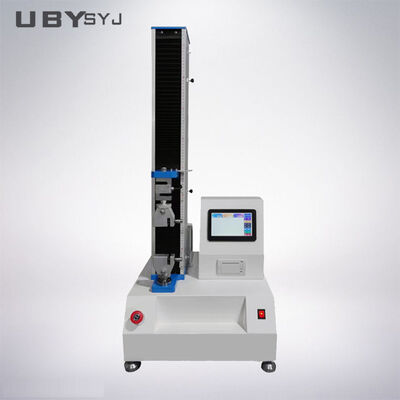

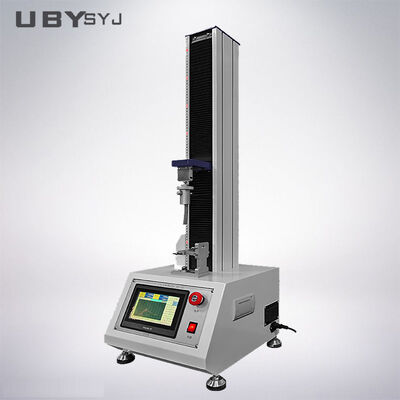

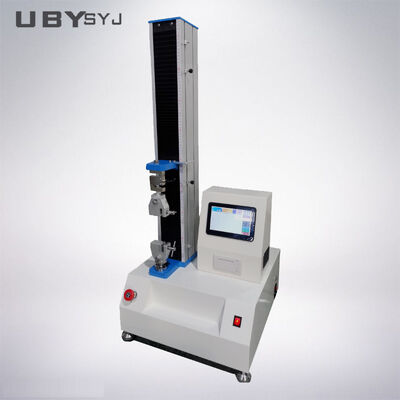

Product Images
Our Service Process
- Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide pricing
- Customization: Create drawings for custom requirements, provide reference photos, and confirm final solution
- Production & Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and arrange shipping
- Installation & Support: Provide installation services and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment with free maintenance. We extend an additional 2 months consideration for sea transportation. For technical issues, contact us via email or phone for support within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days; Custom orders: 15-20 working days after payment; Urgent orders receive special arrangement.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.
How can I install and use the machine?
We provide English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin use. On-site installation assistance is available when necessary.
