Product Details:
Payment & Shipping Terms:
|
| Power: | Electronic | Product Name: | Lab Testing Equipment |
|---|---|---|---|
| Model Name: | HTF-008 | Standard: | ASTM D3514; ASTM D3885; ASTM D3886; AATCC 119120; FTMS 191530; FTMS 0530; FORD EFB 15 J2 / BN 112-01. |
| Dimensions: | 480*360*715 Cm | Weight: | 42.5kg |
| High Light: | laboratory testing instrument,lab test machine |
||

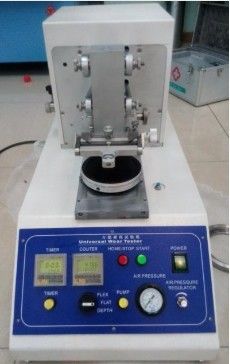

Electronic Lab Testing Equipment , Professional Universal Abrasion Testing Machine
Description:
Universal abrasion and wear tester determines the wear and abrasion resistance of fabrics. The tester is used in clothing, footwear and textile industries. It is supplied with surface abrasion head (inflated diaphragm method) and flex abrasion head as well as necessary weights and initial supply of abrasions. And it is fitted with built-in timer and mechanical cycle counter.
Advantages:
1. Speciality in testing equipment
2. Various products to choose from
3. Accept customization
4. Excellent after-sale service
Specification:
| Speed | 115±10 rpm |
| Stroke | 25±2 mm |
| Test Environment | Relative Humidity: 65%±2;Relative humidity: 20 ±2 degrees |
| Specimen diameter | 112mm diameter |
| Sandpaper hole diameter | 3.2 mm |
| The next fixture base itinerary | 30 mm |
| Dimension | 480*360*715 cm |
| Weights | 42.5kg |
| Power | 220V 50Hz |
Accessories:
General wear tester 1 set.
Tension weight 10 pcs.
Pressure weight 10 pcs.
Deflection test fixture 1 set.
Flat test fixture 1 pcs.
Depth rubbing test fixture 1 pcs.
Power line 1 pcs.
Folding test fixture 1 pcs.
Metal mesh test fixture 1 pcs.
Standard emery paper 1 pcs.
Optional consumable:
ASTMD3514 drawing card.
ASTM D3514 metal friction.
