Ink Printing Proofer with Adjustable Printing Speed, Customizable Proofing Width, and Optional Silicone/Rubber Roller for Ink Color Matching

1 Unit
MOQ
Negotiable
Price
Ink Printing Proofer with Adjustable Printing Speed, Customizable Proofing Width, and Optional Silicone/Rubber Roller for Ink Color Matching
Features Gallery Product Description Chat Now
Features
Specifications
Printing Speed: 20 30 40 45 M/min (Adjustable)
Proofing Width: 180mm (customizable)
Roller Material: Silicone / Rubber (optional)
Power Supply: AC220V 50Hz, 150W
Model NO.: UP-6014
Metal Roller Specification: Φ 60 * 130mm
Highlight:

Adjustable Printing Speed Ink Printing Proofer

,

Customizable Proofing Width Printing Ink Proofing Machine

,

Optional Silicone/Rubber Roller Ink Printability Tester

Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6014
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal
Supply Ability: 30 Unit/month
Product Description
Printing Ink Proofing Machine Ink Printability Tester for Ink Color Matching Drawdown Test UP-6014
Product Overview

Ink Printing Proofer (Printing Ink Proofing Machine) is a laboratory test instrument for printing ink color matching and printability evaluation. It simulates the real printing process to produce uniform ink proof samples. Operators can test ink color, gloss, hiding power, leveling property and transfer performance conveniently. With adjustable speed and pressure control, it delivers stable and repeatable test results for R&D and quality inspection of printing inks.

Technical Specifications
Item Specification
Product Name Ink Printing Proofer
Printing Speed 20 30 40 45 m/min (Adjustable)
Printing Pressure Adjustable pressure via handwheel
Test Substrate Paper, PET, BOPP, aluminum foil, plastic film
Proofing Width 180mm (customizable)
Metal roller specification Φ 60 * 130mm
Roller Material Silicone / Rubber (optional)
Power Supply AC220V 50Hz, 150W
Dimension 520×320×380 mm
Net Weight 32kg
Product Images

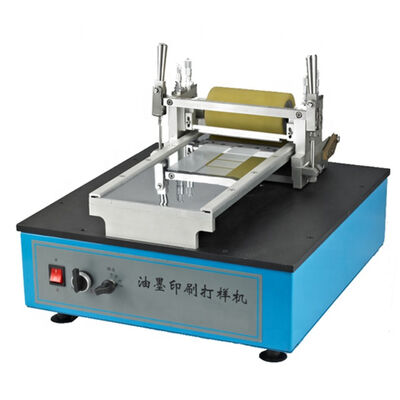

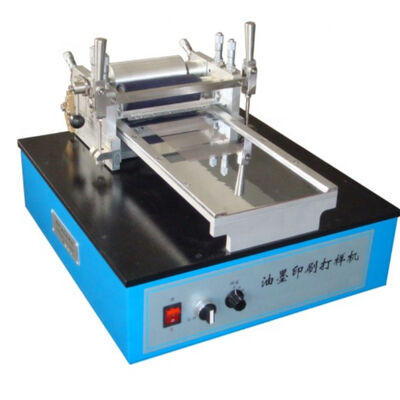

UP-6014 Printing Ink Proofing Machine front view UP-6014 Printing Ink Proofing Machine side view UP-6014 Printing Ink Proofing Machine operational view
Our Service

During the whole business process, we offer Consultative Selling services.

Customer Inquiry Process

Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

Specifications Customize Process

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

Production and Delivery Process

We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.

Installation and After-Sale Service

Defines installing those products in the field and providing after-sales support.

Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers.

Moreover, if your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

What about the delivery term?

For our standard machine which means normal machines, if we have stock in the warehouse, is 3-7 working days; if there is no stock, normally, the delivery time is 15-20 working days after payment is received; if you are in urgent need, we will make a special arrangement for you.

Do you accept customization services? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

How can I install and use the machine?

Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
