Ink Printing Proofer with Adjustable Printing Speed, Customizable Proofing Width, and Optional Silicone/Rubber Roller for Laboratory Testing

1 Unit
MOQ
Negotiable
Price
Ink Printing Proofer with Adjustable Printing Speed, Customizable Proofing Width, and Optional Silicone/Rubber Roller for Laboratory Testing
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-6014
Printing Speed: 20 30 40 45 M/min (Adjustable)
Proofing Width: 180mm (customizable)
Metal Roller Specification: Φ 60 * 130mm
Roller Material: Silicone / Rubber (optional)
Power Supply: AC220V 50Hz, 150W
Highlight:

Adjustable Printing Speed Ink Printing Proofer

,

Customizable Proofing Width Printing Ink Proofing Machine

,

Optional Silicone/Rubber Roller Laboratory Test Instrument

Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6014
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal
Supply Ability: 30 Unit/month
Product Description
Ink Printing Proofer, Laboratory Printing Ink Proofing Machine for Gravure Flexo Ink Printability Test UP-6014
Product Overview

The Ink Printing Proofer (Printing Ink Proofing Machine) is a laboratory test instrument designed for printing ink color matching and printability evaluation. It simulates real printing processes to produce uniform ink proof samples, enabling operators to conveniently test ink color, gloss, hiding power, leveling property, and transfer performance.

With adjustable speed and pressure control, this machine delivers stable and repeatable test results, making it ideal for R&D and quality inspection of printing inks.

Technical Specifications
Item Specification
Product Name Ink Printing Proofer
Printing Speed 20, 30, 40, 45 m/min (Adjustable)
Printing Pressure Adjustable pressure via handwheel
Test Substrate Paper, PET, BOPP, aluminum foil, plastic film
Proofing Width 180mm (customizable)
Metal roller specification Φ 60 * 130mm
Roller Material Silicone / Rubber (optional)
Power Supply AC220V 50Hz, 150W
Dimension 520×320×380 mm
Net Weight 32kg
Product Images

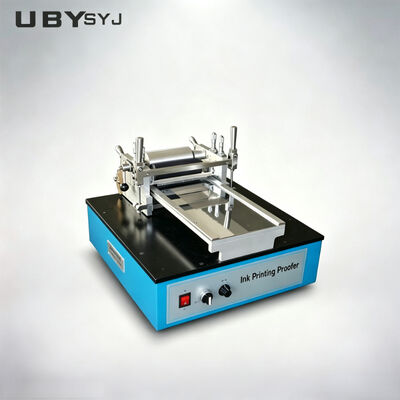

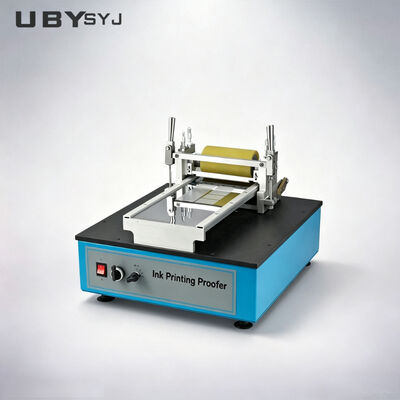

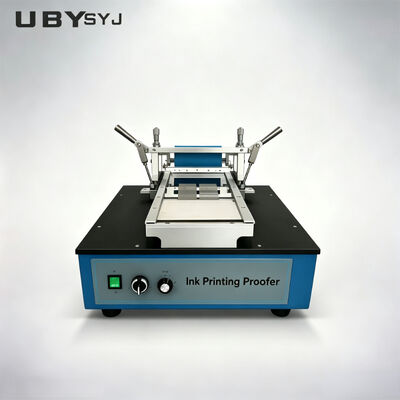

Ink Printing Proofer UP-6014 front view Ink Printing Proofer UP-6014 side view Ink Printing Proofer UP-6014 close-up detail
Our Service

Throughout the entire business process, we offer comprehensive Consultative Selling services:

1) Customer Inquiry Process

We discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer specifications.

2) Specifications Customization Process

We create detailed drawings for customized requirements, provide reference photos showing product appearance, and confirm final solutions and pricing.

3) Production and Delivery Process

Machines are manufactured according to confirmed PO requirements. We provide production progress photos, conduct factory or third-party calibration, perform comprehensive testing, and ensure timely delivery.

4) Installation and After-Sales Service

We provide field installation services and comprehensive after-sales support to ensure optimal performance.

Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer 12 months of FREE maintenance, with an additional 2-month extension to account for sea transportation.

If your machine experiences issues, you can contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.

2. What about the delivery term?

For standard machines in stock: 3-7 working days. For machines not in stock: 15-20 working days after payment receipt. We accommodate urgent requirements with special arrangements.

3. Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.

4. How can I install and use the machine?

Upon ordering, we provide English operation manuals and videos via email. Most machines are shipped fully assembled - you simply connect the power cable and begin operation. When necessary, we provide on-site installation assistance.
