UP-6195 Environmental Test Chamber with ±1.0°C, ±2% RH Accuracy and SUS304 Stainless Steel Interior Featuring Programmable LCD Touch Screen

1 Unit
MOQ
Negotiable
Price
UP-6195 Environmental Test Chamber with ±1.0°C, ±2% RH Accuracy and SUS304 Stainless Steel Interior Featuring Programmable LCD Touch Screen
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Constant Temperatrue And Humidity Chamber
HS Code: 8479899990
Model NO.: UP-6195
Temperature Range: -70~180ºC
Humidity Range: 20%~98%
Custom Service: OEM,ODM
Accuracy: ±1.0°C, ±2% RH
Resolution: / ±1°C, ±3% RH
Warranty: 1 Year
Additional Service: Support Customer Customization
Highlight:

±1.0°C

,

±2% RH Accuracy Environmental Test Chamber

,

SUS304 Stainless Steel Interior Constant Temperature Humidity Chamber

,

Programmable LCD Touch Screen Climate Test Chamber
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6195
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal
Supply Ability: 30 Unit/month
Product Description
UP-6195 Versatile Temperature Humidity Environmental Test Chamber
Compliant With International Standard
Product Introduction
Programmable Constant Temperature & Humidity Test Chamber simulates high/low temperature, damp-heat alternating climate environment to test product reliability, aging resistance and environmental adaptability. Widely adopted in electronic, automotive, battery, plastic and hardware industries for reliability validation.
Adopts imported compressor, SUS304 stainless steel inner tank and intelligent 7-inch bilingual touch controller, with complete overheat, overpressure, water shortage safety interlock protection system.
Design Standards
GB2423/T5170/10586/10592, IEC60068-2, GJB150, JIS C60068, ASTM D4714, CNS3625/12565/12566
Specifications
Capacity (L) 80, 150, 225, 408, 500, 800, 1000L (Optional or customizable)
Control Method Balanced Temperature and Humidity Control System (BTHC) PID intelligent adjustment
Temperature & Humidity Range -70°C ~ 150°C; 20% ~ 98% R.H.
Accuracy ±1.0°C, ±2% RH / ±0.5°C, ±2% RH
Resolution ±0.1°C, ±0.1% RH / ±1°C, ±3% RH
Heating Rate ≤3°C/min
Cooling Rate Average 1°C/min
Interior Material SUS #304 Stainless Steel
Exterior Material SUS #304 Stainless Steel or Rust-proofed Cold-rolled Steel Plate (spray painted)
Insulation Material Fine Wool + Polyurethane Foam
Cooling Method Mechanical binary refrigeration method
Compressor Hermetic Compressor (Tecumseh France or Copeland Germany)
Refrigerant R23 / R404A
Condensation Method Air-cooled and Water-cooled
Humidifier Stainless steel humidification tube
Airflow Method Wide-band forced air circulation

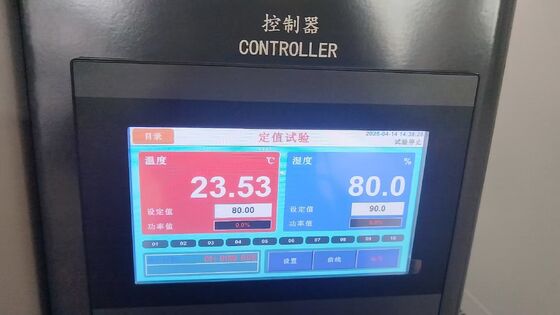

Operation Interface TEMI 880 liquid crystal touch screen
Memory Capacity 120 programs, 100 segments per program
Input PT100 or Thermocouple
Communication Interface RS-232
Auxiliary Functions Upper/lower alarm; Self-diagnosis; Alarm display (fault reason); Sequential protection (auto on or off)
Water Supply Method Circulating water supply
Water Tank Built-in hand type (30 kg capacity)
Water Quality Resistivity > 500 Ω*m
Standard Configuration One observation window (double-layer hollow tempered glass); One test pattern D50mm (left side); 2 layers of sample racks; One fluorescent lamp; One water supply tank
Safety Devices Leakage protection; Dry heat protection; Water protection overheat protection switch; Temperature deviation alarm; Compressor overpressure; Overload; Water shortage; Short circuit alarm, etc.
Power Supply 220V AC 10% 50/60 Hz and 380V AC 10% 50/60 Hz

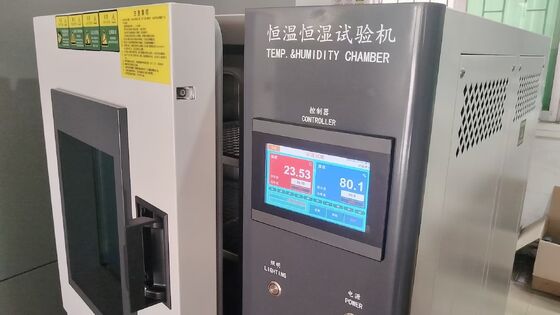

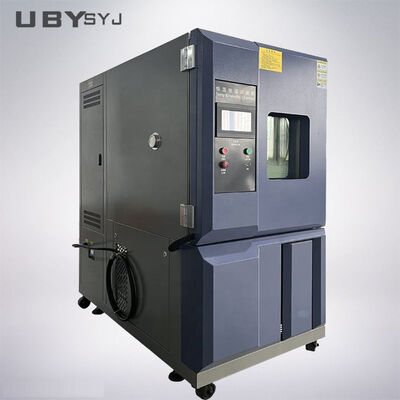

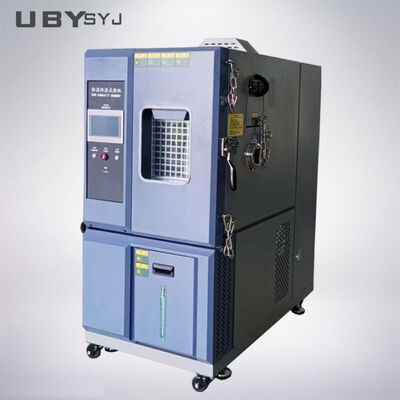

UP-6195 Temperature Humidity Environmental Test Chamber front view UP-6195 Temperature Humidity Environmental Test Chamber interior view
Our Service
During the whole business process, we offer Consultative Selling services.
  • Customer inquiry process: Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
  • Specifications customize process: Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
  • Production and delivery process: We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.
  • Installation and after-sale service: Defines installing those products in the field and providing after-sales support.
Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers.
Moreover, if your machine doesn't work, you can send us an e-mail or call us. We will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, if we have stock in the warehouse, delivery time is 3-7 working days. If there is no stock, normally, the delivery time is 15-20 working days after payment is received. If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machines are shipped as complete units, which means they are already installed. You just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
