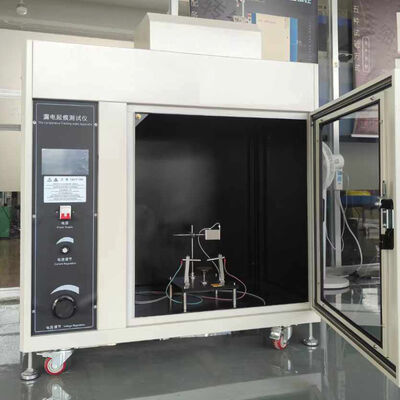

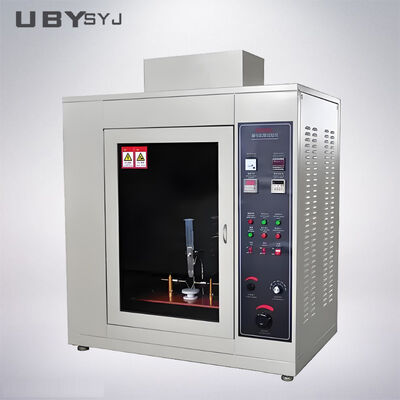

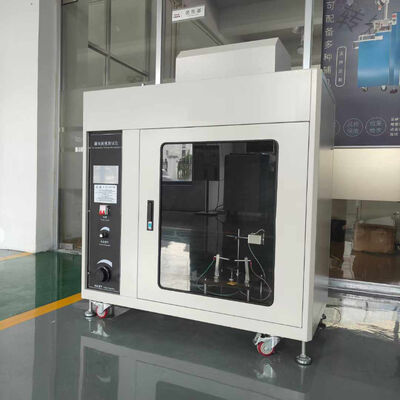

UP-5033 IEC 60112 Leakage Tracking Tester for CTI PTI Insulation Material Test
Leakage Tracking Tester simulates humid/damp conditions and tests the Tracking Index (CTI) and Reverse Tracking Index (PTI). Solid insulation material used for electrical and electronic products, household appliances, and other products.
Under the influence of humidity and impurities, different live parts, live parts, and grounded metal parts of electrical products may cause insulation leakage, and the generated arc may lead to breakdown, short circuit, or discharge, resulting in material corrosion or even fire. This testing instrument can perform destructive testing on insulation materials by simulating the above conditions to test and evaluate the relative tracking resistance of insulators under the action of an electric field and the presence of impurities in water at a specified voltage.
Applications
Leakage tracking tester is suitable for research, production, and quality inspection departments of lighting equipment, low-voltage electrical appliances, household appliances, machine tools, electrical machinery, electric tools, electronic instruments, electrical instruments, information technology equipment, as well as insulation materials, engineering plastics, electrical connectors, and accessories industries.
Specifications
| Item |
Specification |
| Product Name |
Tracking Index Tester (CTI / PTI Tester) |
| Electrode Material |
Platinum / Stainless Steel |
| Electrode Dimensions |
(2mm±0.1mm) × (5mm±0.1mm) × (40mm±5mm); Platinum tip: 12mm, 30° angle, 2 pcs |
| Electrode Force |
1.00 N ± 0.01 N |
| Test Solution Resistivity |
Solution A: 0.1% NH₄Cl, 3.95 ± 0.05 Ω*m
Solution B: 1.98 ± 0.05 Ω*m |
| Drop Volume |
20 drops: 0.380 - 0.480 g
50 drops: 0.997 - 1.147 g (adjustable) |
| Drop Height |
35 mm ± 5 mm (adjustable) |
| Drop Interval |
30 s ± 10.1 s, digital display, preset
50 drops time: 24.5 min ± 2 min |
| Drop Count |
1 - 9999, digital display, preset |
| Compliance Standards |
IEC 60112:2003, UL 746A, ASTM D 3638-92, DIN 53480, GB 4706.1, GB 4207 |
Our Service
During the whole business process, we offer Consultative Selling services.
Customer Inquiry Process
Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
Specifications Customize Process
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
Production and Delivery Process
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.
Installation and After-Sale Service
Defines installing those products in the field and providing after-sales support.
Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers.
Moreover, if your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, if we have stock in the warehouse, is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
