Automatic Vicat Softening Temperature Tester with 4 Test Stations and ±0.5℃ Temperature Accuracy for Plastic Heat Resistance Testing

1
MOQ
Negotiable
Price
Automatic Vicat Softening Temperature Tester with 4 Test Stations and ±0.5℃ Temperature Accuracy for Plastic Heat Resistance Testing
Features Gallery Product Description Chat Now
Features
Specifications
Model: UP-5010
Temperature Range: Room Temperature -300℃
Test Station: 4 Stations (Customizable 2/6 Stations)
Heating Medium: Silicone Oil
Heating Rate: 50℃/h, 120℃/h (two Standard Rates)
Vicat Load Options: 10N, 50N
Penetration Depth: 1 Mm
Temperature Accuracy: ±0.5℃
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-5010
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
UP-5010 Automatic Vicat Softening Temperature Test Equipment for Plastic Heat Resistance Testing

The Vicat Softening Point Tester is designed to determine the Vicat softening temperature of thermoplastic materials. Under specified constant heating rate and load conditions, it measures the temperature at which a flat-ended needle penetrates 1 mm into the sample. This equipment reflects the heat resistance performance of plastics and features precise temperature control with stable performance, serving as essential testing apparatus for plastic formulation research, raw material incoming inspection, and finished product quality control.

Standards Compliance
  • ISO 306
  • ASTM D1525
  • GB/T 1633
Applications

Suitable for laboratories, plastic raw material manufacturers, plastic molding factories, new material R&D institutions, quality inspection centers, chemical enterprises, automotive plastic parts, electrical plastic component factories, and third-party testing laboratories.

Technical Specifications
Parameter Specification
Temperature range Room Temperature - 300ºC
Maximum temperature indication error 0.1ºC
Temperature indication precision ±0.5ºC
Maximum deformation indication error ±0.001mm
Deformation measurement range 0-10mm
Sample holder number 3 sets
Weight of load bar and tray 68g
Test span range According to Standard (64 or 100mm)
Heating medium Methyl silicone oil or transformer oil (The conventional flash point is 260ºC, the high temperature type needs to be provided by the customer)
Cooling method More than 150ºC (natural cooling)
Less than 150ºC (water or natural cooling)
Heating power 3kW
Supply voltage 220V, 50Hz

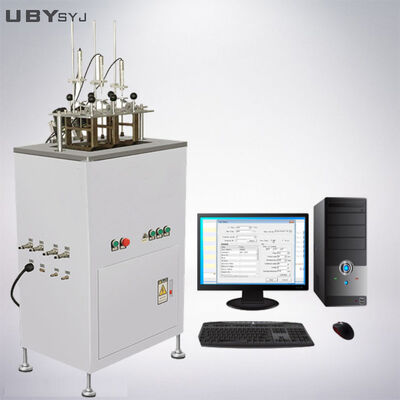

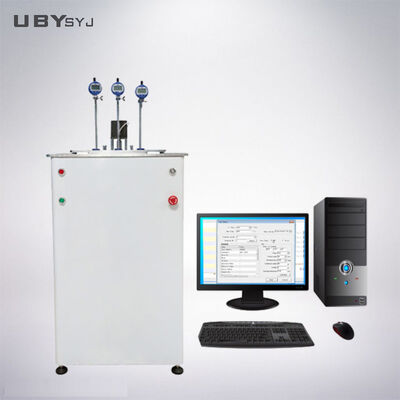

UP-5010 Automatic Vicat Softening Temperature Test Equipment front view UP-5010 Automatic Vicat Softening Temperature Test Equipment side view
Our Service Commitment

During the entire business process, we offer consultative selling services:

Customer Inquiry Process
  • Discuss testing requirements and technical details
  • Suggest suitable products for customer confirmation
  • Provide competitive pricing based on customer requirements
Specifications Customization Process
  • Create related drawings for customized requirements
  • Provide reference photos showing product appearance
  • Confirm final solution and pricing
Production and Delivery Process
  • Manufacture machines according to confirmed PO requirements
  • Provide production progress photos
  • Conduct factory calibration or third-party calibration
  • Complete quality testing and arrange packing
  • Deliver products within confirmed shipping timeframe
Installation and After-Sales Service

Professional installation services and comprehensive after-sales support.

Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. Generally, we offer 12 months for FREE maintenance, while considering sea transportation, we can extend 2 months for our customers.

If your machine doesn't work, you can send us an e-mail or call us. We will try our best to identify the problem through conversation or video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

What about the delivery term?

For standard machines with stock available: 3-7 working days. For machines without stock: normally 15-20 working days after payment is received. If you are in urgent need, we will make special arrangements for you.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services and can place your logo on the machine.

How can I install and use the machine?

Once you have ordered testing machines from us, we will send you the operation manual or video in English version through email. Most of our machines are shipped as complete units, meaning they are already installed. You just need to connect the power cable and start using it. If necessary, we can also assist you with on-site installation.
