UP-5019 PLC Control Glow Wire Test Apparatus IEC60695‑2‑10 Compliant with 500℃ ~ 1000℃ Temperature Range

1
MOQ
Negotiable
Price
UP-5019 PLC Control Glow Wire Test Apparatus IEC60695‑2‑10 Compliant with 500℃ ~ 1000℃ Temperature Range
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-5019
Service Support: OEM ODM
Language: Chinese And English
Temperature Range: 500℃ ~ 1000℃ Continuously Adjustable
Temperature Accuracy: ±2℃
Temperature Fluctuation: ≤3℃
Specimen Contact Pressure: 1.0 N ±0.2 N
Test Time Setting: 0999.9 s, Resolution ±0.1 s; Standard Test 30 s
Highlight:

PLC Control Glow Wire Test Apparatus

,

IEC60695‑2‑10 Compliant Glow Wire Test Equipment

,

500℃ ~ 1000℃ Temperature Range Glow Wire Flammability Test Chamber
Basic Infomation
Payment & Shipping Terms
Packaging Details: Professional export packing
Delivery Time: 5-10work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
UP-5019 Glow Wire Test Apparatus PLC Control IEC60695‑2‑10, Glow Wire Test Equipment
Product Overview

Glow Wire Flammability Test Chamber complies with IEC 60695-2-10 standards. It evaluates fire hazard risk of plastic and insulating materials by glow wire heating, and tests GWFI and GWIT for electronics, household appliances and electrical components.

Compliance Standards
  • IEC 60695-2-10, IEC 60695-2-11, IEC 60695-2-12, IEC 60695-2-13
  • GB/T 5169.10, GB/T 5169.11, GB/T 5169.12, GB/T 5169.13
  • UL 746A, VDE 0471-1, IEC 60335-1
Technical Specifications
Controller Touch screen controller | Button controller
Glow Wire Diameter 4mm±0.04mm Ni/Cr (80/20), standard
Temperature Range 500-1000°C ±2°C continuously adjustable
Thermocouple Diameter 0.5mm Type K (Ni/Cr - Ni/Al), armored sheath can withstand temperature -40~1100°C
Searing Time 30s±0.1s (OMRON H5CN-XAN-Z digital timer, 0-9999s, presettable)
Light-off Time 0-999.9 s ± 0.1 s, automatic recording, manual timeout
Fireout Time 0-999.9 s ± 0.1 s, automatic recording, manual timeout
Ironing Depth 7mm ± 0.5 mm
Sample Pressure 1N ± 0.2 N
Test Speed 18±3mm/s
Test Background Black background
Test Process Automatic control, independent convulsions
Chamber ≥0.5m
Size W1100mm×D700mm×H1300mm, exhaust hole Ø100mm (customizable)
Control Using single chip microcomputer + touch screen control
Consult Standard GB/T5169.10-2006, IEC60695-2-10:2000, UL746A
Power Supply 800VA, 220V, 48-60Hz
Product Images

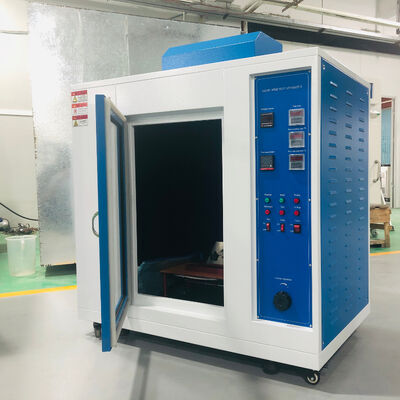

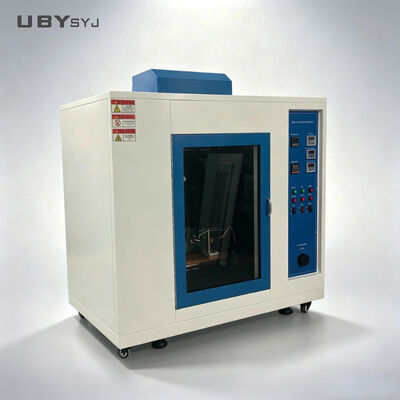

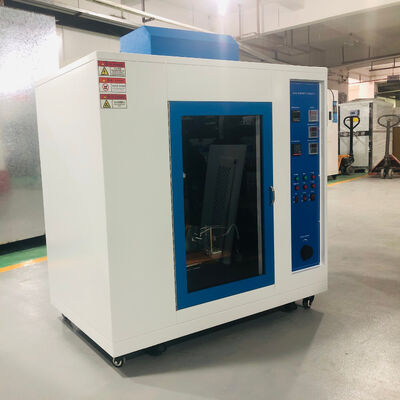

UP-5019 Glow Wire Test Apparatus internal view showing testing components Glow Wire Test Apparatus PLC Control IEC 62196 complete unit overview
Our Service Process
1. Customer Inquiry Process

Discussing testing requirements and technical details, suggesting suitable products to customer for confirmation. Then quote the most suitable price according to customer requirements.

2. Specifications Customization Process

Drawing related drawings to confirm with customer for customized requirements. Offering reference photos to show product appearance. Confirming final solution and price with customer.

3. Production and Delivery Process

Producing machines according to confirmed PO requirements. Offering photos to show production progress. After completion, providing photos for customer confirmation. Performing factory or third-party calibration as required. Final testing and packing before delivery.

4. Installation and After-Sales Service

Defining installation procedures and providing comprehensive after-sales support.

Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months for FREE maintenance, with an additional 2 months extension considering sea transportation. If your machine doesn't work, you can contact us via email or phone. We will diagnose the problem through conversation or video chat if necessary, and provide solutions within 24 to 48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment receipt. Special arrangements can be made for urgent requirements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.

How can I install and use the machine?

We provide English operation manuals and videos via email after order confirmation. Most machines are shipped fully assembled - you simply need to connect the power cable to begin use. On-site installation assistance is available when necessary.
