High-precision load cell COF Testing Machine with stepper motor driving system and 7-inch touch screen for friction testing

1
MOQ
Negotiable
Price
High-precision load cell COF Testing Machine with stepper motor driving system and 7-inch touch screen for friction testing
Features Gallery Product Description Chat Now
Features
Specifications
Effective Stroke: 300mm
Service Support: OEM ODM
Model NO.: UP-5017
Test Speed: 0.05～500 Mm/min (stepless Adjustable)
Sled Standard Weight: 200 G (Optional: 500 G, 1000 G)
Language: Chinese And English
Force Sensor Range: 0~5n
Applications: PC, PE, PP, Pet, PPS, PVC, PA, Etc.
Highlight:

High-precision load cell COF Testing Machine

,

Stepper motor driving system Coefficient of Friction Tester

,

7-inch touch screen Friction Testing Equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-5017
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5-10work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 30 Unit/month
Product Description
UP-5017 Coefficient of Friction Tester COF Testing Machine for Flexible Packaging Film Rubber Sheet
Product Introduction

The Coefficient of Friction Tester (COF Tester) is precision laboratory testing equipment designed to measure static coefficient of friction and kinetic coefficient of friction of flat material surfaces.

Equipped with high-precision load cell and stepper motor driving system, the 7-inch touch screen supports real-time friction curve display. The instrument automatically calculates, stores test data and supports report printing. One complete testing cycle obtains both static and kinetic COF values. Features stable operation and low testing error. Widely used for incoming quality inspection, production QC and material research laboratories.

Main Features
  • Stainless steel test platform to reduce testing deviation
  • High-speed data sampling to capture accurate static friction peak value
  • Multi-language touch screen interface
  • Built-in thermal printer for on-site test report output
  • Overload protection and emergency stop function
  • Support PC data connection, data export and curve analysis
  • Optional customized sleds and fixtures
Compliance Standards

ASTM D1894 (Static & Kinetic Coefficient of Friction for Plastic Film & Sheeting)
ISO 8295 (Plastics -- Film and sheeting -- Determination of coefficients of friction)
TAPPI T816 (Friction Coefficient of Paper & Paperboard)
GB/T 10006

Technical Specifications
Item Specification
Test Object Static & Kinetic Coefficient of Friction
Force Sensor Range 0~5 N
Measurement Accuracy ±0.5% FS
Test Speed 0.05～500 mm/min (stepless adjustable)
Standard Test Speed 100 mm/min (ISO), 150 mm/min (ASTM)
Sled Standard Weight 200 g (Optional: 500 g, 1000 g)
Sled Dimension 63.5 mm × 63.5 mm
Effective Stroke 300 mm
Display 7-inch LCD Touch Screen, real-time curve
Data Function Data storage, statistics, curve display, support PC software connection
Output Interface RS232 / USB, support external micro printer
Power Supply AC 220V 50Hz (110V 60Hz Optional)
Overall Dimension 540 × 380 × 240 mm
Net Weight 22 kg
Product Images

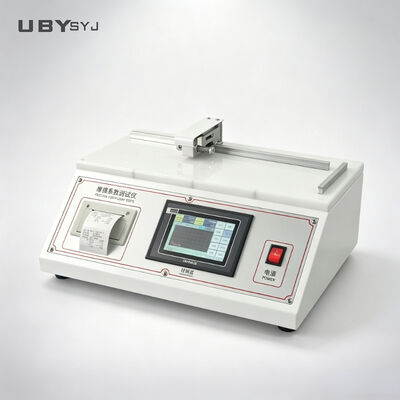

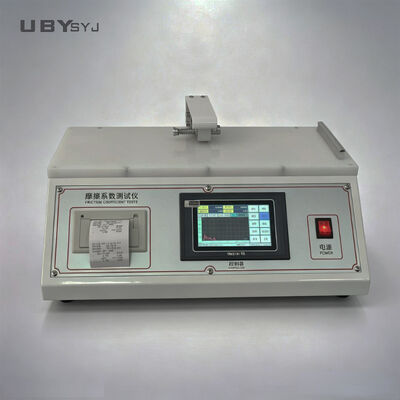

UP-5017 Coefficient of Friction Tester front view UP-5017 Coefficient of Friction Tester close-up view UP-5017 Coefficient of Friction Tester operation view
Our Service

During the whole business process, we offer Consultative Selling services:

  1. Customer inquiry process: Discussing testing requirements and technical details, suggesting suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
  2. Specifications customize process: Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Confirm the final solution and price with the customer.
  3. Production and delivery process: Produce machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again. Perform factory calibration or third-party calibration as per customer requirements.
  4. Installation and after-sale service: Define installation procedures and provide comprehensive after-sales support.
Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers.

If your machine doesn't work, you can send us an e-mail or call us. We will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines:
- If we have stock in the warehouse: 3-7 working days
- If there is no stock: normally 15-20 working days after payment is received
- If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.

Most of our machines are shipped as complete units, which means they are already installed. You just need to connect the power cable and start using it. If necessary, we can also assist you to install your machine on-site.
