Home /Products/Rubber Testing Equipment/UP-5018 ASTM F2024 Heat Seal Tester with 0~0.7MPa Pressure and Room Temperature ~300ºC Range for Flexible Packaging Film

UP-5018 ASTM F2024 Heat Seal Tester with 0~0.7MPa Pressure and Room Temperature ~300ºC Range for Flexible Packaging Film

1 Unit
MOQ
Negotiable
Price
UP-5018 ASTM F2024 Heat Seal Tester with 0~0.7MPa Pressure and Room Temperature ~300ºC Range for Flexible Packaging Film
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-5018
Heat Sealing Pressure: 0~0.7MPa
Language: Chinese And English
Service Support: OEM ODM
Applications: Plastic Film Substrate, Flexible Packaging Etc.
Heat Sealing Temperature: Room Temperature ~300ºC
Name: Rubber Testing Equipment
Sealing Time: 0.1～99.9 S Adjustable
Highlight:

ASTM F2024 Compliant Heat Seal Tester

,

0~0.7MPa Heat Seal Tester

,

Room Temperature ~300ºC Heat-seal Strength Tester
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-5018
Payment & Shipping Terms
Packaging Details: Professional Export Packing
Delivery Time: 5-10 work days
Payment Terms: D/P,T/T,Paypal,Western Union,Money Gram
Supply Ability: 20 Unit/monty
Product Description
UP-5018 ASTM F2024 Heat Seal Tester
Heat-seal Strength Tester for Flexible Packaging Film

The Heat Seal Tester (also known as laboratory heat sealing instrument) is a laboratory testing instrument used to determine the heat sealing performance of flexible packaging materials. It simulates the industrial heat sealing process in a laboratory environment by precisely controlling three key parameters: temperature, pressure, and time, helping R&D and quality control departments evaluate material heat sealing adaptability before mass production.

This device is essential for industries where packaging integrity is crucial, such as food packaging, and effectively prevents product contamination, deterioration, or leakage caused by seal failure.

Product Features
  • Digital display control system with fully automated operation
  • Digital P.I.D. temperature control with high accuracy
  • Aluminum alloy hot sealing knives for fast, uniform temperature conduction
  • Customized special mold heating tubes for rapid heating and long life
  • Double cylinder structure with adjustable pressure balance mechanism
  • High precision pneumatic control components from international brands
  • Anti-hot design and leakage protection for safer operation
  • Carefully designed heating elements for extended equipment life
  • Automatic and manual working modes for efficient operation
  • Ergonomically optimized operation panel for convenience
  • Dual cooling fans for large air volume, uniform, and fast heat dissipation
Technical Specifications
Model UP-5018
Supply Voltage AC220V 50HZ
Heat Seal Temperature Room temperature +10ºC~250ºC
Temperature Control Accuracy ±1ºC
Heat Seal Pressure Adjustable range from 0 to 0.7Mpa
Heat Sealing Time 0.01~99.99s range
Hot Sealing Surface 300mm×10mm (other sizes customizable)
Heating Method Single or double heating; Both upper and lower sealing knives can be switched separately and temperature controlled separately
Test Mode Manual mode/Automatic mode (Manual mode controlled by foot switch, automatic mode controlled by adjustable delay relay)
Air Source Pressure ≤0.7MPa (user-supplied)
Test Condition Standard laboratory environment
Main Unit Size 550×330×460mm (L×B×H)
Net Weight Approximately 30 kg
Compliance Standards QB/T 2358, ASTM F2029, YBB 00122003, etc.
Standard Configuration Host + foot switch + air supply cable + power cable + technical document
Product Images

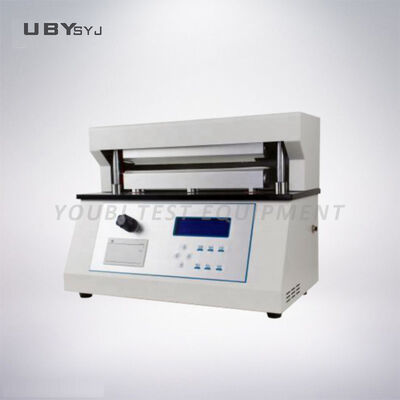

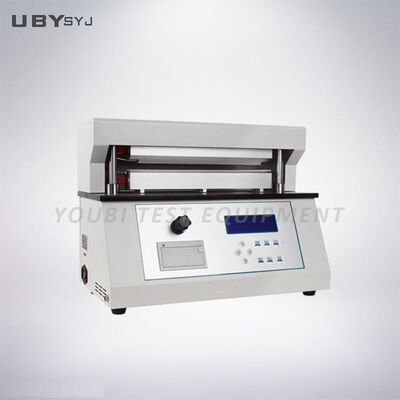

UP-5018 Heat Seal Tester front view UP-5018 Heat Seal Tester side view
Our Service

During the entire business process, we offer Consultative Selling services.

  • Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Specifications Customization Process: Create drawings for customized requirements, provide reference photos, and confirm final solutions
  • Production and Delivery Process: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and ensure timely delivery
  • Installation and After-sales Service: Provide installation support and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months of FREE maintenance, with an additional 2 months extension considering sea transportation.

If your machine doesn't work, you can contact us via email or phone. We will diagnose the problem through conversation or video chat if necessary, and provide solutions within 24 to 48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment receipt. We can make special arrangements for urgent requirements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you simply need to connect the power cable and begin operation. We also offer on-site installation assistance when necessary.
