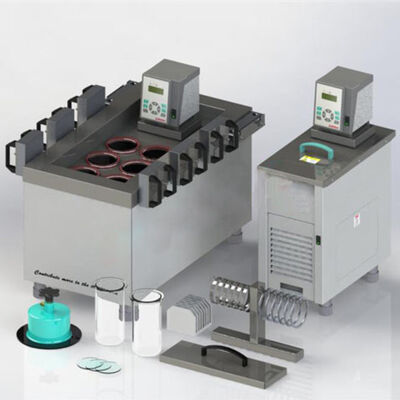

UP-4016 6-Station Automotive Fogging Tester with Gloss Haze Gravimetric Test Methods Compliant with ISO 6452 DIN 75201 SAE J1756

1
MOQ
Negotiable
Price
UP-4016 6-Station Automotive Fogging Tester with Gloss Haze Gravimetric Test Methods Compliant with ISO 6452 DIN 75201 SAE J1756
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-4016
Service Support: OEM ODM
Language: Chinese And English
Temperature Range (High-Temperature Bath): 45°C ~ 160°C (RT ~ 280°C Optional)
Temperature Range (Low-Temperature Bath): -28°C ~ 100°C
Test Stations: 6 Stations
Highlight:

automotive fogging tester with gloss haze

,

6-station fogging tester compliant ISO 6452

,

gravimetric fogging tester for automotive testing
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-4016
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
UP-4016 6-Station Automotive Fogging Tester with Gloss / Haze / Gravimetric Test Methods
Product Introduction

The Automotive Fogging Test Chamber is a specialized testing instrument designed to evaluate the fogging characteristics of volatile constituents emitted from automotive interior materials under high-temperature conditions.

Testing Principle

The specimen is heated in a beaker, causing volatile compounds to evaporate and condense on a cooled glass plate or aluminum foil. The fogging value is then determined by measuring the change in gloss, haze, or weight of the condensed substances.

Compliance Standards

ISO 6452, DIN 75201, SAE J1756, QB/T 2728, BS EN 14288, PV 3920, PV 3015, ES-X 83231, NES M0161, D45 1727, GM 9305P

Applications

This equipment is essential for automotive manufacturers and material suppliers to assess materials such as plastic articles, polyurethane, textiles, leather, adhesives, nonwovens, and thermal forming elastomers. Additionally, it can be used to test the fogging phenomenon of high-intensity discharge (HID) headlamps.

Technical Specifications
Parameter Specification
Temperature Range (High-Temperature Bath) 45°C ~ 160°C (RT ~ 280°C optional)
Temperature Range (Low-Temperature Bath) -28°C ~ 100°C
Temperature Accuracy ±0.1°C
High-Temperature Bath Power 3.0 KW
Low-Temperature Bath Power 2.0 KW
Test Stations 6 positions (allow simultaneous specimen and blank tests)
High-Temperature Bath Dimensions (W×D×H) Approx. 600 × 600 × 425 mm
Low-Temperature Bath Dimensions (W×D×H) Approx. 230 × 610 × 420 mm
High-Temperature Bath Net Weight Approx. 48 kg
Low-Temperature Bath Net Weight Approx. 28 kg
Power Supply 220V AC 50Hz / 120V AC 60Hz

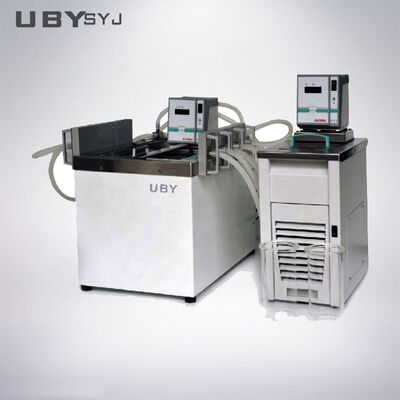

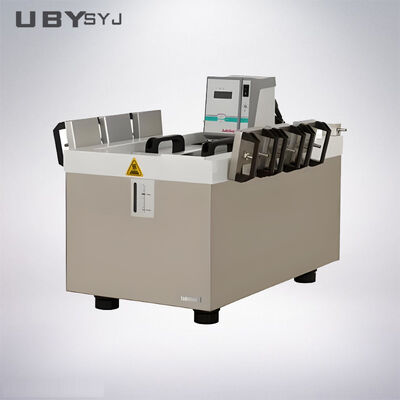

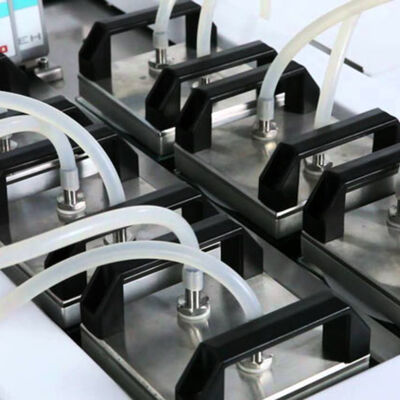

UP-4016 Automotive Fogging Tester front view UP-4016 Automotive Fogging Tester close-up view
Our Service Commitment

During the entire business process, we offer consultative selling services:

  • Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Specifications Customization: Create drawings for customized requirements, provide reference photos, and confirm final solutions
  • Production and Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and ensure timely delivery
  • Installation and Support: Provide field installation and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months of free maintenance, extended to 14 months considering sea transportation. If your machine requires service, contact us via email or phone. We will diagnose the issue and provide solutions within 24-48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days. For out-of-stock items: 15-20 working days after payment. We accommodate urgent requirements with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the equipment.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin use. When necessary, we offer on-site installation assistance.
