UP-1013 Friction Testing Machine for Dry and Wet Abrasion Test with Adjustable Load Range and Real-time Friction Coefficient Display

1
MOQ
Negotiable
Price
UP-1013 Friction Testing Machine for Dry and Wet Abrasion Test with Adjustable Load Range and Real-time Friction Coefficient Display
Features Gallery Product Description Ratings & Review Chat Now
Features
Specifications
Model NO.: UP-1013
Service Support: OEM ODM
Language: Chinese And English
Applications: Cookware,Coating,Painting And Etc.
Test Modes: Dry Abrasion Test / Wet Abrasion Test
Stroke Travel: 0.2" ~ 4.0" (approx. 5mm ~ 102mm), 11 Optional Stroke Lengths
Moving Speed: 2 ~ 75 Cycles/min; Common Preset Speeds: 2, 15, 25, 30, 40, 60 Cycles/min
Load Range: Standard Load 350g~2100g, Optional
Counting Range: 0 ~ 999,999 Cycles
Power: 220V, 50/60Hz
Highlight:

Friction testing machine adjustable load

,

Dry wet abrasion test machine

,

Abrasion tester real-time coefficient display
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE, ISO
Model Number: UP-1013
Payment & Shipping Terms
Packaging Details: Professional export wooden box packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union,PAYPAL
Supply Ability: 30 Unit/month
Product Description
UP-1013 Anti-Wear Lubricant Coefficient of Friction Testing Machine

The UP-1013 Lubricating Oil Friction Tester is a professional laboratory instrument designed to evaluate the friction reduction, anti-wear, and lubricating performance of various lubricant products. It simulates real friction and wear conditions of mechanical components under different loads and speeds, accurately measuring friction coefficient and wear loss for lubricating oils, gear oils, hydraulic oils, engine oils, industrial greases, and other lubricating materials.

Featuring high-precision mechanical transmission and intelligent control systems, this tester offers stable operation, high test accuracy, and simple operation. It is widely applicable for quality inspection, R&D, and performance testing in petroleum, machinery, automotive, and chemical industries.

Applications

This friction tester is widely used in lubricant production facilities, mechanical manufacturing enterprises, automotive industries, chemical laboratories, research institutions, and quality inspection departments. It is essential equipment for developing new lubricating products and controlling lubricant quality.

Technical Specifications
Item Parameters
Applicable Test Samples Lubricating oil, engine oil, gear oil, hydraulic oil, cutting fluid, industrial grease and various liquid & semi-solid lubricants
Test Rotation Speed 100~3000 r/min, stepless adjustable
Test Load Range 0~1000g standard adjustable weight load
Timing Setting Range 0~99999 seconds / 0~99999 minutes, freely presettable
Friction Coefficient Display Real-time dynamic display, high-precision data acquisition
Display & Control System LCD digital display, full automatic program control
Automatic Function Automatic start, timing operation, automatic stop and data locking after test completion
Power Supply AC220V, 50Hz, standard industrial power
Working Environment Ambient temperature: 0ºC~40ºC; Relative humidity: ≤85%RH (non-condensing)
Product Images

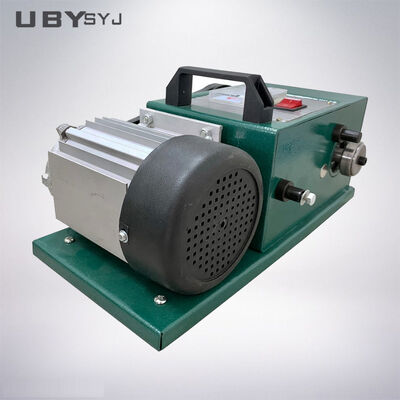

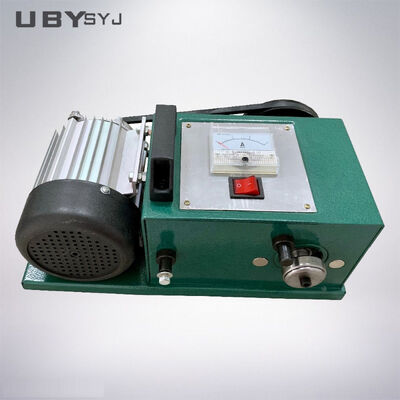

UP-1013 Friction Testing Machine front view UP-1013 Friction Testing Machine side view UP-1013 Friction Testing Machine close-up detail
Our Service Process
  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide pricing
  • Customization Process: Create drawings for customized requirements, provide reference photos, and confirm final solutions
  • Production & Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and arrange shipping
  • Installation & Support: Provide installation services and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of testing equipment in China. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. For technical support, contact us via email or phone. We provide solutions within 24-48 hours after problem confirmation.
What about the delivery term?
Standard machines in stock: 3-7 working days. Out of stock items: 15-20 working days after payment. Urgent orders receive special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including logo placement.
How can I install and use the machine?
We provide English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin use. On-site installation assistance is available when necessary.
