UP-6002 Digital Carton Bursting Tester with Semi-automatic Operation and Pressure Transducer for Accurate Burst Strength Testing

1
MOQ
Negotiable
Price
UP-6002 Digital Carton Bursting Tester with Semi-automatic Operation and Pressure Transducer for Accurate Burst Strength Testing
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-6002
Type: Packaging Testing Machine
Sensing Method: Pressure Transducer
Display: Digital
Specimen Clamping Force: >690kpa
Sample Thickness Range: 0 ~ 10 Mm
Pressurizing Speed: 170±10 Ml/min (High-pressure Semi-automatic)
Oil: 85% Glycerin; 15% Distilled Water
Power Source: AC220V 50Hz
Delivery Terms: CIF, DDP, DDU, FedEx, DHL, Fob
Highlight:

Digital Carton Bursting Tester with Pressure Transducer

,

Semi-automatic Carton Burst Strength Tester

,

Packaging Burst Testing Equipment with Warranty
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6002
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging.
Delivery Time: 5-15 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
UP-6002 Digital Carton Bursting Tester Corrugated Box Burst Strength Testing Machine
The UP-6002 Digital Carton Bursting Tester is designed to measure the bursting strength of various paper and packaging materials including plain paper, corrugated paper, toilet paper, packaging films, tape, leather, and fabrics.
Key Features
  • Advanced microcomputer controller and digital processor for precise results
  • Built-in thermal printer for data saving and printing
  • Safety protection device with overload power-off function
  • Multiple unit switching capability (kPa, psi, kgf/cm²)
Technical Specifications
Item Specification
Sensing Method Pressure Transducer
Display Mode Digital Display
Operation Mode Semi-automatic
Force Unit kPa, psi (Lbs/in²), kgf/cm², with unit switching function
Pressure Range High pressure type: 0~100 kgf/cm², resolution 0.1 kgf/cm²
Clamp Ring Material SUS304 Stainless Steel
Inner Diameter of Clamp Ring Upper & lower clamp ring: φ31.5±0.05 mm
Hydraulic Fluid 85% Glycerin + 15% Distilled Water
Opening in Upper Clamp 31.5 ± 0.05 mm Diameter
Opening in Lower Clamp 31.5 ± 0.05 mm Diameter
Sample Thickness Range 0 ~ 10 mm
Motor Power Shockproof Motor, 1/4 HP
Overall Dimension (L×W×H) 450 × 380 × 550 mm
Net Weight 68 kg
Power Supply Single-phase, AC 220V
Compliance Standards
JIS-L1004, L1018, L1031, K6328, P8131, P8112, ASTMD2210, TAPPI T403, ISO2759-2001, GB/T1539

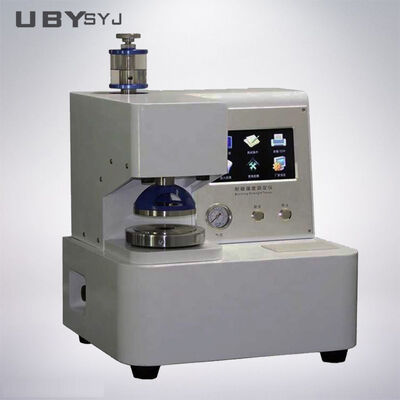

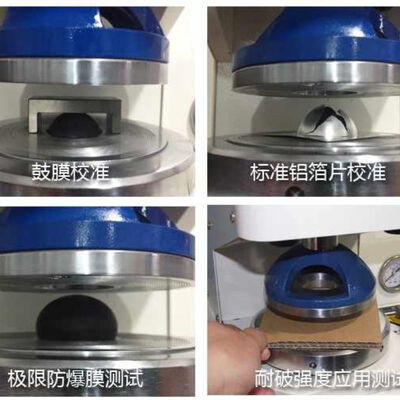

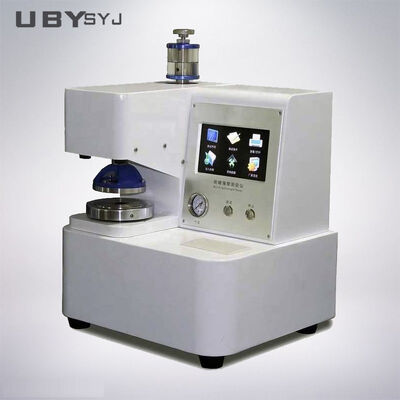

UP-6002 Digital Carton Bursting Tester front view UP-6002 Digital Carton Bursting Tester side view UP-6002 Digital Carton Bursting Tester close-up detail
Our Service Commitment
We provide comprehensive consultative selling services throughout the entire business process:
Customer Inquiry Process
We discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing.
Customization Process
We create detailed drawings for customized requirements, provide reference photos, and confirm final solutions and pricing.
Production and Delivery
We manufacture according to confirmed requirements, provide production progress photos, conduct calibration, and ensure timely delivery.
Installation and Support
We provide installation services and comprehensive after-sales support.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of testing equipment. Every machine includes a 12-month warranty with free maintenance. We extend to 14 months considering sea transportation. For technical issues, contact us via email or phone for prompt resolution within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Out of stock: 15-20 working days after payment. We accommodate urgent requirements with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.
How can I install and use the machine?
We provide English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin use. On-site installation assistance is available when necessary.
