Home /Products/Universal Testing Machine/UP-2003 Tensile Strength Tester with Real-time Curve Display Data Storage Function and ±0.5% Accuracy

UP-2003 Tensile Strength Tester with Real-time Curve Display Data Storage Function and ±0.5% Accuracy

1 Unit
MOQ
Negotiable
Price
UP-2003 Tensile Strength Tester with Real-time Curve Display Data Storage Function and ±0.5% Accuracy
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Tensile Strength Testing Machine
Model NO.: UP-2003
Effective testing space: 120 Mm
Speed Accuracy: ±0.5%
Displacement Resolution: 0.001mm
Range of speed: 0.1~500 Mm/min
Resolution: 1/250,000
Capacity choice: 1, 2, 5,10, 20, 50,100, 200, 500 Kg Optional
Stroke (Exclude The Grips): 650mm, 800mm (Optional)
Effective Width: 400mm, 600mm (Optional)
Power: 1PH, AC220V, 50/60Hz
Highlight:

Universal Testing Machine with real-time curve display

,

Tensile Strength Tester with data storage

,

Universal Testing Machine ±0.5% accuracy
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UPP-2003
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
UP-2003 Tensile Strength Tester With Real-time Curve Display and Data Storage Function
Product Overview

Tensile strength testing machine, also known as universal material testing machine or tensile testing machine, is an important equipment used to test the mechanical properties of materials under tensile load. It can accurately measure various performance parameters of materials during the stress process and is an indispensable testing tool in the fields of materials science research and quality control.

Applications

This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics, and various other materials.

Compliance Standards

ASTM D638, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, ASTM E8, ISO527

Technical Specifications
Model UP-2003
Range of Speed 0.1~500 mm/min
Motor Brand servo motor
Resolution 1/250,000
Capacity Choice 1, 2, 5, 10, 20, 50, 100, 200, 500 kg optional
Whole Stroke 850 mm (can be customized)
Accuracy ± 0.5 %
Force Relative Error ± 0.5 %
Displacement Relative Error ± 0.5 %
Test Speed Relative Error ± 0.5 %
Effective Testing Space 120 mm
Accessories Computer, printer, system operation manual
Optional Accessories Stretcher, air clamp
Operation Method Windows operation
Dimension (W × D × H) 58 × 58 × 145 cm
Weight 70 kg
Power 1 PH, AC 220 V, 50/60 Hz
Product Images

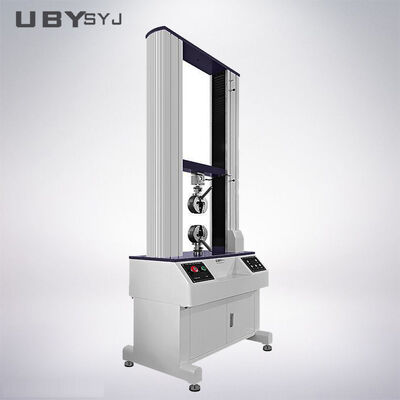

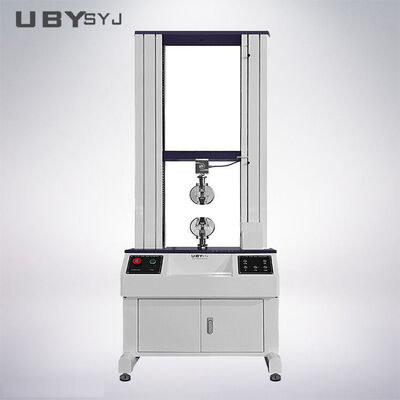

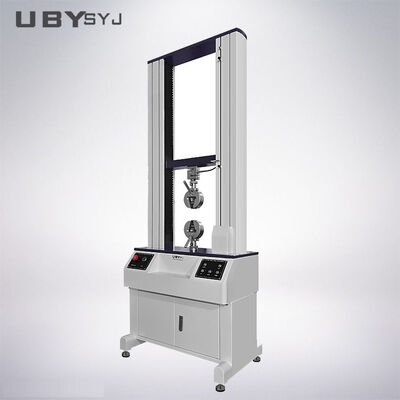

UP-2003 Tensile Strength Tester with Real-time Curve Display Data Storage Function and ±0.5% Accuracy 0 UP-2003 Tensile Strength Tester with Real-time Curve Display Data Storage Function and ±0.5% Accuracy 1 UP-2003 Tensile Strength Tester with Real-time Curve Display Data Storage Function and ±0.5% Accuracy 2
Our Service Process
  • Customer Inquiry Process: Discussing testing requirements and technical details, suggesting suitable products, and providing competitive pricing.
  • Specifications Customize Process: Creating detailed drawings and reference photos for customized requirements, confirming final solutions and pricing.
  • Production and Delivery Process: Manufacturing according to confirmed requirements, providing production updates, conducting calibration, and arranging timely delivery.
  • Installation and After-sale Service: Providing field installation support and comprehensive after-sales services.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months for FREE maintenance, extended by 2 months considering sea transportation. If your machine doesn't work, contact us via email or phone. We will diagnose the problem and provide solutions within 24 to 48 hours.
What about the delivery term?
For standard machines in stock: 3-7 working days. For out-of-stock items: 15-20 working days after payment. Urgent requirements receive special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable and begin operation. On-site installation assistance is available when necessary.
