Temi560 GMP Compliant Temperature and Humidity Controller with 120 Programs and ±0.2℃ Accuracy

1
MOQ
Negotiable
Price
Temi560 GMP Compliant Temperature and Humidity Controller with 120 Programs and ±0.2℃ Accuracy
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: TEMI560
Custom Service: OEM,ODM
Size Service: Support Customer Customization
Temperature Range: -90~200℃(Customizable -90ºC ~ +300ºC)
Control Accuracy: ± 0.2 ℃
Humidity Range: 1%~100%, Error ± 1%
Sensor Type: PT100 Sensor Input (Optional Electronic Sensor);
Control Method: Fixed Value/program
Highlight:

GMP compliant temperature controller

,

humidity controller with 120 programs

,

high accuracy temperature controller
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE, ISO
Model Number: TEMI560
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
User-Friendly Temi560 Real-Time Cold Chain Controller Temperature and Humidity Controller
Product Overview

The TEMI560 cold chain controller is a color touch screen programmable temperature controller widely used in environmental testing chambers and cold chain monitoring applications. It combines powerful programming capabilities, high-precision control, and GMP compliant data management functions.

Key Features
  • Powerful Programmability: 120 sets of high-capacity programs with 100 segments per set, capable of handling complex temperature and humidity testing processes
  • Compliant Permission Management: Three-level permissions with electronic signature function, meeting US GMP regulatory requirements
  • Reliable Alarm and Protection: Fault alarm functions including over temperature and over pressure, with automatic shutdown and SMS alarm capabilities
  • Flexible Communication and Data Export: RS232/RS485 interfaces for remote monitoring and direct printer connection for temperature and humidity curve printing
Technical Specifications
Item Specification
Screen Specifications 5-inch Color TFT Touchscreen, 480×272 Resolution
Control Modes Fixed Value Run / Program Run (Programmable)
Input Sensor PT100 RTD (Optional Electronic Sensor Available)
Temperature Range -90.0ºC ~ +200.0ºC (Customizable -90ºC ~ +300ºC)
Control Accuracy ±0.2ºC
Program Capacity 120 Programs, 100 Segments per Program Max, 99 Hours 99 Minutes per Segment Max
Communication Interface RS232 / RS485, Max Communication Distance 1.2km
Data Export Can connect to printer or PC, records temperature & humidity change curves
Access Management Three-level Authority + Electronic Signature, Complies with US GMP Standards
Alarm Function Auto-shutdown on over-limit condition, supports fault SMS alert signal source
Dimensions (W×H×D) 173×103×39mm
Panel Cutout (W×H) 162×92mm
Power Supply Touchscreen: DC 24V; Lower-level Unit: 85-265V AC, 50/60Hz

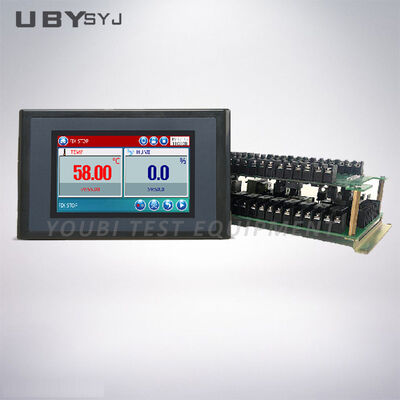

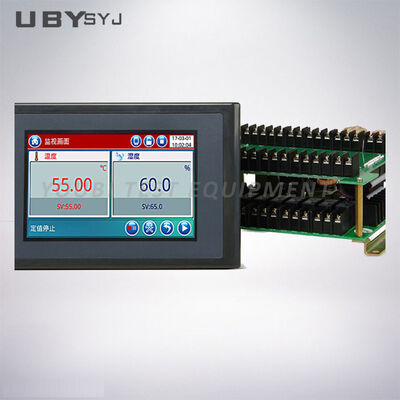

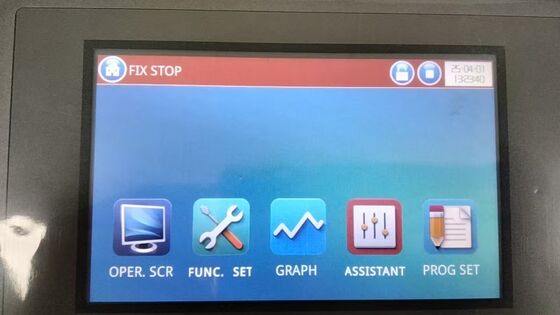

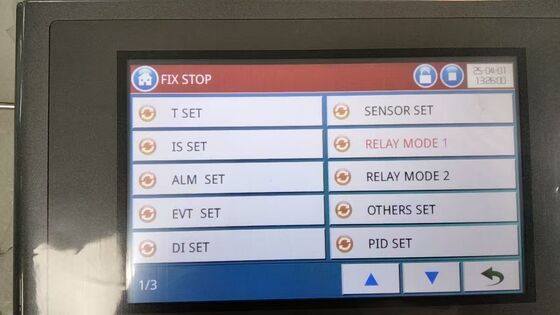

Product Images
Temi560 GMP Compliant Temperature and Humidity Controller with 120 Programs and ±0.2℃ Accuracy 0
Temi560 GMP Compliant Temperature and Humidity Controller with 120 Programs and ±0.2℃ Accuracy 1
Temi560 GMP Compliant Temperature and Humidity Controller with 120 Programs and ±0.2℃ Accuracy 2
Temi560 GMP Compliant Temperature and Humidity Controller with 120 Programs and ±0.2℃ Accuracy 3
Our Service Process
  • Customer Inquiry: Technical discussion and product recommendation with competitive pricing
  • Customization: Detailed drawings and reference photos for specification confirmation
  • Production & Delivery: Quality-controlled manufacturing with progress updates and calibration services
  • Installation & Support: Professional installation and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes 12-month warranty after shipment with free maintenance. Extended warranty options available. Technical support provided via email, phone, or video chat with solutions offered within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements accommodated with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. OEM and ODM services available including logo placement.

How can I install and use the machine?

We provide comprehensive English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance available when necessary.
