Name: UP-2003 Universal Testing Machine with 20-100000kN Max Capacity, ±0.5% Accuracy, and AC Servo Motor for Tensile Compression Bending Tests
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-2003
Price: 299 USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Type: Universal Testing Machine

Model NO.: UP-2003

Maxcapacity: 20-100000kN

Accuracy Grade: 0.5

Power Source: AC110-220V

Additional Service: Support Customer Customization.

Delivery Terms: CIF, DDP, DDU, FedEx, DHL, Fob

Range Of Speed: 50-400mm/Min

Resolution: 1/150, 000

Accuracy: ±0.5%

Test Space: 120mmmax

Specification: About 1CBM

Highlight:

20-100000kN Max Capacity Universal Testing Machine

±0.5% Accuracy Tensile Strength Tester

AC Servo Motor Material Testing Equipment

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-2003

Payment & Shipping Terms

Packaging Details: Professional export packing

Delivery Time: 5-10 work days

Payment Terms: D/P,T/T,Western Union

Supply Ability: 30 Unit/Month

Gallery

UP-2003 Universal Testing Machine with 20-100000kN Max Capacity, ±0.5% Accuracy, and AC Servo Motor for Tensile Compression Bending Tests

Product Description

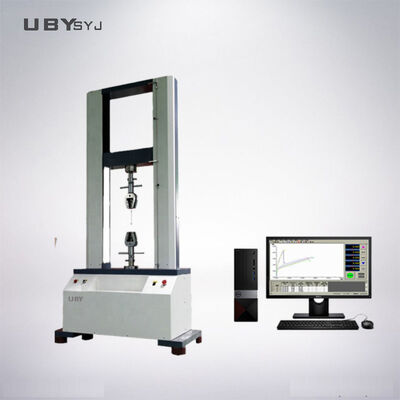

UP-2003 Universal Testing Machine

Comprehensive testing solution for tensile, compression, bending, peel, and shearing force measurements for quality control applications.

Application Scope

Ideal for testing adhesive tape, rubber, plastic, sponge, waterproof materials, electric wire & cable, textiles, net rope, non-woven fabrics, and various non-metal materials. Also suitable for metallic thread, metal foil, steel plate, and metal rod testing.

Key Features

AC servo motor driving high-precision ball screw mechanism
High-precision explosion-proof load cell with ±0.25% strength accuracy
Displacement accuracy of 0.001mm for precise measurements
Automatic break identification and return functions
Manual data point collection with unit switching capability
Dual language support: Chinese and English
Closed-loop control for force value, speed, and displacement
Comprehensive data recording and analysis capabilities
Multiple analysis curves: stress vs strain, strength vs deformation, strength vs displacement, strength vs time, time vs deformation
Compatible with various grips for diverse testing applications

Technical Specifications

Parameter	Specification
Model	UP-2003
Capacity	300KN
Units	N, KN, Kgf, Lbf, Mpa, Lbf/In², Kgf/mm²
Load Resolution	1/500,000
Load Accuracy	±0.25%
Stroke (excluding grips)	650mm
Effective Width	400mm
Test Speed	0.001~300mm/min
Speed Accuracy	±0.5%
Displacement Resolution	0.001mm
Allowable Sample Size (Plate)	0~15mm
Allowable Sample Size (Bar)	10~32mm
Software	Closed-loop control software
Motor	AC servo Motor
Transmission	High accuracy ball screw
Main Unit Dimensions (W×D×H)	1200×750×2100mm
Main Unit Weight	Approximately 1500 Kg
Power Supply	380V AC, 50 HZ, 3 PHASE

Customer Service Process

Inquiry Process: Technical consultation and requirement analysis with product recommendations and competitive pricing.

Customization Process: Detailed drawings and reference photos for custom requirements, final solution confirmation.

Production & Delivery: Production according to confirmed specifications with progress updates, factory calibration, and timely delivery.

Installation & Support: Professional installation services and comprehensive after-sales support.

Frequently Asked Questions

Are you a manufacturer? What about warranty and after-sales service?

Yes, we are professional manufacturers of testing equipment. All machines include 12-month warranty with extended coverage for sea transportation. We provide free maintenance and technical support via email, phone, or video chat with solutions typically provided within 24-48 hours.

What is the delivery timeframe?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special priority scheduling.

Do you offer customization and OEM services?

Yes, we provide both standard and customized machines according to specific requirements, including OEM and ODM services with customer logo application.

How is installation and operation handled?

Most machines are shipped fully assembled. We provide comprehensive English operation manuals and videos. For complex installations, we offer on-site assistance and remote support.
