Home /Products/Abrasion Testing Machine/Multi-Material DIN Abrasion Tester with 150mm Roll Diameter and 40rpm Rolling Speed for Rubber Wear Testing

Multi-Material DIN Abrasion Tester with 150mm Roll Diameter and 40rpm Rolling Speed for Rubber Wear Testing

1
MOQ
799
Price
Multi-Material DIN Abrasion Tester with 150mm Roll Diameter and 40rpm Rolling Speed for Rubber Wear Testing
Features Gallery Product Description Ratings & Review Chat Now
Features
Specifications
HS Code: 9024800000
Model NO.: UP-1001
Service Support: OEM ODM
Language: Chinese And English
Roll Diameter: 150mm
Roller Wheel Diameter: (150 ±0.2)mm
Abrasion Stroke: 40m Equal To Roller Wheel Turns Number 84
Abrasion Speed: 0.32m/Sec
Power: AC 220V 3A(Specified)
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE, ISO
Model Number: UP-1001
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union,PAYPAL
Supply Ability: 20 Unit/month
Product Description
UP-1001 Multi-Material Electronic Rubber DIN Abrasion Tester for Shoes Wear Test
Product Overview

The DIN Abrasion Tester is designed to determine the wear resistance of elastic materials, rubber, tires, conveyor belts, shoe soles, soft synthetic leather, and other similar materials.

Testing Principle

Under predetermined contact pressure and a given area, the specimen is tested with sandpaper angled to measure abrasion resistance. The specimen undergoes rubbing on sandpaper affixed to the surface of a drum. The sample is pressed against the drum with sandpaper and moves laterally along the roller. Abrasion resistance is produced at one end of the cylindrical specimen, and the test measures the mass loss of the specimen. The volume abrasion is calculated using the specimen's density.

Compliance Standards

DIN-53516; ISO-4649; BS903 PART9; GB-9867

Technical Specifications
Parameter Specification
Roll Diameter 150mm
Fixture Lateral Displacement 4.2mm/hoop each lap
Rolling Speed 40rpm
Load 2.5N, 5N, 7.5N, 10N
Specimen Size Thickness 6mm~14mm
Dimension 850*380*400mm
Weight Approx 70kg
Power 220V 50HZ
Product Images

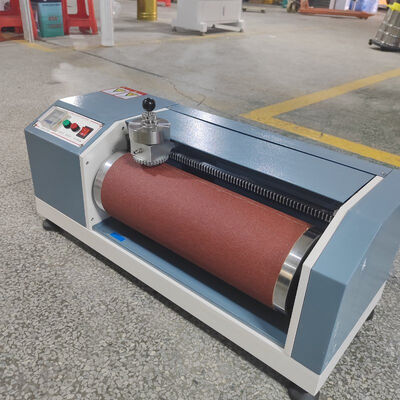

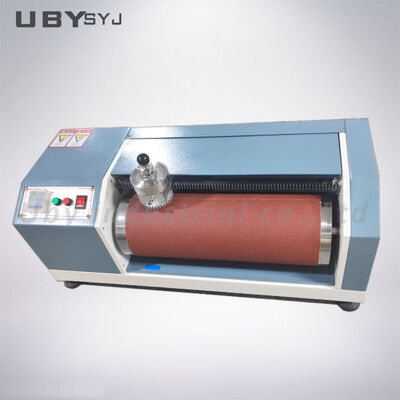

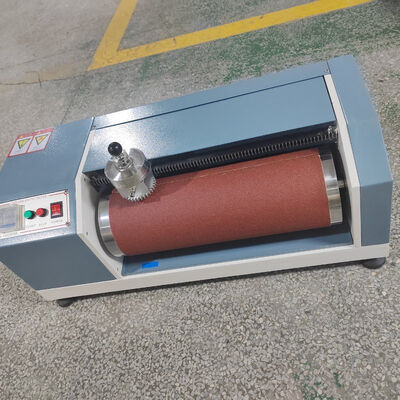

Multi-Material Electronic Rubber DIN Abrasion Tester front view Multi-Material Electronic Rubber DIN Abrasion Tester side view Multi-Material Electronic Rubber DIN Abrasion Tester close-up detail
Our Service Process
Customer Inquiry Process

Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer needs.

Specifications Customization Process

Create detailed drawings for customized requirements, provide reference photos, and confirm final solutions and pricing.

Production and Delivery Process

Manufacture machines according to confirmed requirements, provide production progress photos, conduct factory or third-party calibration, and ensure proper packaging and timely delivery.

Installation and After-Sales Service

Provide field installation services and comprehensive after-sales support.

Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. We extend an additional 2 months considering sea transportation. For technical issues, contact us via email or phone for prompt troubleshooting and solutions within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including logo placement.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable and begin operation. On-site installation assistance is available when necessary.
