UP-6000 2000N Capacity Crush Tester with Automatic Test Reports and Customizable Platen Dimension for Paper and Corrugated Board Testing

1
MOQ
Negotiable
Price
UP-6000 2000N Capacity Crush Tester with Automatic Test Reports and Customizable Platen Dimension for Paper and Corrugated Board Testing
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-6000
Capacity: 2000N
Accuracy: 0.01kg
Platen Dimension: 100×100mm(or Customize By User Needs)
Test Stroke: 90mm (or Customize By User Needs)
Test Speed: 12.7mm/min
Delivery Terms: CIF, DDP, DDU, FedEx, DHL, FOB
Additional Service: Support Customer Customization
Highlight:

2000N crush tester for packaging

,

automatic test report crush tester

,

customizable platen crush tester
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6000
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
UP-6000 Traceable RCT ECT Paper Crush Tester with Automatic Test Report Generation and Statistical Analysis
Product Overview

This machine is designed for testing the ring crush strength of paperboard. With appropriate optional accessories, it can also perform column compression, ring crush, concora crush, and adhesion strength testing of corrugated board.

Test Standards

TAPPI-T472, JIS-P8126, and related standards

Technical Specifications
Parameter Specification
Capacity 2000N
Accuracy 0.01kg
Platen Dimension 100×100mm (customizable)
Test Stroke 90mm (customizable)
Test Speed 12.7mm/min
Return Function Automatic return after test completion
Weight 60kg
Power 1φ, 220V/50Hz
Available Accessories
  • Side Pressure Strength Test: Ring Crush Tester + Parallel Cutting Knife + Side Pressure Counseling Piece
  • Ring Crush Strength Test: Ring Crush Tester + Rig Crush Sampler + Ring Crush Fixture
  • Bonding Strength Test: Ring Crush Tester + Hood Strength Stripping Frame
  • Flat Crush Strength Test: Ring Crush Tester + Flat Crush Sampler

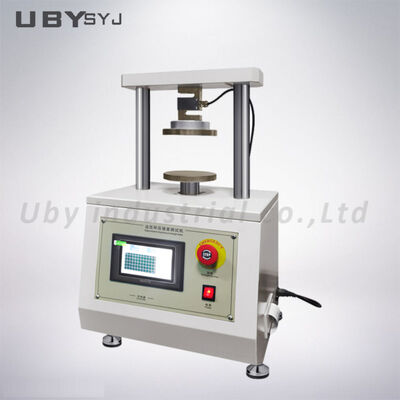

Product Images
UP-6000 2000N Capacity Crush Tester with Automatic Test Reports and Customizable Platen Dimension for Paper and Corrugated Board Testing 0 UP-6000 2000N Capacity Crush Tester with Automatic Test Reports and Customizable Platen Dimension for Paper and Corrugated Board Testing 1 UP-6000 2000N Capacity Crush Tester with Automatic Test Reports and Customizable Platen Dimension for Paper and Corrugated Board Testing 2 UP-6000 2000N Capacity Crush Tester with Automatic Test Reports and Customizable Platen Dimension for Paper and Corrugated Board Testing 3
Our Service Commitment

We provide comprehensive consultative selling services throughout the entire business process:

Customer Inquiry Process

We discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer specifications.

Customization Process

We create detailed drawings for custom requirements, provide reference photos, and confirm final solutions and pricing.

Production and Delivery

We manufacture according to confirmed requirements, provide production progress photos, perform calibration, conduct thorough testing, and ensure timely delivery.

Installation and Support

We offer field installation services and comprehensive after-sales support.

Frequently Asked Questions
Are you a manufacturer? Do you offer after-sales service? How can I request support? What is the warranty?

Yes, we are professional manufacturers of environmental chambers, leather shoe testing equipment, and plastic/rubber testing equipment. Every machine includes a 12-month warranty after shipment, with 12 months of free maintenance (extended to 14 months considering sea transportation). For technical issues, contact us via email or phone - we provide solutions within 24-48 hours through remote diagnostics and video support.

What are your delivery terms?

Standard machines in stock: 3-7 working days. Out-of-stock items: 15-20 working days after payment confirmation. We accommodate urgent requirements with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including custom branding with your logo.

How do I install and use the machine?

We provide comprehensive English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect power and begin operation. We offer on-site installation assistance when necessary.
