Home /Products/Packaging Testing Equipment/ISO 2872 2874 Packaging Testing Equipment Pressure Tester And Stacking Tester UP-6035

ISO 2872 2874 Packaging Testing Equipment Pressure Tester And Stacking Tester UP-6035

1 Unit
MOQ
Negotiable
Price
ISO 2872 2874 Packaging Testing Equipment Pressure Tester And Stacking Tester UP-6035
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Pressure Tester And Stacking Tester
Product Name: Packaging Testing Equipment
Model NO.: UP-6035
Additional Service: Support Customer Customization.
Delivery Terms: CIF, DDP, DDU, FedEx, DHL, FOB
Transport Package: Professional Export Wooden Carton Packaging
Capacity: 2000KGF
Resolution: 1/100,000
Force Accuracy: ≤0.5%
Highlight:

ISO 2872 Packaging Testing Equipment

,

ISO 2872 2874 Packaging Testing Machine

,

Pressure Tester And Stacking Tester UP-6035
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6035
Payment & Shipping Terms
Packaging Details: Professional export packing
Delivery Time: 5-15 work days
Payment Terms: D/P, T/T, Western Union, Paypal, Money Gram
Supply Ability: 30 Unit/month
Product Description
UP-6035 ISO 2872 2874 Pressure Tester and Stacking Tester During Transportation
Product Overview

Professional testing equipment for corrugated boxes, containers, and packaging materials compliance with international standards including TAPPI-T804, JIS-Z0212, ISO2872, NF H13-001, CNS 2236/3511, and ASTM D642.

Testing Capabilities
  • Strength Test: Measures maximum compression force and displacement of corrugated boxes, containers, and packaging
  • Constant/Fixed Test: Set compression force and displacement to evaluate overall box performance and provide essential design data (also known as load-keeping test)
  • Stacking Test: Conduct stacking tests under various conditions per standard requirements (12 hours, 24 hours, etc.)
Key Features
  • Windows-based platform with intuitive dialog box parameter settings
  • Single-screen operation eliminates screen switching
  • Multi-language support: Simplified Chinese, Traditional Chinese, and English
  • Translational and overlapping modes for comprehensive curve data comparison
  • Multiple measurement units with imperial/metric switching capability
  • Automatic magnification function for optimal graphic sizing
  • Advanced machine structure with high rigidity, compact footprint, and lightweight design
  • Comprehensive testing: compression strength, stack strength, and peak value measurement
Technical Specifications
Specification Details
Capacity 2000 KGF
Resolution 1/100,000
Units kg, lb, N, g (switchable)
Force Accuracy ≤0.5%
Test Space L800×W800×H800mm, 1000×W1000×H1000mm (customizable)
Drive System Servo Motor
Test Speed 0.1~500mm/min (standard speed 10±3mm/min)
Dimensions 1600×1200×1700mm
Weight 500kg
Power 1φ, 220V/50Hz
Control System Full computer software control
Safety Features High precision sensor, ball screw, adjustable test speed, overload protection, fault alarm, limit stroke protection
Functions Automatic test completion with dynamic digital display of sample number, test pressure, sample deformation, starting pressure; Constant pressure and deformation measurement; Shape change and resistance to pressure measurement; Maximum crushing force and stacking test
Product Images

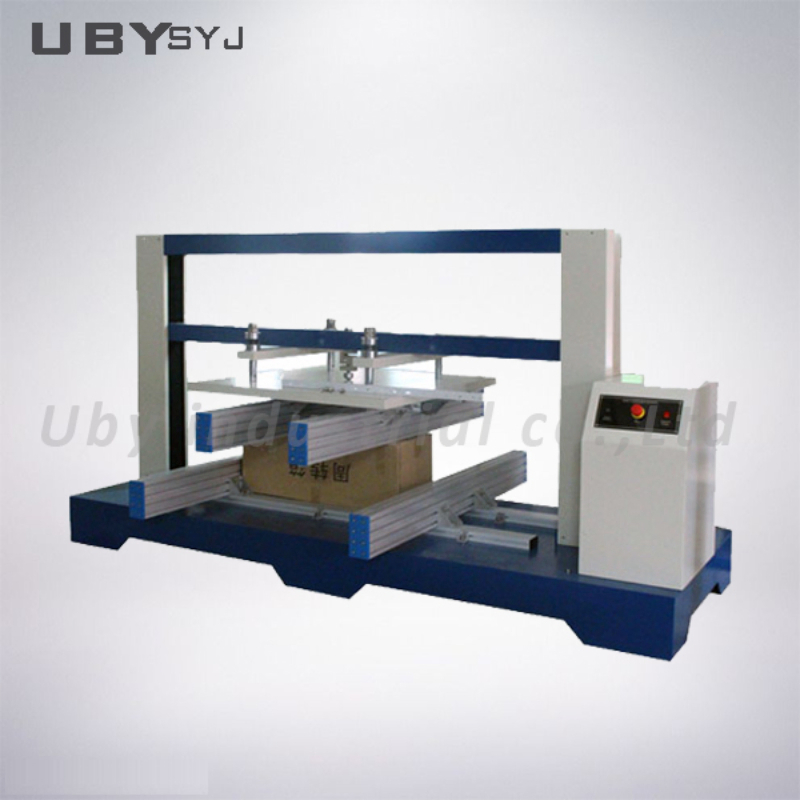

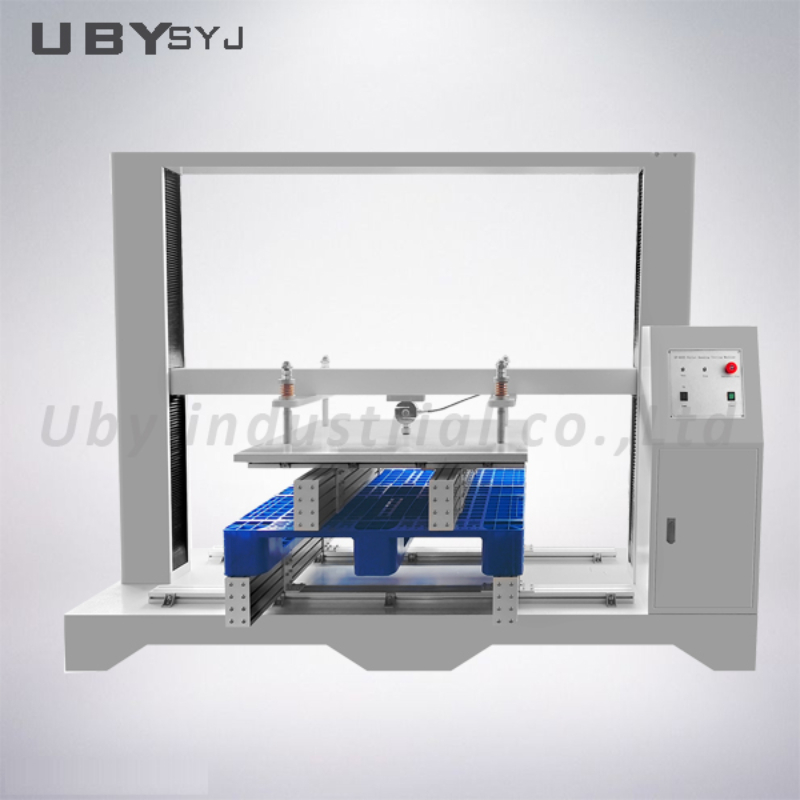

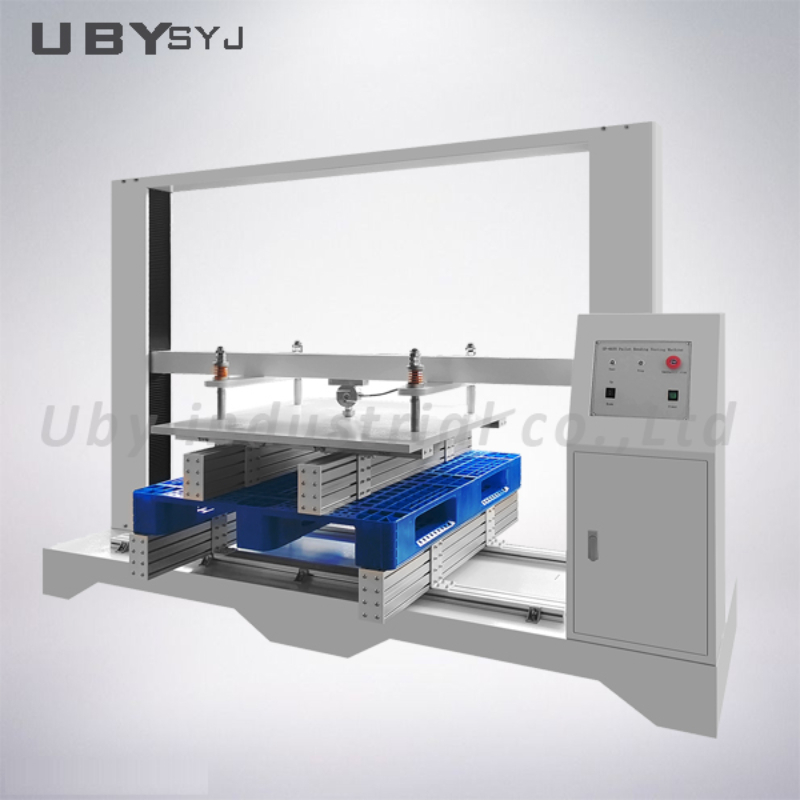

ISO 2872 2874 Packaging Testing Equipment Pressure Tester And Stacking Tester UP-6035 0 ISO 2872 2874 Packaging Testing Equipment Pressure Tester And Stacking Tester UP-6035 1 ISO 2872 2874 Packaging Testing Equipment Pressure Tester And Stacking Tester UP-6035 2
Our Service Process
  • Customer Inquiry: Technical consultation, product recommendations, and competitive pricing
  • Customization: Detailed drawings, reference photos, and final solution confirmation
  • Production & Delivery: Quality manufacturing with progress updates, calibration services, and timely shipping
  • Installation & Support: Professional installation and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes 12-month warranty after shipment with free maintenance. We extend to 14 months considering sea transportation. For technical issues, contact us via email or phone - we provide solutions within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent orders receive special priority handling.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. OEM and ODM services available, including custom branding with your logo.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines ship fully assembled - simply connect power and begin operation. On-site installation assistance available when necessary.
