UP-6035 Durable Carton Compression Tester with Rigid Twin-Screw Frame Structure and Computer Control for Customizable Dimensions

1
MOQ
Negotiable
Price
UP-6035 Durable Carton Compression Tester with Rigid Twin-Screw Frame Structure and Computer Control for Customizable Dimensions
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-6035
Measurement Range: (50~10000)N
Measurement Size: (600*800*800) Other Dimensions Can Be Customized
Resolution: 0.01N
Working Conditions: Temperature (20 ± 10 ° C), Humidity < 85%
Unit Interchange: N/Lbf/KGF Interchange
Control: Computer Control
Power Source: AC110-220V
Additional Service: Support Customer Customization.
Delivery Terms: CIF, DDP, DDU, FedEx, DHL, FOB
Highlight:

computer controlled carton compression tester

,

twin-screw frame packaging tester

,

customizable dimensions compression tester
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE, ISO
Model Number: UP-6035
Payment & Shipping Terms
Packaging Details: Professional export wooden box packaging
Delivery Time: 5-15 work days
Payment Terms: D/P,T/T,Western Union,Paypal
Supply Ability: 20 Unit/month
Product Description
UP-6035 Durable Carton Packaging Compressive Strength Tester with Rigid Twin-Screw Frame Structure
Product Overview
UP-6035 Versatile Cardboard Box Compression Test Machine With Compression Stacking Constant Load
The cardboard box compressive strength tester is a core equipment for evaluating the pressure bearing capacity of transport packaging during storage, stacking, and transportation. By conducting precise compression tests, the maximum compressive strength and stacking performance of packaging containers such as cardboard boxes can be quantitatively evaluated, providing critical data support for packaging design optimization and supply chain safety.
Testers usually adopt an electromechanical integrated structure, consisting of two main parts: the force application system and the measurement and control system.
Applications
  • Various types of corrugated cardboard boxes
  • Honeycomb cardboard boxes
  • Cardboard boxes
  • Plastic packaging containers (turnover boxes, IBC drums, plastic bottles)
  • Paper drums and paper cans
  • Metal containers
  • Wooden boxes and other materials for transportation packaging
Compliance Standards
  • GB/T 4857.4 - Pressure test method for packing and transporting packing parts
  • GB/T 4857.3 - Test method for the static load stacking of packaging transportation packaging
  • ISO 2872 - Packaging - Complete and fully loaded transport package - Pressure test
  • ISO 2874 - Packaging - A complete and full packing package - Stacking test by pressure tester
  • QB/T 1048 - Cardboard and compressive strength tester
  • TAPPI T804 - Compression Test of Corrugated Fiberboard Boxes
Technical Specifications
Measurement range (50~10000)N
Measurement size (600*800*800)mm (other dimensions can be customized)
Resolution 0.1N
Error of deformation ± 1mm
Pressure plate parallelism Less than 1mm
Test speed (10± 3) mm/min (stack: 5 ± 1mm/min)
Return speed 100mm/min
Unit interchange N/Lbf/KGF interchange
Man-machine interface 3.5in liquid crystal display with curve showing change process
Printer Module type thermal printer
Working conditions Temperature (20 ± 10°C), humidity < 85%
Appearance size 1050*800*1280mm
Product Images

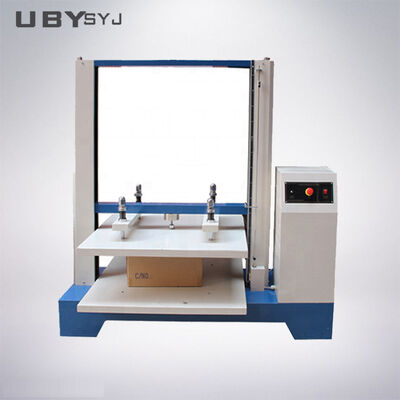

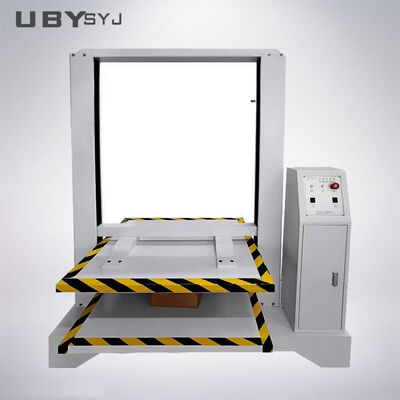

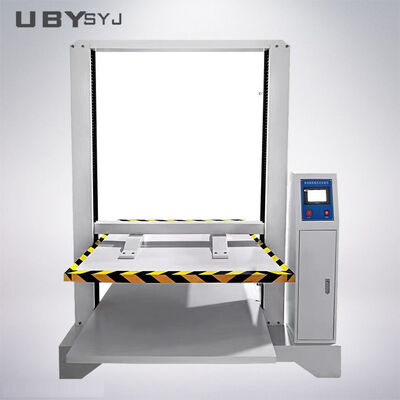

UP-6035 Carton Packaging Compressive Strength Tester front view UP-6035 Compressive Strength Tester technical diagram UP-6035 testing machine operation interface
Our Service Process
1) Customer Inquiry Process
Discussing testing requirements and technical details, suggesting suitable products to customer. Then quote the most suitable price according to customer requirements.
2) Specifications Customize Process
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show product appearance. Confirm final solution and price.
3) Production and Delivery Process
Produce machines according to confirmed PO requirements. Offer production process photos. After completion, provide machine photos for customer confirmation. Perform factory or third-party calibration. Check and test all details before packing. Deliver products within confirmed shipping time.
4) Installation and After-Sale Service
Define installation procedures and provide comprehensive after-sales support.
Frequently Asked Questions
Q: Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
A: Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. Generally, we offer 12 months for FREE maintenance. Considering sea transportation, we can extend 2 months for our customers.
If your machine doesn't work, you can send us an email or call us. We will try our best to identify the problem through conversation or video chat if necessary. Once we confirm the problem, the solution will be offered within 24 to 48 hours.
Q: What about the delivery term?
A: For standard machines with stock in warehouse: 3-7 working days. For no stock items: normally 15-20 working days after payment is received. For urgent needs, we will make special arrangements.
Q: Do you accept customization services? Can I have my logo on the machine?
A: Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services and can put your logo on the machine.
Q: How can I install and use the machine?
A: Once you order testing machines from us, we will send you the operation manual or video in English version through email. Most machines are shipped fully assembled - you just need to connect the power cable and start using. If necessary, we can assist with on-site installation.
