High Precision Packaging Carton Compression Tester with 1200x1200x1200mm Test Space and ±1% Load Accuracy

1
MOQ
Negotiable
Price
High Precision Packaging Carton Compression Tester with 1200x1200x1200mm Test Space and ±1% Load Accuracy
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-6035
Unit Interchange: N/Lbf/KGF Interchange
Test Space: 1200x1200x1200mm
Test Speed: 0.001~200mm/min
Lifting Space: 0~1000mm, Adjustable
Load Resolution: 1/250000
Load Accuracy: ±1%
Stroke Resolution: 0.001mm
Additional Service: Support Customer Customization.
Delivery Terms: CIF, DDP, DDU, FedEx, DHL, FOB
Highlight:

high precision carton compression tester

,

1200x1200x1200mm packaging tester

,

customizable carton compression testing equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE, ISO
Model Number: UP-6035
Payment & Shipping Terms
Packaging Details: Professional export wooden box packaging
Delivery Time: 5-15 work days
Payment Terms: D/P,T/T,Western Union,Paypal
Supply Ability: 20 Unit/month
Product Description
High Precise Packaging Carton Compression Tester For Testing Transportation Packaging UP-6035
Product Overview

UP-6035 High Precise Packaging Carton Compression Tester is a core equipment for evaluating the pressure bearing capacity of transport packaging during storage, stacking, and transportation. By conducting precise compression tests, the maximum compressive strength and stacking performance of packaging containers such as cardboard boxes can be quantitatively evaluated, providing critical data support for packaging design optimization and supply chain safety.

Testers adopt an electromechanical integrated structure, consisting of two main parts: the force application system and the measurement and control system.

Applications
  • Various types of corrugated cardboard boxes
  • Honeycomb cardboard boxes and cardboard boxes
  • Plastic packaging containers (turnover boxes, IBC drums, plastic bottles)
  • Paper drums and paper cans
  • Metal containers and wooden boxes
  • Other materials for transportation packaging
Compliance Standards
GB/T 4857.4 - Pressure test method for packing and transporting packing parts
GB/T 4857.3 - Test method for the static load stacking of packaging transportation packaging
ISO 2872 - Packaging - Complete and fully loaded transport package - Pressure test
ISO 2874 - Packaging - A complete and full packing package - Stacking test by pressure tester
QB/T 1048 - Cardboard and compressive strength tester
TAPPI T804 - Compression Test of Corrugated Fiberboard Boxes
Technical Specifications
Parameter Specification
Product Name Packaging Carton Compression Tester
Test Space 1200×1200×1200mm
Test Speed 0.001~200mm/min
Lifting Space 0~1000mm, Adjustable
Software Special Close-loop Control Software
Load Resolution 1/250,000
Load Accuracy ±1%
Stroke Resolution 0.001mm
Dimension 2100×1300×2100mm
Weight 1400kg
Power Supply AC220V 50Hz 5A Or Specified By User
Product Images

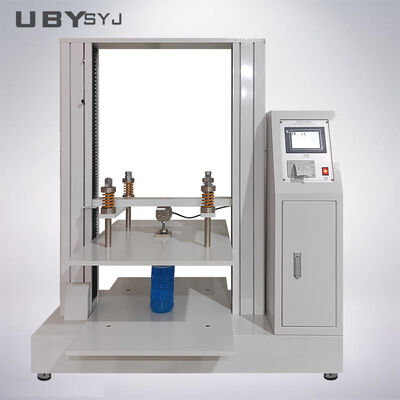

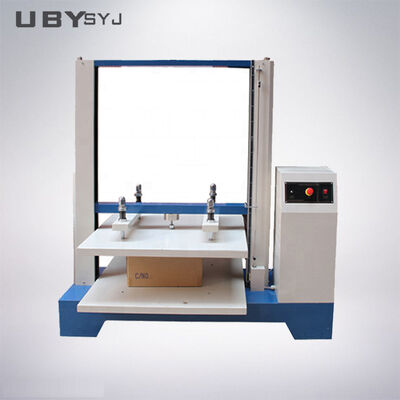

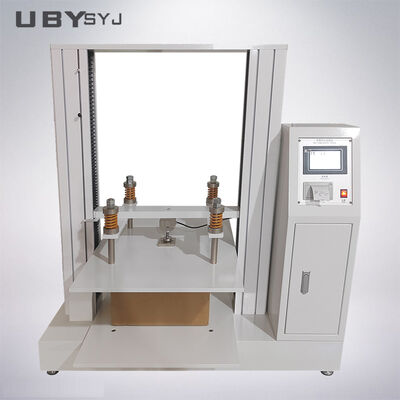

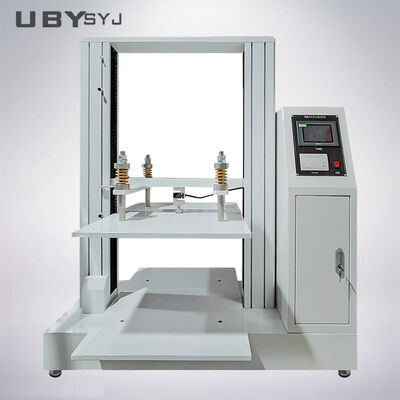

UP-6035 Carton Compression Tester for Transportation Packaging Testing Technical diagram of packaging carton compression tester
Our Service Process
1) Customer Inquiry Process

Discussing testing requirements and technical details, suggesting suitable products to customer for confirmation. Then quote the most suitable price according to customer requirements.

2) Specifications Customize Process

Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Confirm the final solution and pricing with the customer.

3) Production and Delivery Process

Produce machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, provide photos for customer confirmation. Perform factory calibration or third-party calibration as required. Check and test all details before arranging packing and delivery.

4) Installation and After-Sale Service

Define installation procedures for products in the field and provide comprehensive after-sales support.

Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance, extended to 14 months considering sea transportation. If your machine doesn't work, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.

2. What about the delivery term?

For standard machines with stock available: 3-7 working days. For machines without stock: 15-20 working days after payment is received. Urgent requirements receive special arrangements.

3. Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.

4. How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable and start using. On-site installation assistance is available when necessary.
