Home /Products/Packaging Testing Equipment/UP-6035 Plastic Pallet Bending Tester with Computer Control, Customizable Dimensions, and High Precision for Strength and Durability Testing

UP-6035 Plastic Pallet Bending Tester with Computer Control, Customizable Dimensions, and High Precision for Strength and Durability Testing

1
MOQ
Negotiable
Price
UP-6035 Plastic Pallet Bending Tester with Computer Control, Customizable Dimensions, and High Precision for Strength and Durability Testing
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-6035
Max Diameter Of Workpiece: 500 Or Above
Mass Scope Of Workpiece: <900kg
Type: Universal Testing Machine
Maxcapacity: 20-100000kN
Accuracy Grade: 0.5
Load Way: Electronic Load
Loading Method: Static Load
Display: Digital
Control: Computer Control
Weight: 100-500Kg
Power Source: AC110-220V
Oil Cylinder Position: Under
Additional Service: Support Customer Customization.
Delivery Terms: CIF, DDP, DDU, FedEx, DHL, Fob
Highlight:

plastic pallet bending tester

,

computer-controlled pallet tester

,

high precision packaging testing equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6035
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging.
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
UP-6035 Plastic Pallet Bending Tester Strength and Durability Test Machine
Product Overview

The UP-6035 Plastic Pallet Bending Tester is a professional testing machine designed to evaluate the compressive performance and durability of plastic pallets, cardboard boxes, and various packaging containers.

Applications
  • Pressure resistance, deformation, and stacking tests for corrugated cardboard boxes and honeycomb board boxes
  • Compression testing of plastic drums (edible oil, mineral water), paper drums, paper boxes, paper cans, and IBC drums
  • Strength and durability evaluation of plastic pallets
Test Standards
  • GB/T 4857.4 - Pressure test method for packing and transporting packing parts
  • GB/T 4857.3 - Test method for the static load stacking of packaging transportation packaging
  • ISO 2872 - Packaging - Complete and fully loaded transport package - Pressure test
  • ISO 2874 - Packaging - Complete and full packing package - Stacking test by pressure tester
  • QB/T 1048 - Cardboard and compressive strength tester
Technical Specifications
Parameter Specification
Accuracy ±1%
Measurement Range (50~10000)N
Measurement Size (600*800*800)mm (other dimensions can be customized)
Resolution 0.1N
Error of Deformation ±1mm
Pressure Plate Parallelism Less than 1mm
Test Speed (10±3) mm/min (stack: 5±1mm/min)
Return Speed 100mm/min
Unit Interchange N/Lbf/KGF interchange
Man-Machine Interface 3.5in liquid crystal display with curve showing change process
Printer Module type thermal printer
Working Conditions Temperature (20±10°C), Humidity <85%
Appearance Size 1050*800*1280mm
Product Images

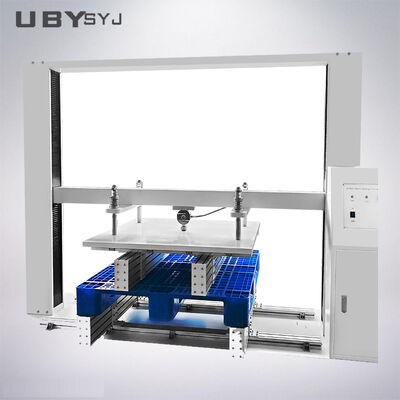

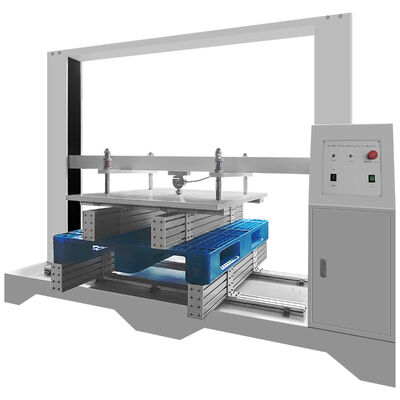

UP-6035 Plastic Pallet Bending Tester machine overview
Plastic Pallet Bending Tester strength testing operation
Plastic Pallet Bending Tester durability test close-up
Our Service Process
Customer Inquiry Process

Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer specifications.

Specifications Customization Process

Create detailed drawings for custom requirements, provide reference photos, and confirm final solutions and pricing.

Production and Delivery Process

Manufacture according to confirmed requirements, provide production progress photos, conduct calibration, and ensure timely delivery.

Installation and After-Sales Service

Provide field installation support and comprehensive after-sales service.

Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of environmental chambers, leather shoe testing equipment, and plastic rubber testing equipment. Every machine includes a 12-month warranty after shipment with free maintenance. We extend to 14 months considering sea transportation. For technical issues, we provide support via email or video chat with solutions typically provided within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services including logo placement.

How can I install and use the machine?

We provide English operation manuals and videos. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance is available when necessary.
