Home /Products/Fabric Testing Machine/UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester with 0.5% Accuracy and 100cm2 Sample Chuck Area

UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester with 0.5% Accuracy and 100cm2 Sample Chuck Area

1
MOQ
Negotiable
Price
UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester with 0.5% Accuracy and 100cm2 Sample Chuck Area
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-8010
Measuring Range: 1kpa~300kpa
Accuracy: 0.5%
Resolution: 0.01
Sample Chuck Area: 100cm2
Water Tank Capacity: 1000ml
Specification: Refer To The Actual Size Specifications
Production Capacity: 200 Unit/Month
Highlight:

Pneumatic Clamp Fabric Water Permeability Tester

,

0.5% Accuracy Hydrostatic Pressure Tester

,

100cm2 Sample Chuck Area Digital Fabric Tester
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE, ISO
Model Number: UP-8010
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 5-15 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 200 Unit/Month
Product Description
UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester
This hydrostatic head tester accurately determines the resistance of fabrics (coated, uncoated, and non-woven) to water penetration under pressure. The unit firmly clamps fabric samples in a test bench through dynamic and static testing methods.
Applicable Standards
GB/T 4744-2013, ISO-811, AATCC127, FZ/T 01004
Technical Specifications
Sample Clamping Method Manual
Measuring Range 0-300kPa (30mH2O)/0-100kPa (10mH2O)/0-50kPa (5mH2O) optional
Resolution 0.01kPa (1mmH2O)
Measurement Accuracy ≤±0.5% F•S
Test Times ≤99 times with optional delete function
Test Methods Pressurization method, constant pressure method
Constant Pressure Holding Time 0-99999.9S (±0.1S accuracy)
Sample Clamp Area 100cm²
Total Test Time 0-999999.9S (±0.1S accuracy)
Pressurization Speed 0.5-50kPa/min digitally adjustable
Power Supply AC220V, 50Hz, 250W
Dimensions 470×410×60mm
Weight Approximately 25kg

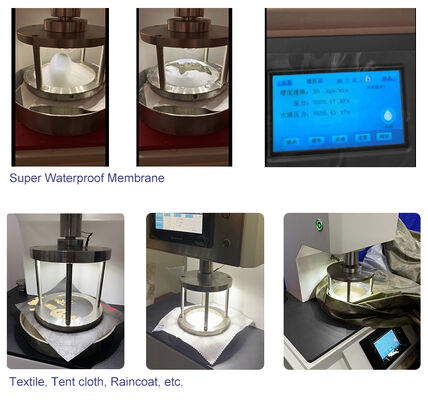

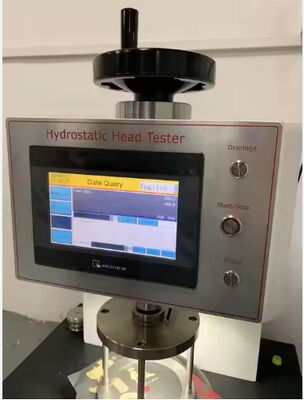

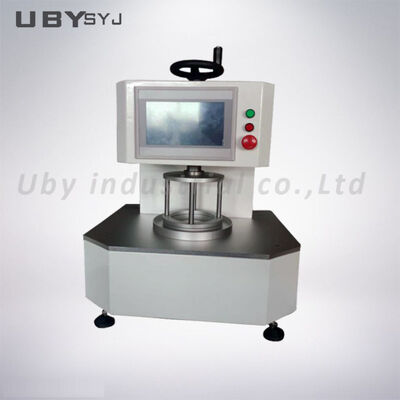

Product Images
UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester with 0.5% Accuracy and 100cm2 Sample Chuck Area 0 UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester with 0.5% Accuracy and 100cm2 Sample Chuck Area 1 UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester with 0.5% Accuracy and 100cm2 Sample Chuck Area 2 UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester with 0.5% Accuracy and 100cm2 Sample Chuck Area 3 UP-8010 Pneumatic Clamp Digital Fabric Water Permeability Tester with 0.5% Accuracy and 100cm2 Sample Chuck Area 4
Our Service Commitment
Consultative Selling Process
  • Inquiry Process: Technical consultation, product recommendations, and competitive pricing
  • Customization Process: Technical drawings, visual references, and final solution confirmation
  • Production & Delivery: Progress updates, quality confirmation, calibration services, and timely shipping
  • Installation & Support: Field installation and comprehensive after-sales service
Frequently Asked Questions
Are you a manufacturer? What about warranty and after-sales service?
Yes, we are professional manufacturers of testing equipment. All machines include 12-month warranty with free maintenance. We provide technical support via email, phone, or video chat with solutions typically provided within 24-48 hours.
What is the delivery time?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special priority handling.
Do you accept customization and branding?
Yes, we offer both standard and customized machines according to your specifications. OEM and ODM services including logo placement are available.
How do I install and operate the machine?
Most machines are shipped fully assembled. We provide English operation manuals and videos. Simply connect power and begin testing. On-site installation assistance is available when necessary.
