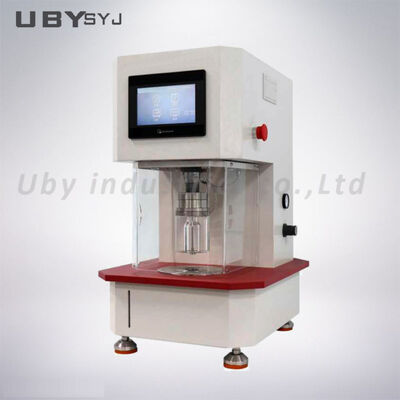

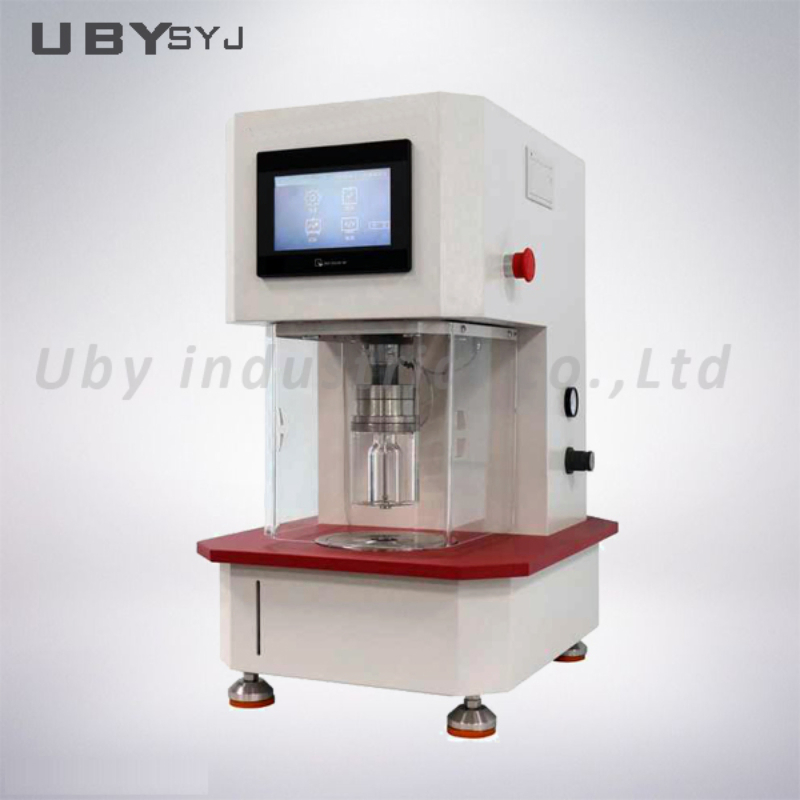

UP-8011 High Precision Textile Fabric Bursting Strength Tester Bursting Strength Tester Diaphragm

The Fabric Bursting Tester is designed to measure the physical properties of textiles, including bursting strength and bursting expansion. This instrument is widely used in textile manufacturing for knitted fabrics, woven fabrics, non-woven fabrics, laminated fabrics, and various other textile processes.

Additionally, the tester can evaluate the mechanical properties of materials such as plastic films, composite films, and paper products.

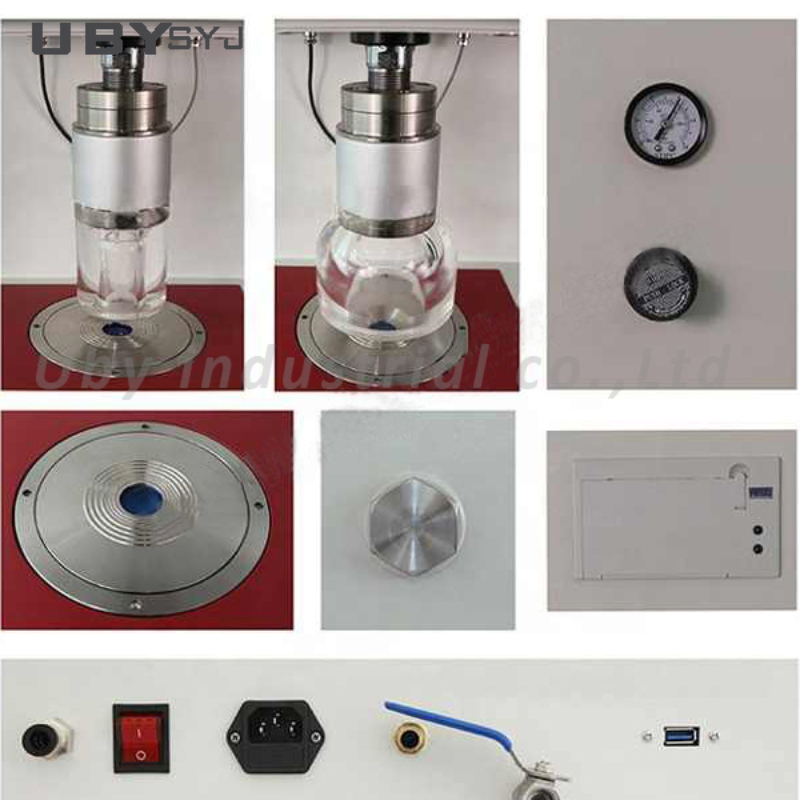

The testing methodology involves clamping the sample on an extendable membrane and applying liquid or gas pressure to expand both the membrane and sample until rupture occurs. This process measures the sample's bursting strength and bursting expansion.

Two specific methods are employed: hydraulic method (increasing liquid volume to expand the diaphragm) and pneumatic method (increasing gas volume for expansion).

• Hydraulic method compliant with international standards
• Touch screen control with intuitive interface and sensitive touch response
• Pneumatic clamping with adjustable pressure to prevent sample slippage or damage
• High-transparent plexiglass test cover with built-in LED lighting for clear observation
• Magnetic installation for easy disassembly and replacement
• Automatic induction blasting system for sensitive and reliable operation
• External organic glass cover for enhanced safety during operation
• AC servo drive system with synchronous pulley for low noise and high precision
• High-speed AD and processor for superior sampling frequency and test accuracy

We provide comprehensive Consultative Selling services throughout the entire business process:

• Customer Inquiry: Technical requirement discussions, product recommendations, and competitive pricing
• Customization Process: Technical drawings, reference photos, and final solution confirmation
• Production & Delivery: Production monitoring, quality confirmation, calibration services, and timely shipping
• Installation & Support: Field installation and comprehensive after-sales support
