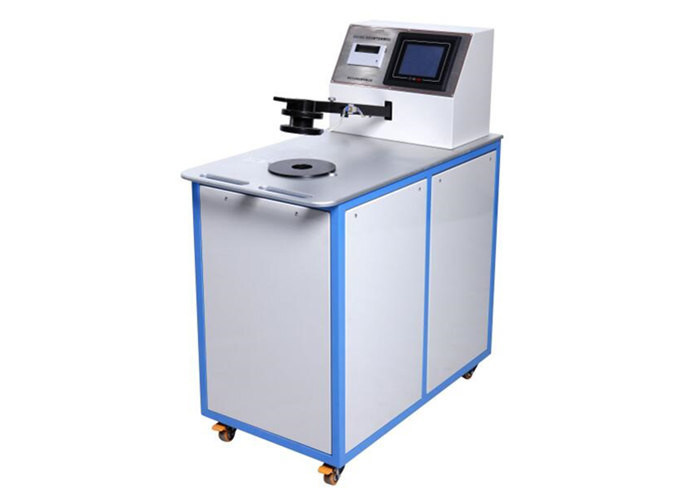

ASTM D737 Air Permeability Fabric Testing Machine With High Precision Pressure Sensor

ASTM D737 Air Permeability Fabric Testing Machine With High Precision Pressure Sensor
ASTM D737 Air Permeability Fabric Testing Machine With High Precision Pressure Sensor

Large Image :  ASTM D737 Air Permeability Fabric Testing Machine With High Precision Pressure Sensor

Product Details:
Place of Origin: Guangdong,China(Mainland)
Brand Name: HTI
Certification: ASTM D737, ISO 9237/7231, BS 5636
Model Number: HTF-020
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood box
Delivery Time: 10-15 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per month
Detailed Product Description
Power: Electronic Model Number: HTF-020
Usage: Air Permeability Testing Dimension: 520×850×1050mm
Weight: 55KG Test Area &Test Fixture: 20cm² And 38c㎡(Ø 70mm) ; 5cm²,25cm²,50cm² And 100c㎡ (optional)
Fabric Thickness: ≤12mm Test Pressure:: 0-1000Pa Could Be Preset
High Light:

textile testing instrument

,

textile test equipment

Textile Air Permeability Testing Instrument With ASTM D737, ISO 9237/7231, BS 5636



Applicable Range:

Used for testing the air permeability of various textile fabrics, textile manufactures, including industrial fabrics, nonwoven fabrics and other materials permeable to air.





Features:

1. Automatically change the pore plate (8 pcs), fast and convient, no personal error.

2. Intelligent and flexible touch control interface 320*240 size. fully display its dynamic test.

3. Use draught fan with muffler device, no noise during the test.

4. This machine uses high precision pressure sensor;

5. Automatically fasten clamps, seal in good effect;

6. Data reading and printing, units select-able and air permeability auto conversion;

7. Upper/lower clamps and air tube made from aviation aluminum material by surface oxidation procedure;

8. Automatically measure the air permeability for all kinds of sample;

9. Fast test speed, each test could be finished within only 1 minute,.

10. Program could be Chinese or English display.





Technical parameters:

Measuring Unit: mm/s,L/m2/s,cm3/cm2/s,dm/min,L/dm2/min,m/min,m/h,cfm

Test Accuracy better than ±2%

Test Pressure: 0-1000Pa could be preset

Air permeability: 0.2~13000mm/s

Measuring error:≤±2%

Fabric thickness could be: ≤12mm

Air regulation:data feedback dynamic regulation

Test Area &Test fixture: 20cm² and 38c㎡(Ø 70mm) ; 5cm²,25cm²,50cm² and 100c㎡ (optional)

Output: inside stylus printer

Power Source: 220V±10% , 50Hz, 800W

External Dimension: 520×850×1050mm

Pore plate (nozzle): 8 pcs, automatically changeable by machine, no need to change it by hand

Net weight: 55Kg





Applicable standards:

WSP 70.1 (05),EN 12114, EDANA 140.2-99, ,GB/T5453, GB/T13764, EN ISO9237, ISO7231, ISO5636, BS5636, DIN 53887, ASTM D737, JIS L1096, BS5636
