Dom /Produkty/Uniwersalna maszyna testująca/UP-2000 Bursting Tensile Testing Equipment with 20 N to 5 kN Max Test Force ±1.0% Accuracy and 120mm Effective Test Width

UP-2000 Bursting Tensile Testing Equipment with 20 N to 5 kN Max Test Force ±1.0% Accuracy and 120mm Effective Test Width

1
MOQ
Zbywalny
Cena £
UP-2000 Bursting Tensile Testing Equipment with 20 N to 5 kN Max Test Force ±1.0% Accuracy and 120mm Effective Test Width
cechy Galeria opis produktu Rozmawiaj teraz
cechy
specyfikacje
Typ struktury: Blat, pojedyncza kolumna
Nr modelu: UP-2000
Przełączanie jednostek miary: Kgf, gf, N, kN, Ibf
Max. Maks. Test force Siła testowa: 20 N, 50 N, 100 N, 200 N, 500 N, 1 kN, 2 kN, 5 kN
Efektywna szerokość testu: 120mm
Efektywny skok rozciągający (przesuw poprzeczki): 800mm
Dokładność: ±1,0%
Rozdzielczość siły: 1/50000
Zakres pomiaru obciążenia: 0,2% - 100% pełnej skali (FS)
Dodatkowa usługa: Wsparcie dostosowywania klienta.
Podstawowe informacje
Miejsce pochodzenia: Chiny
Nazwa handlowa: YOUBI
Orzecznictwo: CE,ISO
Numer modelu: UP-2000
Zapłata
Szczegóły pakowania: 30 sztuk/miesiąc
Czas dostawy: 5-10 dni roboczych
Zasady płatności: D/P, T/T, Western Union, PAYPAL
Możliwość Supply: Profesjonalne drewniane opakowanie kartonowe eksportowe
opis produktu
UP-2000 Bursting Tensile Testing Equipment For Paper Textile Packaging and Other Industries
Product Overview
The UP-2000 Bursting Tensile Testing Equipment is designed to determine the maximum pressure that sheet materials (such as paper, textiles, non-woven fabrics, etc.) can withstand in a vertical plane. It simulates the process of a material being subjected to multi-directional uniform pressure until it ruptures, and achieves bursting testing function by selecting a "bursting fixture" to evaluate the physical strength and durability of the material.
Compliance Standards
ISO 2758, TAPPI T 403, GB/T 454, ISO 2759, TAPPI T 810, GB/T 1539, ISO 13938-1, ASTM D3786
Technical Specifications
Item Parameters
Max. Test Force 20 N, 50 N, 100 N, 200 N, 500 N, 1 kN, 2 kN, 5 kN
Transducer Accuracy 0.01%
Accuracy Class Class 0.5
Structure Type Benchtop, Single Column
Tensile Force Indicated Error Limit Within ±0.5% of indicated value
Load Measurement Range 0.2% - 100% of full scale (FS)
Force Resolution 1/50,000 of max. test force (FS)
Crosshead Speed Adjustment Range 0.005 - 500 mm/min
Crosshead Speed Relative Error Within ±0.5% of set value
Displacement Indicated Error Limit Within ±0.2% of indicated value
Min. Displacement Resolution 0.04 µm
Effective Test Width 120 mm
Effective Tensile Stroke (Crosshead Travel) 800 mm
Large Deformation Measurement Range 10 - 800 mm
Overall Dimensions (W × D × H) 420 × 280 × 1150 mm
Machine Weight 85 kg
Power supply 220V, 50Hz, 0.4KW
Product Images

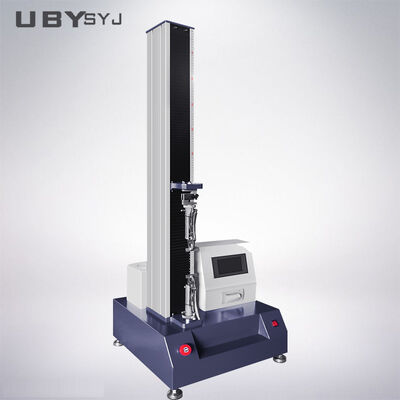

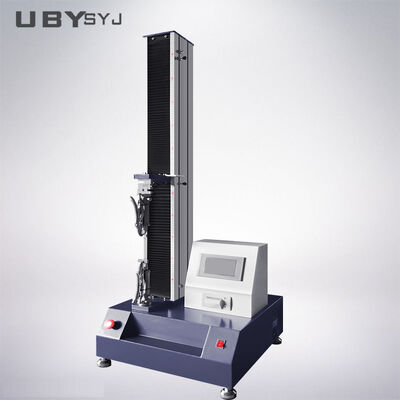

UP-2000 Bursting Tensile Testing Equipment with 20 N to 5 kN Max Test Force ±1.0% Accuracy and 120mm Effective Test Width 0 UP-2000 Bursting Tensile Testing Equipment with 20 N to 5 kN Max Test Force ±1.0% Accuracy and 120mm Effective Test Width 1
Our Service Process
During the entire business process, we offer consultative selling services:
  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Customization Process: Create drawings for customized requirements, provide reference photos, and confirm final solutions
  • Production & Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and arrange shipping
  • Installation & Support: Provide field installation services and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months of free maintenance, extended by 2 months to account for sea transportation. If your machine doesn't work, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.
What about the delivery term?
For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment. We can make special arrangements for urgent requirements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you simply need to connect the power cable and begin operation. We also offer on-site installation assistance when necessary.
