Product Overview

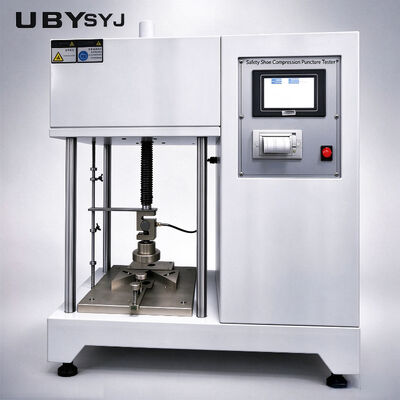

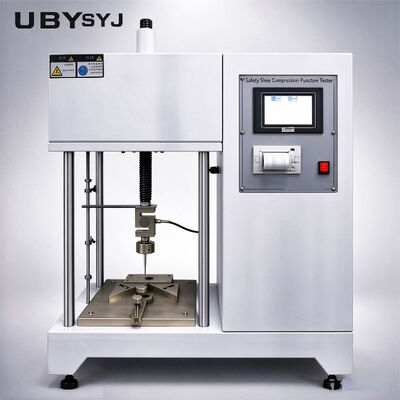

The UP-4037 Safety Shoe Compression & Puncture Resistance Tester is a dual-function test instrument for safety footwear. It can perform compression test for safety shoe steel toe caps and puncture resistance test for shoe soles by changing different fixtures.
This machine meets international testing standards including ISO 20344, CAN/CSA-Z195 and GB/T 20991. It is widely used in safety footwear factories, third-party testing laboratories and quality inspection institutions.
Key Technical Specifications
Model: UP-4037
Max Sensor Capacity: 20KN
Force Resolution: 1/20000
Accuracy: ±1%
Compression Speed: 5±2mm/min, 0~200mm/min stepless speed regulation
Motor: AC variable frequency motor
Fixtures: 1 set compression fixture + 1 set puncture fixture
Print function: Optional
Dimension: 82×58×71 cm
Weight: Approx. 48 kg
Power Supply: AC 220V, 50Hz
Product Features
- Touch screen controller, simple and intuitive operation
- Dual test function: steel toe compression test and sole puncture test
- High precision force sensor, stable test data
- Support optional built-in printer for test report output
- Compact structure, easy installation and movement
Application

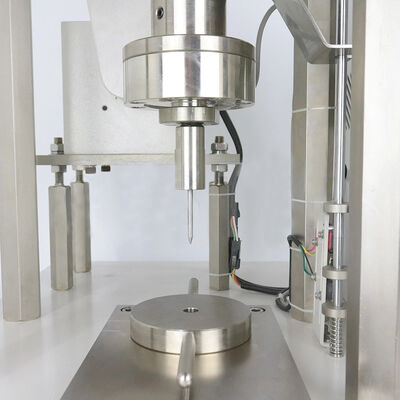

Used to verify the protection performance of safety shoes. For steel toe compression test: apply pressure on steel toe and measure deformation to evaluate toe protection ability. For sole puncture test, test the anti-puncture performance of shoe sole, following EN and ANSI test requirements.
Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.
4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.
FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
