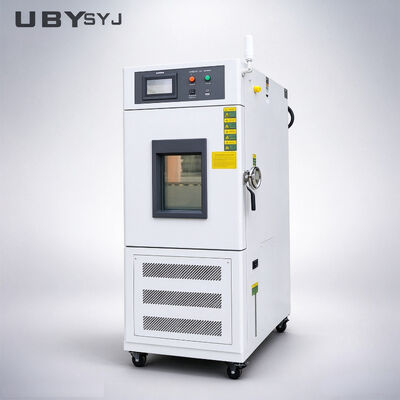

Custom-Built 120L Environmental Test Chamber | High-Low Temperature Chamber with SUS304 Stainless Steel and Programmable Controls UP-6195

Custom‑Built 120L Environmental Test Chamber | High‑Low Temperature Chamber UP-6195

Product Overview

The UP-6195 high-low temperature chamber is a programmable environmental test chamber designed for temperature-humidity cycling and reliability validation of automotive components, electronics, plastic and rubber materials. Built with SUS304 stainless steel inner tank and imported core components, this 120L test chamber delivers stable, repeatable environmental simulation under extreme high-low temperature conditions. It supports custom temperature-cycling profiles and comes with comprehensive built-in safety protection mechanisms for laboratory and industrial quality control testing.

Technical Specifications

Core Construction & Key Features

Chamber Material: Inner chamber: matte SUS#304 stainless steel; Outer cabinet: cold rolled steel with powder-coated finish; Insulation: rigid polyurethane foam + glass wool

Heating System: Spring-type nickel-chromium heating wire for uniform heat distribution and rapid temperature response

Refrigeration System: Imported Taikang fully-enclosed compressor, air-cooled condenser, eco-friendly refrigerant; key refrigeration spare parts from Saginomiya, Danfoss

Air Circulation: Multi-wing wind wheel with adjustable louver circulation system to guarantee temperature-humidity uniformity

Humidfication System: UL-shape stainless-steel steam humidifier, auto water-supply with water-shortage alarm & shutdown protection

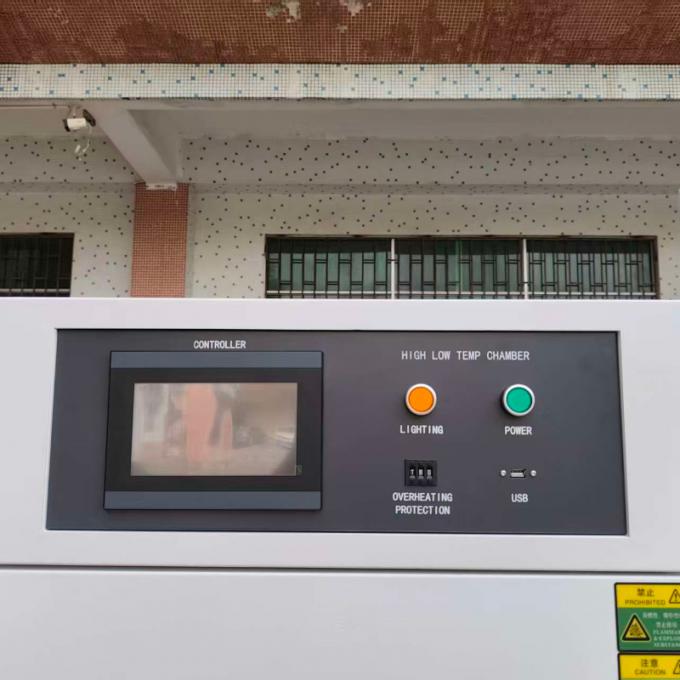

Control System: Imported touch-screen controller. Store up to 120 programs /1200 segments; power-off memory; real-time curve display; RS232 & USB interface

Multiple Safety Protections: Compressor high-pressure / overheat / over-current protection, anti-dry-burn protection, over-temperature protector, water-shortage alarm, short-circuit protection etc.

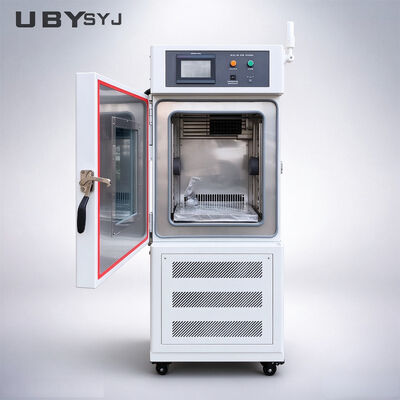

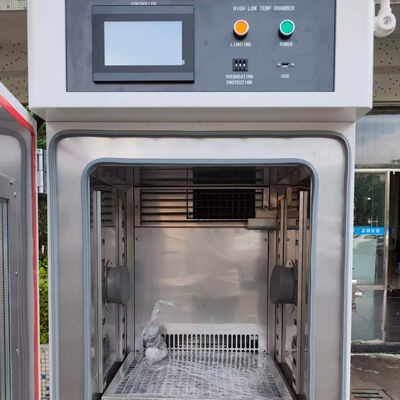

Observation Door: Triple-vacuum-layer viewing window with built-in LED chamber lighting

Applications

Widely used for environmental reliability, temperature cycling, aging test for automotive spare parts, electronic components, plastic, polymer, rubber and industrial finished products in quality-control laboratories.

Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.

2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.

4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.

FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
