JEDEC Standard HAST Test Chamber with SUS316 Stainless Steel for 105℃~135℃ Temperature Range

1 Unit
MOQ
Negotiable
Price
JEDEC Standard HAST Test Chamber with SUS316 Stainless Steel for 105℃~135℃ Temperature Range
Features Gallery Product Description Chat Now
Features
Specifications
Temperature Uniformity: ≤±2.0℃
Model NO.: UP-6124
Pressure Range: 1.2~2.89MPa
Specification: Refer To The Actual Size Specifications
Temperature Fluctuation: ≤±0.5℃
Temperature Range: 100℃ ~ 135℃ (non-saturated)
Control Accuracy: Temperature ≤±0.5℃; Resolution:0.1℃
Product Name: Environmental Test Chamber
Custom Service: OEM,ODM
Humidity Range: 75% ~100 % Rh
Highlight:

JEDEC Standard HAST Test Chamber

,

SUS316 Stainless Steel HAST Test Chamber

,

105℃~135℃ Temperature Range Environmental Test Chamber
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6124
Payment & Shipping Terms
Packaging Details: Professional Export Wooden Box Packaging
Delivery Time: 7-15 work days
Payment Terms: T/T,D/P,Western Union,Paypal
Supply Ability: 30 Unit/month
Product Description
JEDEC Standard HAST Stress Aging Test Chamber for Electronic Reliability UP-6124
Product Overview

Nonsaturated HAST accelerated stress test chamber fully compliant with JESD22-A102-C, JESD22-A110-B and IEC 60068-2-66 standards. Designed for component qualification and reliability validation with SUS316 circular double-layer inner tank that eliminates condensation risk.

Features USB data logging, RS232/LAN remote monitoring, 269-group program storage, and multiple safety interlock mechanisms for lab-grade stable performance in qualification testing.

Applications

Suitable for accelerated humidity stress reliability testing of:

  • Semiconductor chips and IC packaging
  • PCB and automotive electronics
  • Magnetic materials and electronic devices

Widely used in semiconductor factories, auto-electronics manufacturers, material laboratories, quality inspection institutions, and research institutes.

Important: This equipment shall NOT test flammable, explosive, volatile, corrosive, or strong-electromagnetic-emission samples.

Technical Specifications
Parameter Specification
Product Name HAST Chamber / Non-Saturated High-Pressure Accelerated Stress Test Chamber
Inner Chamber Size Φ400 × D500 mm, circular chamber (customizable)
Outer Dimension (W×D×H) ≤700 x ≤1100 x ≤1600 mm
Inner Tank Material SUS 316 stainless steel
Outer Cabinet Material High-grade painted steel plate
Temperature Range 100℃ ~ 135℃ (non-saturated)
Temperature Fluctuation ≤±0.5℃
Temperature Uniformity ≤±2.0℃
Humidity Range 75%RH ~ 100%RH
Humidity Fluctuation ≤±2.5%RH
Humidity Uniformity ≤±3.0%RH
Working Pressure 1.2-2.89 kg/cm² (0.02-0.289 MPa, gauge pressure)
Heating up Time RT to 135℃ approx. 50 min
Pressurizing Time Normal pressure to 2 kg/cm² approx. 50 min; External air source: approx.5 min

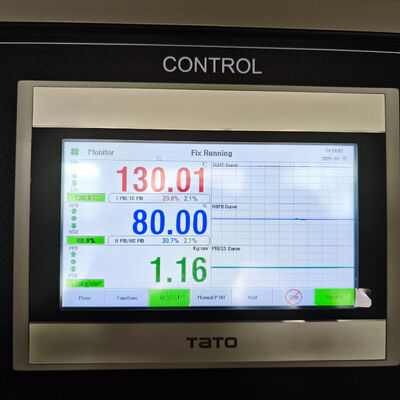

Control System 7-inch TFT color touch screen, PID auto-calculation
Control Accuracy Temperature ≤±0.5℃; Resolution:0.1℃
Communication Interface USB, optional RS-232 / RS-485, LAN remote monitoring
Program Capacity 269 groups, 50 segments per program
Power Supply AC 220V
Installed Power Approx.4 kW, Max.18A
Safety Features Multi-layer protection: over-temp, over-pressure, water shortage, auto pressure relief

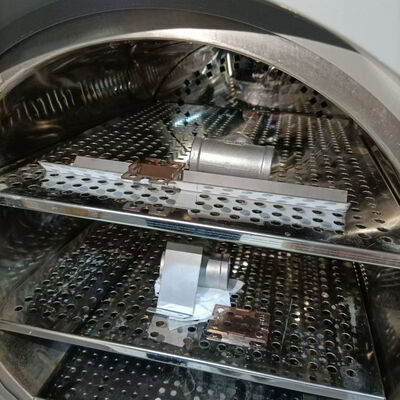

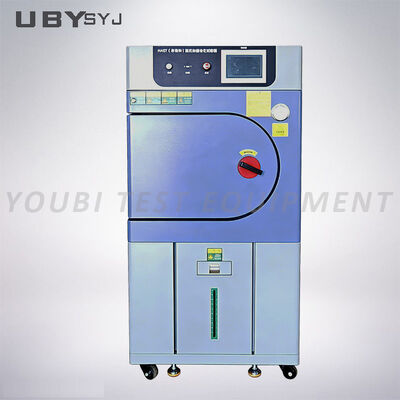

HAST Test Chamber Internal View Precision-Controlled HAST Test Chamber for Semiconductor Stability Evaluation HAST Test Chamber External View and Control Panel
Our Service Process
Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing.
Specifications Customization: Create detailed drawings for custom requirements, provide reference photos, and confirm final solution and pricing.
Production and Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and ensure timely delivery.
Installation and After-Sales: Provide installation support and comprehensive after-sales service.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment with free maintenance. We extend to 14 months considering sea transportation. For technical issues, contact us via email or phone - we provide solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Urgent requirements receive special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services including logo placement.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect power and begin operation. On-site installation assistance available when necessary.
