Name: HAST Test Chamber with SUS316 Stainless Steel for 105℃~135℃ Temperature and 1.2~2.89MPa Pressure Range Accelerated Stress Testing
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-6124
Price: negotiable USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Temperature Uniformity: ≤±2.0℃

Model NO.: UP-6124

Pressure Range: 1.2~2.89MPa

Specification: Refer To The Actual Size Specifications

Temperature Fluctuation: ≤±0.5℃

Temperature Range: 100℃ ~ 135℃ (non-saturated)

Control Accuracy: Temperature ≤±0.5℃; Resolution:0.1℃

Product Name: Environmental Test Chamber

Custom Service: OEM,ODM

Humidity Range: 75% ~100 % Rh

Highlight:

SUS316 Stainless Steel HAST Test Chamber

105℃~135℃ Temperature Range Environmental Test Chamber

1.2~2.89MPa Pressure Range Accelerated Stress Test Chamber

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-6124

Payment & Shipping Terms

Packaging Details: Professional Export Wooden Box Packaging

Delivery Time: 7-15 work days

Payment Terms: T/T,D/P,Western Union,Paypal

Supply Ability: 30 Unit/month

Gallery

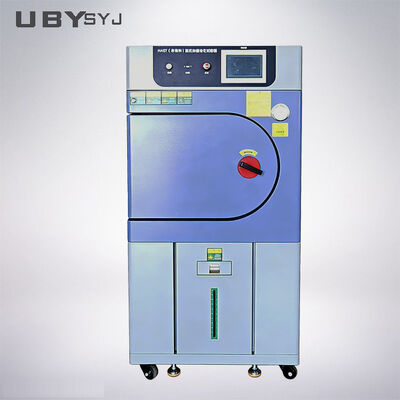

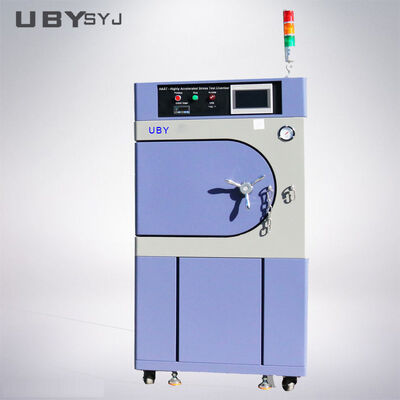

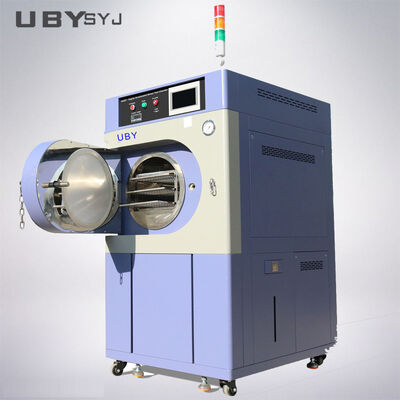

HAST Test Chamber with SUS316 Stainless Steel for 105℃~135℃ Temperature and 1.2~2.89MPa Pressure Range Accelerated Stress Testing

Product Description

HAST Stress Test Machine UHAST BHAST Testing for Local Electronic Manufacturing Plants UP-6124

Product Overview

Non-saturated HAST chamber performs UHAST & BHAST accelerated stress testing for local electronics and PCB manufacturers. Built with SUS316 double-layer inner tank to prevent condensation and equipped with 7-inch English-switchable touch screen, USB data export, and multi-level safety protection. Custom chamber sizes and sample racks are available. Designed for stable long-term operation to support mass-production quality control for electronic components.

Compliance Standards

IEC 60068-2-66
JESD22-A102-C
JESD22-A110-B
JESD22-A118
GB/T 2423.40-1997

Technical Specifications

Item	Specification
Product Name	HAST Chamber / Non-Saturated High-Pressure Accelerated Stress Test Chamber
Inner Chamber Size	Φ400 × D500 mm, circular chamber (customizable)
Outer Dimension (W×D×H)	≤700 x ≤1100 x ≤1600 mm
Inner Tank Material	SUS 316 stainless steel
Outer Cabinet Material	High-grade painted steel plate
Temperature Range	100℃ ~ 135℃ (non-saturated)
Temperature Fluctuation	≤±0.5℃
Temperature Uniformity	≤±2.0℃
Humidity Range	75%RH ~ 100%RH
Humidity Fluctuation	≤±2.5%RH
Humidity Uniformity	≤±3.0%RH
Working Pressure	1.2-2.89 kg/cm² (0.02-0.289 MPa, gauge pressure)
Heating up Time	RT to 135℃ approx. 50 min
Pressurizing Time	Normal pressure to 2 kg/cm² approx. 50 min; External air source: approx.5 min
Control System	7-inch TFT color touch screen, PID auto-calculation
Control Accuracy	Temperature ≤±0.5℃; Resolution:0.1℃
Communication Interface	USB, optional RS-232 / RS-485, LAN remote monitoring
Program Capacity	269 groups, 50 segments per program
Power Supply	AC 220V
Installed Power	Approx.4 kW, Max.18A
Safety Features	Multi-layer protection: over-temp, over-pressure, water shortage, auto pressure relief

Product Images

Our Service Process

Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer specifications.

Specifications Customization Process: Create detailed drawings for custom requirements, provide reference photos for product appearance, and finalize solutions with confirmed pricing.

Production and Delivery Process: Manufacture machines according to confirmed PO requirements, provide production progress photos, conduct factory or third-party calibration, and ensure timely delivery.

Installation and After-Sales Service: Provide field installation services and comprehensive after-sales support to ensure optimal performance.

Frequently Asked Questions

Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2-month extension to account for sea transportation. If your machine experiences issues, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days. For machines not in stock: 15-20 working days after payment confirmation. We accommodate urgent requirements with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your specific requirements. We provide OEM and ODM services, including placing your logo on the equipment.

How can I install and use the machine?

We provide English operation manuals and videos via email upon order confirmation. Most machines are shipped fully assembled - simply connect the power cable to begin operation. On-site installation assistance is available when necessary.
