ISO12048 Box Compression Tester with 1200×1200×1500mm Test Space and ±1% Accuracy for Packaging Stacking Tests

1 Unit
MOQ
Negotiable
Price
ISO12048 Box Compression Tester with 1200×1200×1500mm Test Space and ±1% Accuracy for Packaging Stacking Tests
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Packaging Testing Equipment
Model NO.: UP-6035
Accuracy: ±1%
Measurement Range: (50~10000)N
Resolution: 0.1n
Return Speed: 100mm/min
Measurement Size: (1200*1200*1200) Other Dimensions Can Be Customized
Additional Service: Support Customer Customization.
Highlight:

ISO12048 Box Compression Tester

,

1200×1200×1500mm Pallet Compression Tester

,

±1% Accuracy Packaging Stacking Test Machine
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6035
Payment & Shipping Terms
Packaging Details: Professional export packing
Delivery Time: 5-15 work days
Payment Terms: D/P,T/T,Western Union,Paypal
Supply Ability: 30 Unit/month
Product Description
Box Compression Tester Pallet Compression Tester ISO12048 Packaging Stacking Test Machine UP-6035
Product Overview

The Carton Pallet Compression Tester is a professional packaging compression resistance testing instrument. It applies continuous and uniform vertical pressure on cartons, palletized packages and packaging containers to measure compression strength, stacking safety load and deformation under long-term stacking load. It simulates the actual stacking pressure during warehouse storage and transportation, helping customers evaluate packaging stacking safety, optimize box structure and avoid collapse damage. Equipped with precision force sensor and PLC touch control system, it features stable loading, high test accuracy, automatic data recording and report output.

Compliance Standards
  • ISO 12048 Compression test for complete, filled transport packages
  • ASTM D6995 Standard Test Method for Compressive Resistance of Shipping Containers
  • ASTM D4577 Compression Resistance of Containers
  • ISTA 1A / 1B / 2A / 3E Packaging Integrity Test
  • GB/T 4857.3 Packaging transport package - Compression test method
Applications
  • Corrugated cartons, cardboard boxes, honeycomb packaging containers
  • Palletized cargo, export shipping packages, cross-border e-commerce packaging
  • Furniture, home appliances, electronics, hardware, food and medicine packaging
  • Plastic turnover boxes, paper drums, plastic drums and other packaging containers
Technical Specifications
Item Specification
Test Force Range 5kN / 10kN / 20kN / 50kN (Optional)
Force Accuracy ±1% FS
Test Space (W×D×H) 1200×1200×1500mm (Customizable)
Loading Speed 1~20 mm/min Adjustable
Test Mode Compression Destruction Test / Constant Load Holding Test
Control System Touch Screen + PLC Precision Control
Data Output Automatic saving, PC report export (Optional)
Working Environment 0℃~40℃, Humidity ≤80% Non-condensing
Power Supply AC220V 50Hz / Custom 380V
Core Advantage Uniform pressure loading, overload protection, anti-tilt structure, meets international certification
Product Images

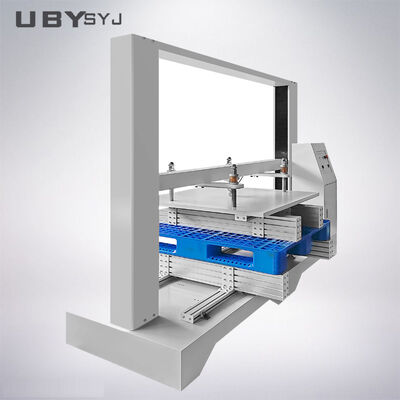

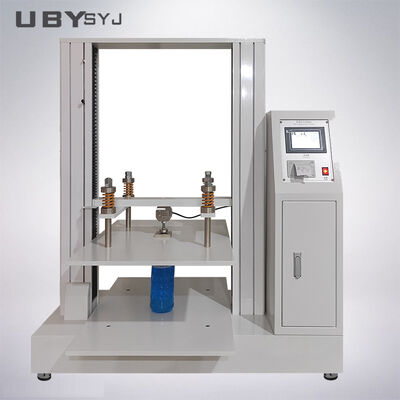

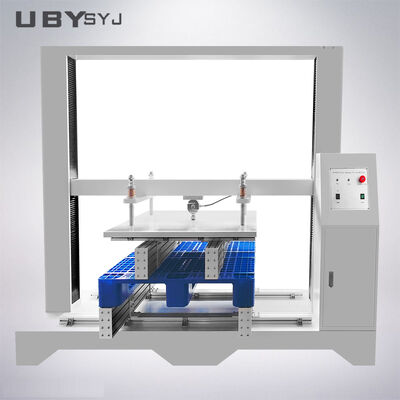

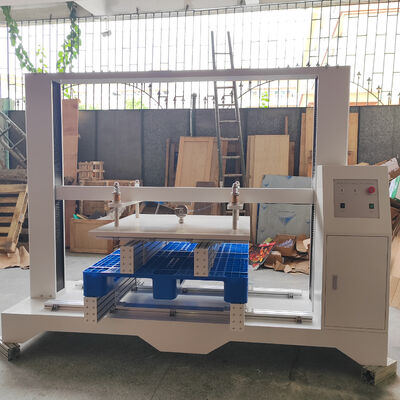

Box Compression Tester UP-6035 front view Box Compression Tester UP-6035 side view Box Compression Tester UP-6035 control panel
Our Service Process

During the entire business process, we offer Consultative Selling services:

  • Customer Inquiry: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Customization Process: Create technical drawings, provide reference photos, and confirm final solutions and pricing
  • Production & Delivery: Manufacture according to specifications, provide production updates, conduct calibration, and ensure timely delivery
  • Installation & Support: Provide field installation and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months of free maintenance, extended to 14 months considering sea transportation. If your machine requires service, contact us via email or phone. We will diagnose the issue and provide solutions within 24-48 hours.

What about the delivery term?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. We accommodate urgent requirements with special arrangements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the equipment.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable to begin operation. We offer on-site installation assistance when necessary.
