UP-6000 Crush Tester with 5000N Force Measuring Range, 7-inch Touch Screen, Complies with ISO and TAPPI Standards

1
MOQ
Negotiable
Price
UP-6000 Crush Tester with 5000N Force Measuring Range, 7-inch Touch Screen, Complies with ISO and TAPPI Standards
Features Gallery Product Description Chat Now
Features
Specifications
Additional Service: Support Customer Customization.
Display: Digital
Force Measuring Range: 0~5000N
Delivery Terms: CIF, DDP, DDU, FedEx, DHL, FOB
Maximum Test Stroke: 70 Mm
Test Force Accuracy: ±0.5% FS
Press Plate Diameter: φ100 Mm
Model NO.: UP-6000
Highlight:

5000N Force Measuring Range Crush Tester

,

7-inch Touch Screen Compression Testing Machine

,

ISO and TAPPI Standards Packaging Testing Equipment
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-6000
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union,Paypal
Supply Ability: 20 Unit/month
Product Description
UP-6000 Crush Tester
The UP-6000 Crush Tester complies with ISO and TAPPI standards and is ideal for packaging factories and third-party laboratories.
Product Introduction
The Crush Tester is a professional desktop compression testing instrument specially designed for paper, cardboard, corrugated board, and packaging materials. It can complete Ring Crush Test (RCT), Edge Crush Test (ECT), and Flat Crush Test (FCT).
Equipped with a high-precision load cell and 7-inch touch screen intelligent control system, it features stable test speed, automatic data recording, calculation, and report output. The compact vertical double-column structure offers simple operation and strong anti-interference capability, making it widely used for incoming material inspection, production quality control, and laboratory material performance research in the packaging industry.
Compliance Standards
  • ISO 12192: Paper and board - Determination of ring crush resistance
  • ISO 7263: Corrugated fibreboard - Determination of flat crush resistance
  • TAPPI T 810: Edge Crush Test of Corrugated Fiberboard
  • TAPPI T 818: Ring Crush Test for Paper
  • GB/T 2679.8: Determination of ring crush resistance of paper and board
  • GB/T 6543: Test methods for single wall corrugated fiberboard
Technical Specifications
Model UP-6000 Crush Tester
Test Modes RCT Ring Crush, ECT Edge Crush, FCT Flat Crush
Force Measuring Range 0 ~ 5000 N
Test Force Accuracy ±0.5% FS
Compression Speed 12.5 mm/min (Standard constant speed)
Press Plate Diameter φ100 mm
Maximum Test Stroke 70 mm
Control System Color Touch Screen + PLC Intelligent Control
Data Output Automatic calculation, storage, data export and report printing
Overload Protection E-stop emergency stop button, overload automatic protection
Power Supply AC 220V 50Hz
Overall Dimension 420(L) × 380(W) × 620(H) mm
Net Weight 45 kg
Working Environment Temperature 10℃~35℃, Humidity 45%~75% RH
Product Images

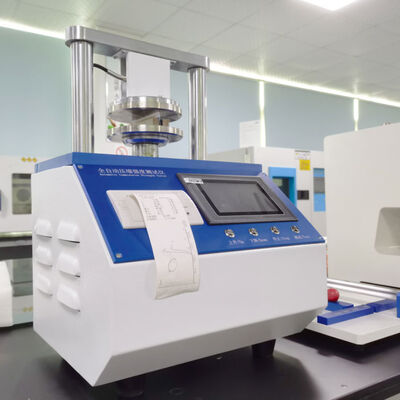

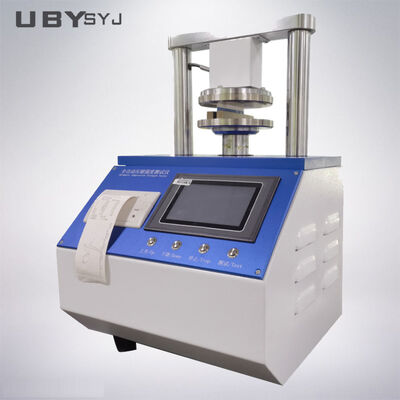

UP-6000 Crush Tester front view showing control panel and testing area UP-6000 Crush Tester side view displaying compact design and construction
Our Service
During the entire business process, we offer consultative selling services:
  • Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing.
  • Specifications Customization Process: Create drawings for customized requirements, provide reference photos, and confirm final solutions and pricing.
  • Production and Delivery Process: Manufacture according to confirmed requirements, provide production progress photos, conduct calibration, and arrange timely shipping.
  • Installation and After-Sales Service: Provide field installation support and comprehensive after-sales service.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are a professional manufacturer of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months of free maintenance, extended by 2 months to account for sea transportation. If your machine doesn't work, contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.
What about the delivery term?
For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment receipt. We can make special arrangements for urgent requirements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you simply need to connect the power cable and begin operation. We also offer on-site installation assistance when necessary.
