UP-6000 ISO TAPPI Standard UP-6000 Paper Ring Edge Flat Crush Tester
UP-6000 ISO TAPPI Standard UP-6000 Paper Ring Edge Flat Crush Tester is a professional desktop compression testing instrument specially designed for paper, cardboard, corrugated board and packaging materials.
Product Introduction
This crush tester can complete Ring Crush Test (RCT), Edge Crush Test (ECT), and Flat Crush Test (FCT). Equipped with high-precision load cell and 7-inch touch screen intelligent control system, it features stable test speed, automatic data recording, calculation and report output.
Compact vertical double-column structure ensures simple operation and strong anti-interference ability. Widely used for incoming material inspection, production quality control and laboratory material performance research in packaging industry.
Compliance Standards
- ISO 12192: Paper and board - Determination of ring crush resistance
- ISO 7263: Corrugated fibreboard - Determination of flat crush resistance
- TAPPI T 810: Edge Crush Test of Corrugated Fiberboard
- TAPPI T 818: Ring Crush Test for Paper
- GB/T 2679.8: Determination of ring crush resistance of paper and board
- GB/T 6543: Test methods for single wall corrugated fiberboard
Technical Specifications
| Parameter |
Specification |
| Capacity |
2000N |
| Accuracy |
0.01kg |
| Platen dimension |
100×100mm (or customize by user needs) |
| Test stroke |
90mm (or customize by user needs) |
| Test speed |
12.7mm/min |
| Return function |
Self-return after test finishing |
| Weight |
60kg |
| Power |
1φ, 220V/50Hz |

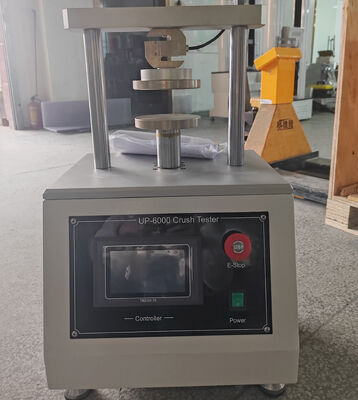

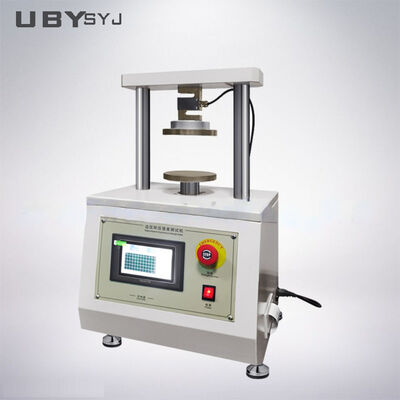

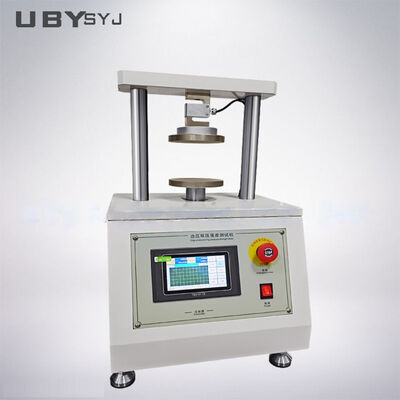

Product Images
Our Service
During the whole business process, we offer Consultative Selling services:
Customer Inquiry Process
Discussing testing requirements and technical details, suggesting suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.
Specifications Customize Process
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
Production and Delivery Process
We produce machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do factory calibration or third-party calibration (as per customer requirements). Check and test all details and then arrange packing. Delivering products within confirmed shipping time.
Installation and After-Sale Service
Defines installing products in the field and providing after-sales support.
Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance, while considering sea transportation, we can extend 2 months for our customers.
If your machine doesn't work, you can send us an e-mail or call us. We will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines: If we have stock in the warehouse, delivery is 3-7 working days; If there is no stock, normally, the delivery time is 15-20 working days after payment is received; If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machines are shipped as complete units, which means they are already installed. You just need to connect the power cable and start using it. If necessary, we can also assist you to install your machine on-site.
