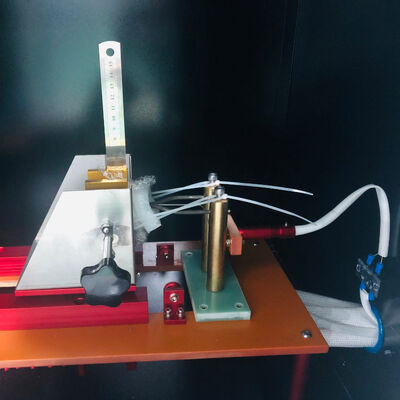

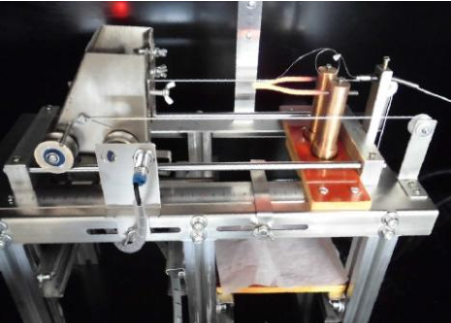

The Glow Wire Flammability Test Chamber simulates thermal stress caused by overheated electrical components under fault conditions. This equipment evaluates the fire hazard risk of solid insulating materials and finished electronic products by applying a standardized electrically heated glow wire onto test specimens.

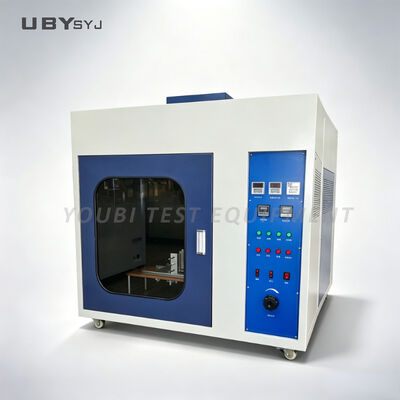

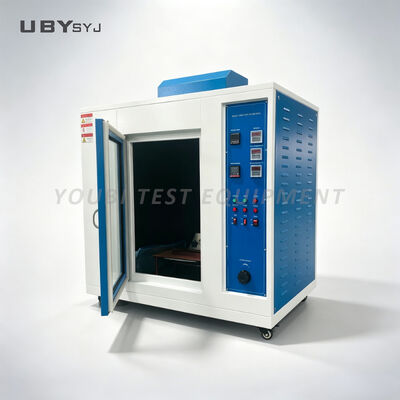

The unit features an integrated chamber control cabinet design, equipped with a transparent observation window, independent exhaust system, and digital control panel. It automatically records ignition time, flame out time, and after glow time for calculating GWFI and GWIT values. Widely used for incoming inspection, factory quality control, and material R&D in electrical and electronics industries.
| Controller | Touch screen controller | Button controller |
|---|---|
| Glow Wire | Diameter 4mm±0.04mm Ni/Cr(80/20), standard |
| Temperature Range | 500-1000°C ±2°C continuously adjustable |
| Thermocouple | Diameter 0.5mm Type K (Ni/Cr - Ni/Al), armored sheath can withstand temperature -40~1100°C |
| Searing Time | 30s±0.1s (OMRON H5CN-XAN-Z digital timer, 0-9999s, presettable) |
| Light-off Time | 0-999.9 s ± 0.1 s, automatic recording, manual timeout |
| Fireout Time | 0-999.9 s ± 0.1 s, automatic recording, manual timeout |
| Ironing Depth | 7mm ± 0.5 mm |
| Sample Pressure | 1N ± 0.2 N |
| Test Speed | 18±3mm/s |
| Test Background | Black background |
| Test Process | Automatic control, independent convulsions |
| Chamber | ≥0.5m |
| Size | W1100mm×D700mm×H1300mm, exhaust hole Ø100mm (customizable) |
| Control | Using single chip microcomputer + touch screen control |
| Consult Standard | GB/T5169.10-2006, IEC60695-2-10:2000, UL746A |
| Power Supply | 800VA, 220V, 48-60Hz |
Discussing testing requirements and technical details, suggesting suitable products to customer for confirmation. Then quoting the most suitable price according to customer requirements.
Drawing related drawings to confirm with customer for customized requirements. Offering reference photos to show the appearance of the product. Then confirming the final solution and final price with the customer.
Producing machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offering photos to the customer for final confirmation. Then performing factory calibration or third-party calibration (as per customer requirements). Checking and testing all details before arranging packing. Delivering products according to confirmed shipping time and informing the customer.
Defining installation procedures for products in the field and providing comprehensive after-sales support.
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. Generally, we offer 12 months for FREE maintenance. Considering sea transportation, we can extend 2 additional months for our customers.
If your machine doesn't work, you can send us an email or call us. We will try our best to identify the problem through conversation or video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
For our standard machines with available stock: 3-7 working days. For machines without stock: normally 15-20 working days after payment is received. If you are in urgent need, we will make special arrangements for you.
Yes, of course. We can offer not only standard machines but also customized machines according to your requirements. We can also put your logo on the machine, meaning we offer OEM and ODM services.
Once you have ordered testing machines from us, we will send you the operation manual or video in English version through email. Most of our machines are shipped as complete units, meaning they are already installed. You just need to connect the power cable and start using it. If necessary, we can also assist you with on-site installation.
