Features

Specifications

Service Support: OEM ODM

Temperature Accuracy: ±2℃

Specimen Contact Pressure: 1.0 N ±0.2 N

Test Time Setting: 0999.9 s, Resolution ±0.1 s; Standard Test 30 s

Language: Chinese And English

Temperature Range: 500℃ ~ 1000℃ Continuously Adjustable

Temperature Fluctuation: ≤3℃

Model NO.: UP-5019

Highlight:

500℃ ~ 1000℃ Temperature Range Glow Wire Flammability Tester

Touch Screen Controller Fire Hazard Testing Equipment

IEC 60695-2-10 Compliant GWFI GWIT Tester

Basic Infomation

Payment & Shipping Terms

Packaging Details: Professional export packing

Delivery Time: 5-10work days

Payment Terms: D/P,T/T,Western Union

Supply Ability: 20 Unit/month

Gallery

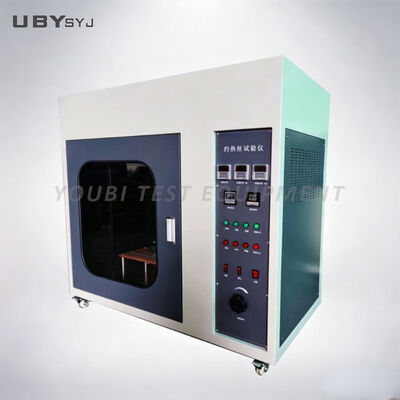

UP-5019 Glow Wire Flammability Tester with 500℃ ~ 1000℃ Temperature Range Touch Screen Controller IEC 60695-2-10 Compliant

Product Description

UP-5019 Glow Wire Flammability Tester Chamber

GWFI GWIT Fire Hazard Testing Equipment

Product Introduction

The Glow Wire Flammability Test Chamber simulates thermal stress caused by overheated electrical components under fault conditions. This equipment evaluates the fire hazard risk of solid insulating materials and finished electronic products by applying a standardized electrically heated glow wire onto test specimens.

The unit features an integrated chamber control cabinet design, equipped with a transparent observation window, independent exhaust system, and digital control panel. It automatically records ignition time, flame out time, and after glow time for calculating GWFI and GWIT values. Widely used for incoming inspection, factory quality control, and material R&D in electrical and electronics industries.

Compliance Standards

IEC 60695-2-10, IEC 60695-2-11, IEC 60695-2-12, IEC 60695-2-13
GB/T 5169.10, GB/T 5169.11, GB/T 5169.12, GB/T 5169.13
UL 746A, VDE 0471-1, IEC 60335-1

Technical Specifications

Parameter	Specification
Controller	Touch screen controller \| Button controller
Glow Wire	Diameter 4mm±0.04mm Ni/Cr(80/20), standard
Temperature Range	500-1000°C ±2°C continuously adjustable
Thermocouple	Diameter 0.5mm Type K (Ni/Cr - Ni/Al), armored sheath withstands temperature -40~1100°C
Searing Time	30s±0.1s (OMRON H5CN-XAN-Z digital timer, 0-9999s, presettable)
Light-off Time	0-999.9 s ± 0.1 s, automatic recording, manual timeout
Fireout Time	0-999.9 s ± 0.1 s, automatic recording, manual timeout
Ironing Depth	7mm ± 0.5 mm
Sample Pressure	1N ± 0.2 N
Test Speed	18±3mm/s
Test Background	Black background
Test Process	Automatic control, independent convulsions
Chamber	≥0.5m
Size	W1100mm×D700mm×H1300mm, exhaust hole Ø100mm (customizable)
Control	Single chip microcomputer + touch screen control
Consult Standard	GB/T5169.10-2006, IEC60695-2-10:2000, UL746A
Power Supply	800VA, 220V, 48-60Hz

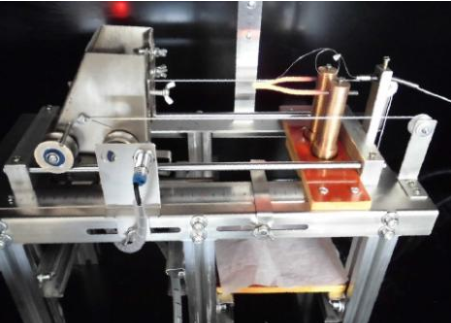

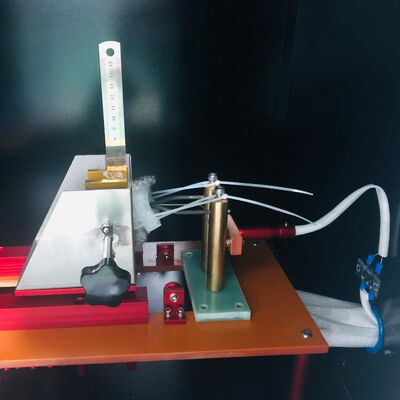

Product Images

Our Service

1) Customer Inquiry Process:

Discussing testing requirements and technical details, suggesting suitable products to customer for confirmation. Then quoting the most suitable price according to customer requirements.

2) Specifications Customize Process:

Drawing related drawings to confirm with customer for customized requirements. Offering reference photos to show product appearance. Confirming final solution and price with customer.

3) Production and Delivery Process:

Producing machines according to confirmed PO requirements. Providing production process photos. After production completion, offering photos for customer confirmation. Performing factory calibration or third-party calibration as required. Testing all details and arranging packing. Delivering products within confirmed shipping time.

4) Installation and After-Sale Service:

Defining installation procedures and providing comprehensive after-sales support.

Frequently Asked Questions

1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. Generally, we offer 12 months for FREE maintenance. Considering sea transportation, we can extend 2 months for our customers.

If your machine doesn't work, you can send us an email or call us. We will try our best to identify the problem through conversation or video chat if necessary. Once we confirm the problem, a solution will be offered within 24 to 48 hours.

2. What about the delivery term?

For standard machines in stock: 3-7 working days.
For non-stock items: Normally 15-20 working days after payment is received.
For urgent needs: We will make special arrangements.

3. Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services and can place your logo on the machine.

4. How can I install and use the machine?

Once you order testing machines from us, we will send you the operation manual or video in English version via email.

Most of our machines are shipped as complete units, already installed. You just need to connect the power cable and start using it. If necessary, we can assist with on-site installation.
