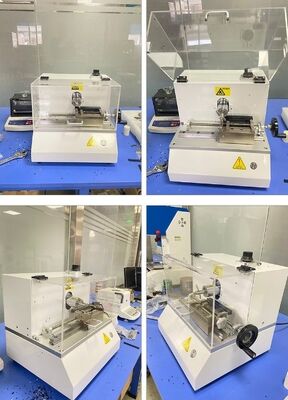

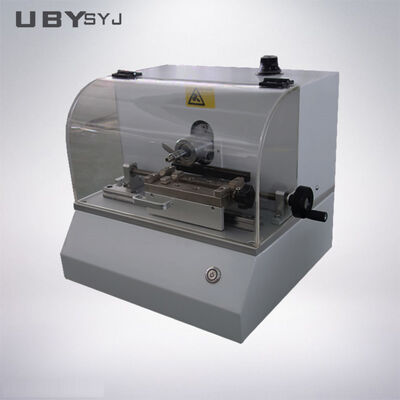

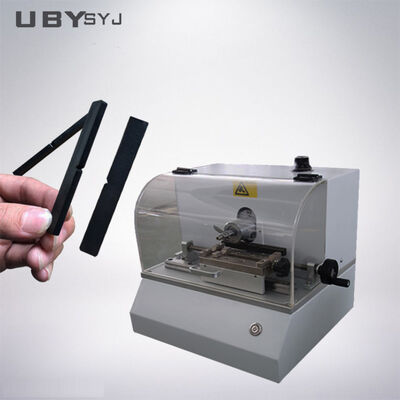

The UP-5011 Notch Sample Making Machine is a professional precision specimen preparation device specifically developed for material impact toughness testing. This machine is primarily used to process standard V-type and U-type notches on non-metallic and partial metallic test specimens, supporting both Charpy and Izod impact test sample production.
Featuring high-precision mechanical milling and stable speed control structure, the machine delivers smooth notch cutting, burr-free specimen surfaces, accurate dimensional consistency, and excellent repeatability. With simple operation, stable performance, and durable cutting tools, it fully meets the rigorous sample making requirements of material impact tests.
ISO 179, ISO 180, ISO 8256, ISO 2818, ASTM D256, ASTM D6110, EN 10045, DIN 53453
Widely applicable for notch specimen preparation in impact toughness tests of various materials, covering multiple industrial scenarios and research institutions:
| Worktable stroke | > 90mm |
| Feed speed | 30mm / min |
| Sampling efficiency | more than 100 / 10min |
| Feed | 0-2.5mm optional |
| Feed stroke | 10mm |
| Type of notch produced | customized according to tool specifications |
| External dimensions | 450mm in length × 390mm in width × 360mm in height |
| Power supply voltage | 220V, single-phase three-wire system AC220V ± 10% 50HZ |
Discussing testing requirements and technical details, suggesting suitable products to customer for confirmation. Then quote the most suitable price according to customer requirements.
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.
Defines installing those products in the field and providing after-sales support.
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers.
Moreover, if your machine doesn't work, you can send us an e-mail or call us. We will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
For our standard machine (normal machines), if we have stock in the warehouse, delivery is 3-7 working days. If there is no stock, normally, the delivery time is 15-20 working days after payment is received. If you are in urgent need, we will make a special arrangement for you.
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine, which means we offer OEM and ODM service.
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machines are shipped as complete units, which means they are already installed. You just need to connect the power cable and start using it. And if necessary, we can also assist you to install your machine on-site.
