ISO 17707 Compliant Shoe Sole Flexing Tester with 3 or 6 Stations and 125-150 cpm Bending Speed

1 Unit
MOQ
Negotiable
Price
ISO 17707 Compliant Shoe Sole Flexing Tester with 3 or 6 Stations and 125-150 cpm Bending Speed
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Shoe Sole Flex Tester
Model NO.: UP-4034
Diameter Of Mandrel: 30mm
Bending Speed: 125-150cpm
Bending Angle: 90±2
Service Support: OEM ODM
Language: Chinese And English
Applications: Leather,Shoes
Specification: Refer To The Actual Size Specifications
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-4034
Payment & Shipping Terms
Packaging Details: Professional export packing
Delivery Time: 5-10work days
Payment Terms: D/P,T/T,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
UP-4034 Shoe Sole Flexing Tester
ISO 17707 & ISO 20344 Compliant Outsole Flex Resistance Test Machine With 3 or 6 Stations
Product Introduction
The Footwear Sole Flexing Resistant Test Machine measures the flexing resistance of shoe soles under continuous movement. Before testing, plunge holes at the maximum bending position and mount specimens at both grips (one fixed, one movable). The specimen undergoes flexing through machine movement. After specified test cycles, remove the specimen and measure the incision length difference.
Key Features
  • Plunge holes at maximum bending position and mount specimen at both grips
  • One fixed grip and one movable grip configuration
  • Specimen flexing through machine movement
  • Measure incision length difference after specified test cycles
Technical Specifications
Parameter Specification
Vertical fixture width 25 mm
Vertical fixture weight 0.28~0.34 kg
Two vertical fixture distance 6.35 mm
Reciprocating stroke 75 mm
Reciprocating frequency 30 cpm
Specimen closed angle 60°
Specimen opening angle 30°
Motor 1/4 HP
Bending angle 90±2°
Bending speed 125-150 cpm
Diameter of mandrel 30 mm
Width of grips 144 mm
Display method 6 digital LCD display
Dimensions 95x42x55 cm
Weight 126 kg
Product Images

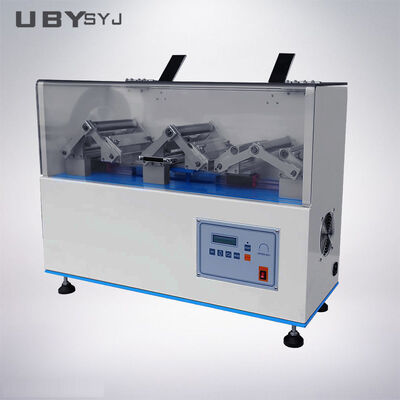

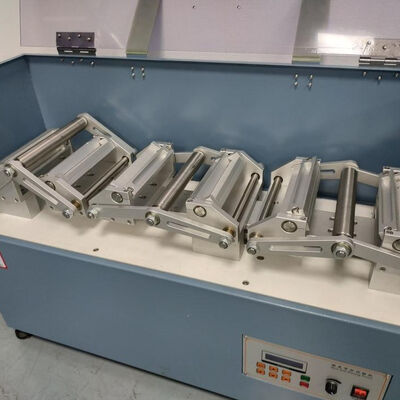

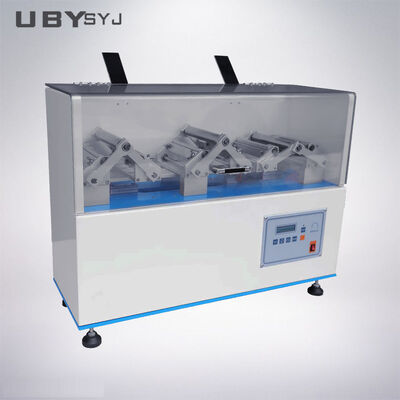

UP-4034 Shoe Sole Flexing Tester full machine view UP-4034 Shoe Sole Flexing Tester side view Reliable Shoe Sole Flex Tester close-up of grip mechanism
Our Service Process
Customer Inquiry
Discuss testing requirements, suggest suitable products, and provide quotes
Specifications Customization
Create drawings and reference photos for customized requirements
Production and Delivery
Manufacture according to confirmed requirements with progress updates
Installation and After-Sales
Provide installation support and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has 12 month warranty after shipment. We offer 12 months for FREE maintenance, extended to 14 months considering sea transportation. If your machine doesn't work, contact us via email or phone for troubleshooting assistance with solutions provided within 24 to 48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days; No stock: 15-20 working days after payment; Urgent requirements receive special arrangement.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - simply connect the power cable and start using. On-site installation assistance is available when necessary.
