UP-4032 Leather Water Vapor Permeability Tester with 6pcs Testing Bottle for Footwear EN ISO 20344 SATRA TM172 Compliance

1
MOQ
Negotiable
Price
UP-4032 Leather Water Vapor Permeability Tester with 6pcs Testing Bottle for Footwear EN ISO 20344 SATRA TM172 Compliance
Features Gallery Product Description Chat Now
Features
Specifications
Model NO.: UP-4032
Testing Bottle Number: 6pcs
Bottle Mouth Diameter: 30±1 Mm
Bottles Holder Speed: 75 ±5cpm
Fan Rotate Speed: (1400 ± 100) R/min
Applications: Leather,Shoes
Service Support: OEM ODM
Language: Chinese And English
Highlight:

Leather water vapor permeability tester

,

Footwear testing equipment with 6pcs bottles

,

EN ISO 20344 compliance tester
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-4032
Payment & Shipping Terms
Packaging Details: Professional export wooden box packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union,paypal
Supply Ability: 30 Unit/month
Product Description
UP-4032 Leather Water Vapor Permeability Tester With 6pcs Testing Bottle for Footwear EN ISO 20344 SATRA TM172
Product Overview

The Leather Water Vapor Permeability Tester is a specialized testing device designed to measure the moisture permeability of upper materials such as leather and textiles. This instrument evaluates materials' ability to absorb and conduct sweat (water vapor) from the wearer's skin surface, serving as a key indicator for measuring footwear comfort.

Operation occurs in a conditioning room under standard temperature (23 ± 2)ºC and humidity (50 ± 5)% RH conditions.

Compliance Standards
  • EN ISO 20344 Section 6.6.2
  • AS/NZS 2210.2 Section 6.6.2
  • GB/T 20991 Section 6.6.2
  • EN 344-1 Section 5.13
  • BS 3144
  • DIN 5333
  • SATRA TM172
Technical Specifications
Parameter Specification
Model UP-4032
Testing Bottle Number 6 pcs
Bottle Mouth Diameter 30 ± 1 mm
Bottles Holder Speed 75 ± 5 cpm
Fan Blades 90 x 75 mm, 3 flat blades in planes inclined at 120° to each other
Fan Rotate Speed (1400 ± 100) r/min
Specimen Size 34 mm
Test Environment Temperature 20 ± 2 ºC or 23 ± 2 ºC (according to standard)
Test Environment Humidity 65 ± 5% RH or 50 ± 5% RH (according to standards)
Balance Accuracy 0.001 g
Power Supply AC220V 50/60HZ
Dimensions 56 × 37 × 38 cm
Weight 50 kg
Product Images

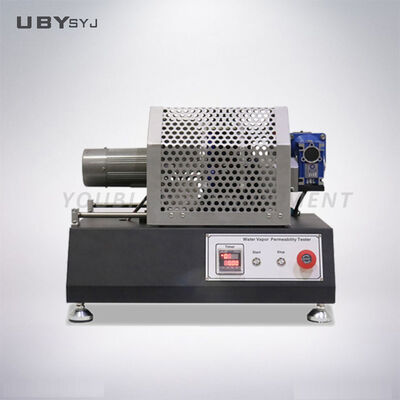

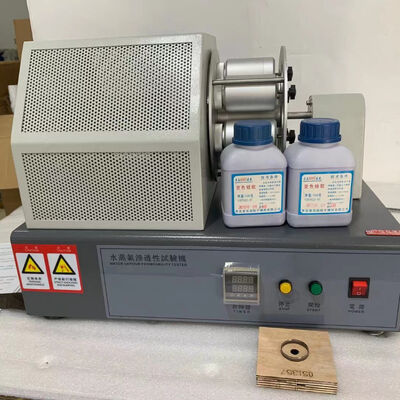

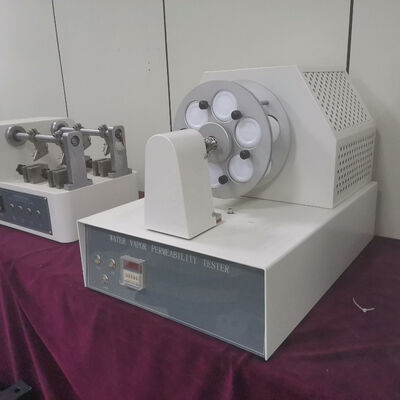

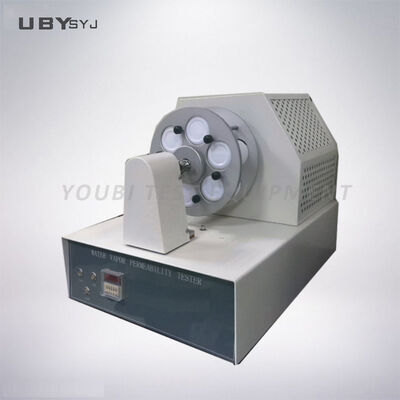

UP-4032 Leather Water Vapor Permeability Tester front view UP-4032 Leather Water Vapor Permeability Tester side view UP-4032 Leather Water Vapor Permeability Tester close-up detail
Our Service Commitment

We provide comprehensive Consultative Selling services throughout the entire business process:

Customer Inquiry Process
  • Discussion of testing requirements and technical details
  • Recommendation of suitable products based on customer needs
  • Competitive pricing according to customer requirements
Specifications Customization Process
  • Creation of detailed drawings for customized requirements
  • Reference photos provided to show product appearance
  • Final solution confirmation and pricing agreement
Production and Delivery Process
  • Manufacturing according to confirmed PO requirements
  • Production progress photos provided to customers
  • Factory calibration or third-party calibration as required
  • Comprehensive testing and quality checking
  • Professional packing and timely delivery
Installation and After-Sales Service

Professional installation support and comprehensive after-sales service provided.

Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory includes a 12-month warranty after shipment. We offer 12 months of FREE maintenance, with an additional 2-month extension to account for sea transportation.

If your machine requires service, contact us via email or phone. We will diagnose the problem through conversation or video chat if necessary. Solutions are provided within 24 to 48 hours after problem confirmation.

What about the delivery term?

For standard machines in stock: 3-7 working days

For non-stock items: 15-20 working days after payment receipt

Urgent requirements receive special arrangement priority

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.

How can I install and use the machine?

We provide English operation manuals and videos via email after purchase. Most machines are shipped fully assembled - simply connect the power cable to begin operation. On-site installation assistance is available when necessary.
