200N Capacity Shoe Sole Flex Tester with 0.1° Angle Resolution and Adjustable Bending Speed for Footwear Quality Control

1 Unit
MOQ
Negotiable
Price
200N Capacity Shoe Sole Flex Tester with 0.1° Angle Resolution and Adjustable Bending Speed for Footwear Quality Control
Features Gallery Product Description Chat Now
Features
Specifications
Bending Speed: 100mm/min(adjustable)
Force Resolution: 1/50,000
Language: Chinese And English
Test Load: 30 N (standard Test Force)
Capacity (Max Load): 200N
Power Supply: AC220V 50Hz
Service Support: OEM ODM
Angle Resolution: 0.1°
Highlight:

200N shoe sole flex tester

,

adjustable bending speed flex tester

,

footwear quality control flex tester
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-4029
Payment & Shipping Terms
Packaging Details: Professional export packing
Delivery Time: 5-10work days
Payment Terms: D/P,T/T,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
UP-4029 200N Digital Shoe Sole Flex Tester with 0.1° Angle Resolution for Quality Control
Product Overview
The UP-4029 200N Digital Shoe Sole Flex Tester with 0.1° Angle Resolution is designed to measure the bending resistance (stiffness/rigidity) of complete footwear, including both finished shoes and sole materials. This instrument evaluates how much force is required to bend a shoe at a specific angle under controlled conditions, which is critical for assessing walking comfort, foot support, and overall product quality.
The tester operates by clamping the front of the shoe (about one-third of the shoe length away from the front) and applying bending force through a motor-driven machine. It uses an integrated decoder on the axis to measure the bending angle with high precision and displays the results in digital form on the LCD screen.
Applications & Standards
  • GB/T 20991 section 8.4.1
  • ISO 20344-2011 section 8.4.1
  • AS/NZS 2210.2 section 8.4.1
  • ISO 17707 section 4.2
Technical Specifications
Item Specification
Capacity (Max Load) 200 N
Bending Speed 100mm/min (adjustable)
Test Load 30 N (standard test force)
Angle Resolution 0.1°
Force Resolution 1/50,000
Sample Sizes Supported French sizes: 39, 42; British sizes: 6, 8
Bending Position 1/3 position of the shoe forepart
Arm Length 315mm
Display LCD digital display
Power Supply 1∮ AC 220V 50/60Hz 3A
Dimensions (W×D×H) Approx. 50 × 45 × 53 cm
Weight Approx. 35 - 40 kg
Product Images

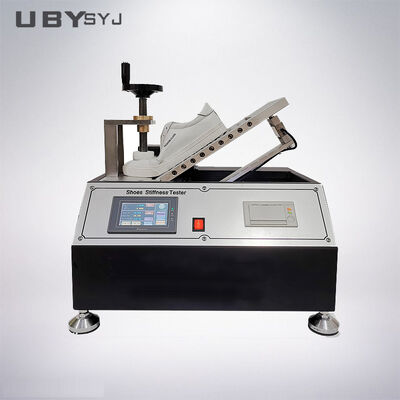

UP-4029 Digital Shoe Sole Flex Tester front view UP-4029 Digital Shoe Sole Flex Tester side view
Our Service
During the entire business process, we offer Consultative Selling services:
  1. Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing.
  2. Specifications Customization Process: Create drawings for customized requirements, provide reference photos, and confirm final solutions and pricing.
  3. Production and Delivery Process: Manufacture machines according to confirmed requirements, provide production progress photos, conduct calibration, and arrange timely shipping.
  4. Installation and After-Sales Service: Provide field installation and comprehensive after-sales support.
Frequently Asked Questions
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months of FREE maintenance, extended by 2 months to account for sea transportation.

If your machine doesn't work, you can contact us via email or phone. We will troubleshoot the problem through conversation or video chat if necessary. Solutions are provided within 24 to 48 hours after problem confirmation.
2. What about the delivery term?
For standard machines in stock: 3-7 working days
For machines not in stock: 15-20 working days after payment receipt
Special arrangements available for urgent requirements
3. Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.
4. How can I install and use the machine?
Once you order testing machines from us, we provide English operation manuals or videos via email. Most machines are shipped fully assembled - you simply connect the power cable and start using. We also provide on-site installation assistance when necessary.
