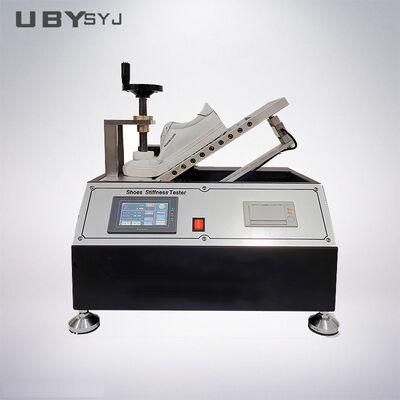

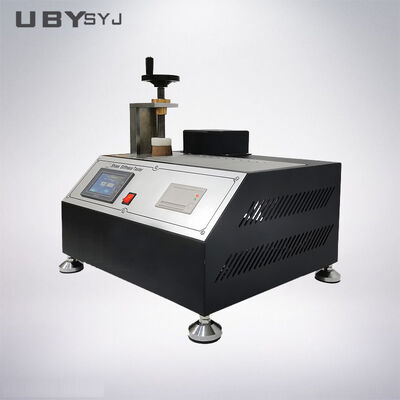

UP-4029 Shoes Bending Stiffness Tester with 200N Capacity Adjustable Bending Speed and High Precision Angle Resolution for Footwear Testing

The Shoes Bending Stiffness Tester is designed to measure the bending resistance (stiffness/rigidity) of complete footwear, including both finished shoes and sole materials. This instrument evaluates how much force is required to bend a shoe at a specific angle under controlled conditions, which is critical for assessing walking comfort, foot support, and overall product quality.

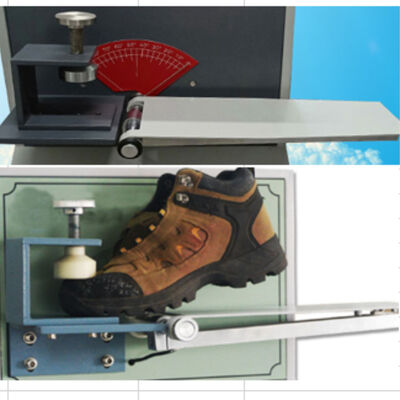

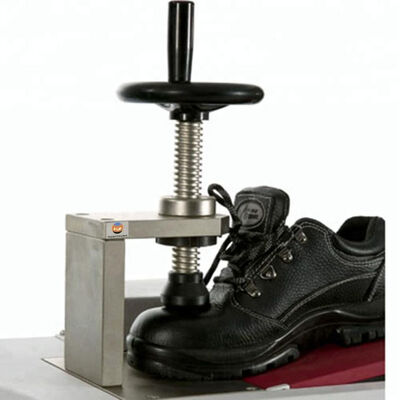

The tester operates by clamping the front of the shoe (about one-third of the shoe length away from the front) and applying bending force through a motor-driven machine. An integrated decoder on the axis measures the bending angle with high precision and displays the results in digital form on the LCD screen.

• GB/T 20991 section 8.4.1
• ISO 20344-2011 section 8.4.1
• AS/NZS 2210.2 section 8.4.1
• ISO 17707 section 4.2

During the entire business process, we offer Consultative Selling services:

• Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide pricing based on customer requirements.
• Specifications Customization Process: Create drawings for customized requirements, provide reference photos, confirm final solutions and pricing.
• Production and Delivery Process: Manufacture machines according to confirmed PO requirements, provide production progress photos, conduct factory or third-party calibration, and arrange packing and delivery.
• Installation and After-Sales Service: Provide field installation and ongoing after-sales support.

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months of FREE maintenance, with an additional 2-month extension considering sea transportation.

If your machine doesn't work, you can contact us via email or phone. We will troubleshoot the problem through conversation or video chat if necessary. Once confirmed, we provide solutions within 24 to 48 hours.

For standard machines in stock: 3-7 working days. For out-of-stock items: 15-20 working days after payment. We can make special arrangements for urgent needs.

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.

We provide English operation manuals or videos via email. Most machines are shipped fully assembled - you simply need to connect the power cable and start using them. If necessary, we can assist with on-site installation.
