UP-4017 Safety Shoes Impact Resistance Tester with 200 ± 2 J Impact Energy and Anti-Rebound Device EN ISO 20344 Compliant

1
MOQ
Negotiable
Price
UP-4017 Safety Shoes Impact Resistance Tester with 200 ± 2 J Impact Energy and Anti-Rebound Device EN ISO 20344 Compliant
Features Gallery Product Description Chat Now
Features
Specifications
Impact Hammer Mass (EN/ISO): 20 ± 0.2 Kg
Language: Chinese And English
Drop Height Range: Specification 0 ~ 1200 Mm (adjustable)
Model NO.: UP-4017
Service Support: OEM ODM
Impact Striker Type (EN/ISO): Wedge Shape, Length 75mm, Angle 90°, Corner Radius R3mm
Impact Energy (EN/ISO): 200 ± 2 J
Impact Energy (ASTM/BS/ANSI: 100 ± 2 J
Highlight:

Safety shoes impact resistance tester

,

Footwear testing equipment with anti-rebound device

,

EN ISO 20344 compliant impact tester
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-4017
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
UP-4017 Safety Shoes Impact Resistance Tester With Anti-Rebound Device
Product Introduction

The Safety Footwear Impact Testing Machine is a specialized instrument designed to evaluate the impact resistance of safety footwear toe caps. By releasing a falling striker from a specified height to deliver a controlled kinetic energy impact, the machine measures the deformation of the safety toe cap to determine whether it meets required protection standards. This ensures that safety footwear provides adequate protection against potential toe injuries. Testing is typically conducted on complete footwear or on toe cap components.

Applications

This safety footwear tester is used for impact resistance testing of safety shoes. The machine is suitable for personal protective equipment (PPE) testing, safety footwear manufacturing, and textile & leather testing.

Compliance Standards

EN ISO 20344, ISO 22568, ASTM F2412 / F2413, AS/NZS 2210.2, BS EN 344 / BS-953

Technical Specifications
Item Specification
Drop Height Range 0 ~ 1200 mm (adjustable)
Impact Energy (EN/ISO) 200 ± 2 J
Impact Energy (ASTM/BS/ANSI) 100 ± 2 J
Impact Hammer Mass (EN/ISO) 20 ± 0.2 kg
Impact Hammer Mass (ASTM/BS/ANSI) 22.7 ± 0.23 kg
Impact Striker Type (EN/ISO) Wedge shape, Length 75mm, Angle 90°, Corner radius R3mm
Impact Striker Type (ASTM/ANSI) Cylindrical, Diameter 25.4mm, Spherical radius R25.4mm
Release Mechanism Electromagnetic absorption device / automatic grab
Anti-Secondary Impact Double buffer cylinder system
Power Supply AC220V 50Hz 5A / AC380V 3∮ (optional)
Dimensions (L × W × H) Approx. 600 × 700 × 2200 mm
Net Weight Approx. 210 ~ 230 kg
Product Images

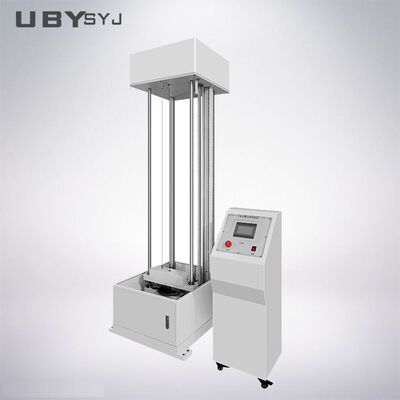

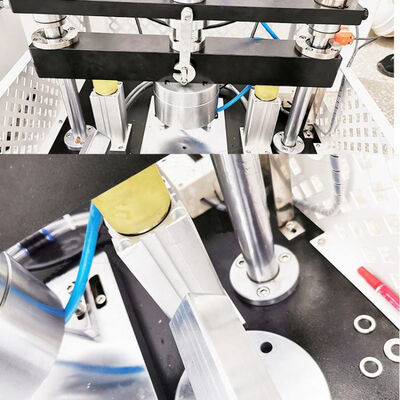

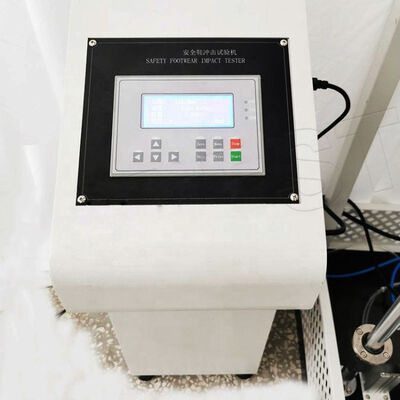

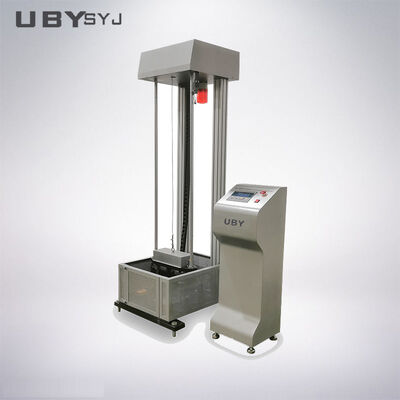

UP-4017 Safety Shoes Impact Resistance Tester front view UP-4017 Safety Shoes Impact Resistance Tester side view UP-4017 Safety Shoes Impact Resistance Tester close-up detail
Our Service Commitment

During the entire business process, we offer consultative selling services:

  • Customer Inquiry Process: Discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing
  • Specifications Customization: Create detailed drawings for custom requirements, provide reference photos, and confirm final solutions
  • Production and Delivery: Manufacture according to confirmed requirements, provide production updates, conduct calibration, and ensure timely delivery
  • Installation and After-Sales: Provide field installation support and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months of free maintenance, extended by 2 months to account for sea transportation. If your machine doesn't work, contact us via email or phone. We'll diagnose the problem and provide solutions within 24 to 48 hours.
What about the delivery term?
For standard machines in stock: 3-7 working days. For non-stock items: 15-20 working days after payment. We can accommodate urgent requirements with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you simply need to connect the power cable and begin operation. We also offer on-site installation assistance when necessary.
