Home /Products/Footwear Testing Equipment/Safety Footwear Impact Tester with 200 ± 2 J Impact Energy and Adjustable Drop Height 0-1200mm EN ISO 20344 Compliant

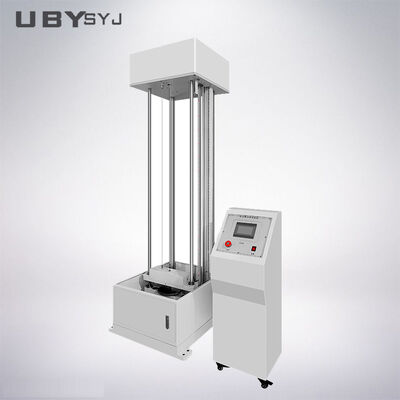

Safety Footwear Impact Tester with 200 ± 2 J Impact Energy and Adjustable Drop Height 0-1200mm EN ISO 20344 Compliant

1
MOQ
Negotiable
Price
Safety Footwear Impact Tester with 200 ± 2 J Impact Energy and Adjustable Drop Height 0-1200mm EN ISO 20344 Compliant
Features Gallery Product Description Chat Now
Features
Specifications
Drop Height Range: Specification 0 ~ 1200 Mm (adjustable)
Impact Hammer Mass (EN/ISO): 20 ± 0.2 Kg
Language: Chinese And English
Impact Energy (EN/ISO): 200 ± 2 J
Model NO.: UP-4017
Impact Striker Type (EN/ISO): Wedge Shape, Length 75mm, Angle 90°, Corner Radius R3mm
Service Support: OEM ODM
Impact Energy (ASTM/BS/ANSI: 100 ± 2 J
Highlight:

Safety footwear impact tester with adjustable drop height

,

Footwear impact tester EN ISO 20344 compliant

,

Safety footwear tester with 200J impact energy
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-4017
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
UP-4017 Safety Footwear Impact Tester - Drop Weight Testing Machine for Steel Toe Cap
Product Introduction

The Safety Footwear Impact Testing Machine is a specialized instrument designed to evaluate the impact resistance of safety footwear toe caps. By releasing a falling striker from a specified height to deliver a controlled kinetic energy impact, the machine measures the deformation of the safety toe cap to determine whether it meets required protection standards. This ensures that safety footwear provides adequate protection against potential toe injuries. Testing is typically conducted on complete footwear or on toe cap components.

Application

Safety Footwear Tester is used for impact resistance testing of safety shoes. The machine is suitable for personal protective equipment (PPE) testing, safety footwear manufacturing, and textile & leather testing.

Standards Compliance

EN ISO 20344, ISO 22568, ASTM F2412 / F2413, AS/NZS 2210.2, BS EN 344 / BS-953

Technical Specifications
Item Specification
Drop Height Range 0 ~ 1200 mm (adjustable)
Impact Energy (EN/ISO) 200 ± 2 J
Impact Energy (ASTM/BS/ANSI) 100 ± 2 J
Impact Hammer Mass (EN/ISO) 20 ± 0.2 kg
Impact Hammer Mass (ASTM/BS/ANSI) 22.7 ± 0.23 kg
Impact Striker Type (EN/ISO) Wedge shape, Length 75mm, Angle 90°, Corner radius R3mm
Impact Striker Type (ASTM/ANSI) Cylindrical, Diameter 25.4mm, Spherical radius R25.4mm
Release Mechanism Electromagnetic absorption device / automatic grab
Anti-Secondary Impact Double buffer cylinder system
Power Supply AC220V 50Hz 5A / AC380V 3∮ (optional)
Dimensions (L × W × H) Approx. 600 × 700 × 2200 mm
Net Weight Approx. 210 ~ 230 kg
Product Images

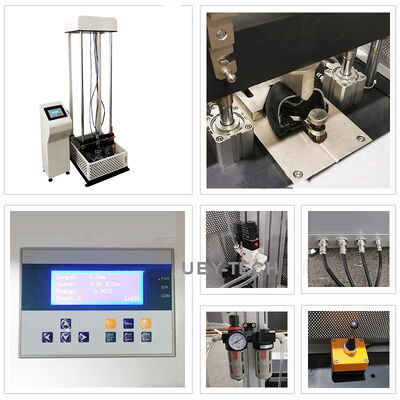

UP-4017 Safety Footwear Impact Tester front view UP-4017 Safety Footwear Impact Tester side view UP-4017 Safety Footwear Impact Tester close-up detail
Our Service

During the whole business process, we offer Consultative Selling services:

  • Customer Inquiry Process: Discussing testing requirements and technical details, suggesting suitable products, and providing competitive pricing
  • Specifications Customize Process: Creating drawings for customized requirements, providing reference photos, and confirming final solutions
  • Production and Delivery Process: Manufacturing according to confirmed requirements, providing production updates, factory calibration, and timely delivery
  • Installation and After-Sale Service: On-site installation and comprehensive after-sales support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. We offer 12 months for FREE maintenance, extended to 14 months considering sea transportation. If your machine doesn't work, contact us via email or phone. We'll diagnose the problem and provide solutions within 24 to 48 hours.

What about the delivery term?

For standard machines in stock: 3-7 working days. For out-of-stock items: 15-20 working days after payment. We can make special arrangements for urgent requirements.

Do you accept customization services? Can I have my logo on the machine?

Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.

How can I install and use the machine?

We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you just need to connect the power cable and start using. We also offer on-site installation assistance when necessary.
