Name: UP-4017 Safety Footwear Impact Testing Machine with Adjustable Drop Height 0-1200mm and 200J Impact Energy EN/ISO Meets EN ASTM F2412 BS CSA GB Standards
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-4017
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Model NO.: UP-4017

Drop Height Range: Specification 0 ~ 1200 Mm (adjustable)

Impact Energy (EN/ISO): 200 ± 2 J

Impact Energy (ASTM/BS/ANSI: 100 ± 2 J

Impact Hammer Mass (EN/ISO): 20 ± 0.2 Kg

Impact Striker Type (EN/ISO): Wedge Shape, Length 75mm, Angle 90°, Corner Radius R3mm

Language: Chinese And English

Service Support: OEM ODM

Highlight:

Safety Footwear Impact Testing Machine with Adjustable Drop Height

Footwear Testing Equipment with 200J Impact Energy

Impact Testing Machine meets EN ASTM F2412 Standards

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-4017

Payment & Shipping Terms

Packaging Details: Professional export packaging

Delivery Time: 5~10 work days

Payment Terms: D/P,T/T,Western Union

Supply Ability: 20 Unit/month

Gallery

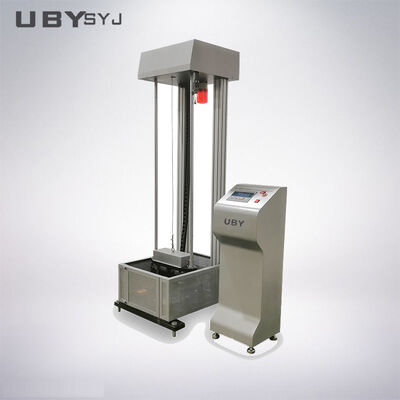

UP-4017 Safety Footwear Impact Testing Machine with Adjustable Drop Height 0-1200mm and 200J Impact Energy EN/ISO Meets EN ASTM F2412 BS CSA GB Standards

Product Description

UP-4017 Safety Footwear Impact Testing Machine - Steel Toe Cap Drop Tester

Meets EN ASTM F2412, BS, CSA, and GB Standards

Product Introduction

The Safety Footwear Impact Testing Machine is a specialized instrument designed to evaluate the impact resistance of safety footwear toe caps. By releasing a falling striker from a specified height to deliver a controlled kinetic energy impact, the machine measures the deformation of the safety toe cap to determine whether it meets required protection standards. This ensures that safety footwear provides adequate protection against potential toe injuries. Testing is typically conducted on complete footwear or on toe cap components.

Applications

Safety Footwear Tester is used for impact resistance testing of safety shoes. The machine is suitable for personal protective equipment (PPE) testing, safety footwear manufacturing, and textile & leather testing.

Standards Compliance

EN ISO 20344, ISO 22568, ASTM F2412/F2413, AS/NZS 2210.2, BS EN 344/BS-953

Technical Specifications

Item	Specification
Drop Height Range	0 ~ 1200 mm (adjustable)
Impact Energy (EN/ISO)	200 ± 2 J
Impact Energy (ASTM/BS/ANSI)	100 ± 2 J
Impact Hammer Mass (EN/ISO)	20 ± 0.2 kg
Impact Hammer Mass (ASTM/BS/ANSI)	22.7 ± 0.23 kg
Impact Striker Type (EN/ISO)	Wedge shape, Length 75mm, Angle 90°, Corner radius R3mm
Impact Striker Type (ASTM/ANSI)	Cylindrical, Diameter 25.4mm, Spherical radius R25.4mm
Release Mechanism	Electromagnetic absorption device / automatic grab
Anti-Secondary Impact	Double buffer cylinder system
Power Supply	AC220V 50Hz 5A / AC380V 3∮ (optional)
Dimensions (L × W × H)	Approx. 600 × 700 × 2200 mm
Net Weight	Approx. 210 ~ 230 kg

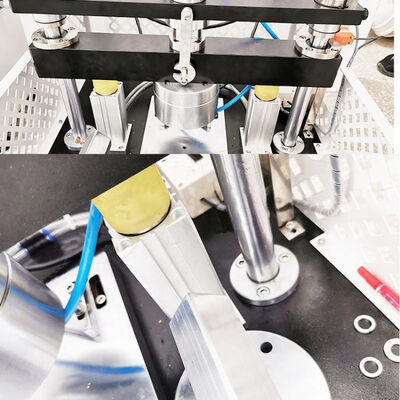

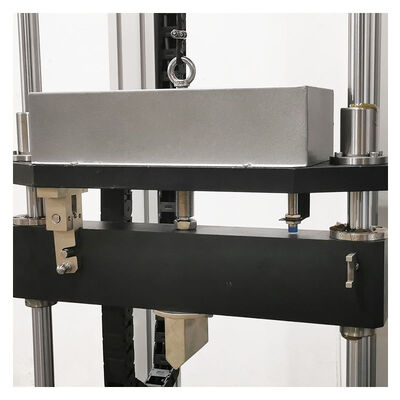

Product Images

Our Service Process

1) Customer Inquiry Process: Discussing testing requirements and technical details, suggesting suitable products to customer to confirm. Then quote the most suitable price according to customer requirements.

2) Specifications Customize Process: Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.

3) Production and Delivery Process: We will produce the machines according to confirmed PO requirements. Offering photos to show the production process. After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration (as per customer requirements). Check and test all the details and then arrange packing. Delivering the products is confirmed shipping time and informed the customer.

4) Installation and After-Sale Service: Defines installing those products in the field and providing after-sales support.

Frequently Asked Questions

1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?

Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. Generally, we offer 12 months for FREE maintenance. While considering sea transportation, we can extend 2 months for our customers. Moreover, if your machine doesn't work, you can send us an e-mail or call us - we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.

2. What about the delivery term?

For our standard machine (normal machines), if we have stock in the warehouse, delivery is 3-7 working days; if there is no stock, normally the delivery time is 15-20 working days after payment is received; if you are in urgent need, we will make a special arrangement for you.

3. Do you accept customization services? Can I have my logo on the machine?

Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine, which means we offer OEM and ODM service.

4. How can I install and use the machine?

Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email. Most of our machines are shipped as a complete unit, which means they are already installed - you just need to connect the power cable and start using it. And if it's necessary, we can also assist you to install your machine on-site.
