UP-4026 4 Station Shoelace Abrasion Tester with 52.5° Friction Angle and 250g Load Weight

1 Unit
MOQ
Negotiable
Price
UP-4026 4 Station Shoelace Abrasion Tester with 52.5° Friction Angle and 250g Load Weight
Features Gallery Product Description Chat Now
Features
Specifications
Standard Load Weight: 250g ±3g Per Station
Friction Angle: 52.5° ±5° Fixed Standard Angle
Language: Chinese And English
Reciprocating Stroke: 35mm ±2mm
Test Stations: 4 Stations (independent Control)
Power Supply: AC220V 50Hz
Service Support: OEM ODM
Test Speed: 60 ±3 Cycles Per Minute
Highlight:

4 station shoelace abrasion tester

,

footwear testing equipment with 52.5° friction angle

,

independent control shoelace abrasion tester

Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP-4026
Payment & Shipping Terms
Packaging Details: Professional export packing
Delivery Time: 5-10work days
Payment Terms: D/P,T/T,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
UP-4026 Footwear Lace Abrasion Test Equipment 4 Station Shoelace Abrasion Resistance Tester
Product Overview

The Shoelace Abrasion Tester is professional footwear lab testing equipment designed to evaluate abrasion resistance and service life of various shoelaces. It simulates real repeated friction between shoelace vs shoelace or shoelace vs shoe eyelets under standardized tension and reciprocating motion, recording cycle numbers until laces fray, crack or break. The machine is equipped with independent station counters and automatic stop function for broken samples. Widely adopted by shoe factories, leather goods manufacturers, third-party testing laboratories and quality inspection institutes for material incoming inspection and finished lace durability verification.

Key Features
  • 4 independent test stations with separate digital counters
  • Single station auto-stop once sample breaks without interrupting other groups
  • Standard fixed 52.5° friction angle for consistent test conditions
  • LCD digital preset cycle counter, range 0-999,999 cycles
  • Stable low-noise transmission system for long service life
Compliance Standards
SATRA TM154, DIN 4843, ISO 22774, GB/T 3903.36, QB/T 2226, BS 5131:3.6
Applications

This machine is suitable for all types of shoelaces, testing shoelace anti-fray performance, eyelet friction durability, and lace material quality R&D.

Technical Specifications
Item Specification
Test Stations 4 stations (independent control)
Standard Load Weight 250g ±3g per station
Reciprocating Stroke 35mm ±2mm
Test Speed 60 ±3 cycles per minute
Friction Angle 52.5° ±5° fixed standard angle
Cycle Counter LCD digital display, 0 ~ 999,999 cycles
Power Supply Single phase AC220V 50Hz (110V 60Hz optional)
Overall Dimension 660 × 580 × 420 mm (L×W×H)
Net Weight 70 kg
Standard Accessories Full set of fixture clamps, 4pcs standard weights, operation manual
Product Images

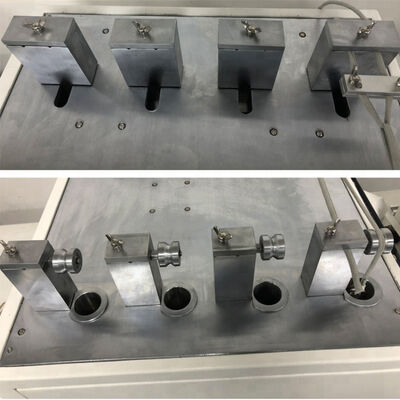

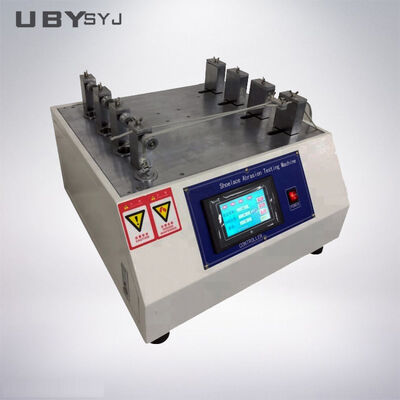

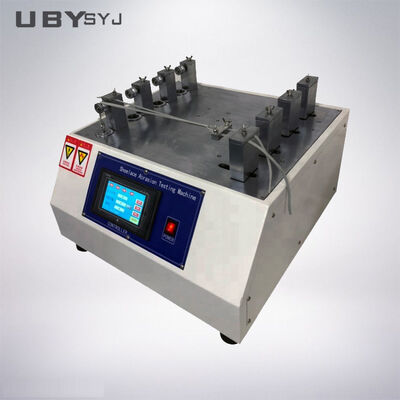

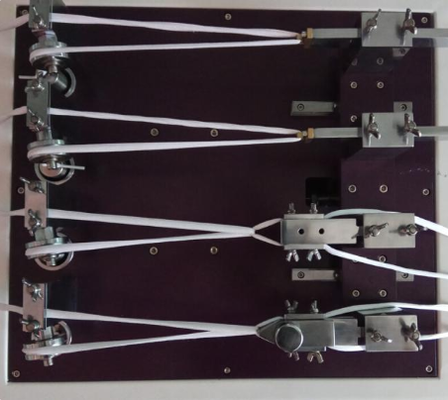

UP-4026 Shoelace Abrasion Tester front view UP-4026 Shoelace Abrasion Tester side view UP-4026 Shoelace Abrasion Tester close-up detail
