Home /Products/Footwear Testing Equipment/UP-4026 SATRA TM154 Shoelace Abrasion Tester with 4 Independent Test Stations and 52.5° Friction Angle for Durability Testing

UP-4026 SATRA TM154 Shoelace Abrasion Tester with 4 Independent Test Stations and 52.5° Friction Angle for Durability Testing

1 Unit
MOQ
Negotiable
Price
UP-4026 SATRA TM154 Shoelace Abrasion Tester with 4 Independent Test Stations and 52.5° Friction Angle for Durability Testing
Features Gallery Product Description Chat Now
Features
Specifications
Test Stations: 4 Stations (independent Control)
Standard Load Weight: 250g ±3g Per Station
Reciprocating Stroke: 35mm ±2mm
Test Speed: 60 ±3 Cycles Per Minute
Friction Angle: 52.5° ±5° Fixed Standard Angle
Power Supply: AC220V 50Hz
Language: Chinese And English
Service Support: OEM ODM
Highlight:

SATRA TM154 shoelace abrasion tester

,

shoelace abrasion tester 4 test stations

,

footwear testing equipment 52.5° friction angle
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: UP26
Payment & Shipping Terms
Packaging Details: Professional export packing
Delivery Time: 5-10work days
Payment Terms: D/P,T/T,Western Union,Paypal,Money Gram
Supply Ability: 30 Unit/month
Product Description
UP-4026 SATRA TM154 Shoelace Abrasion Tester Shoe Lace Friction Durability Testing Machine
Product Introduction

The Shoelace Abrasion Tester is professional footwear lab testing equipment designed to evaluate abrasion resistance and service life of various shoelaces. It simulates real repeated friction between shoelace vs shoelace or shoelace vs shoe eyelets under standardized tension and reciprocating motion, recording cycle numbers until laces fray, crack or break.

The machine is equipped with independent station counter and automatic stop function for broken samples. Widely adopted by shoe factories, leather goods manufacturers, third-party testing laboratories and quality inspection institutes for material incoming inspection and finished lace durability verification.

Key Features
  • 4 independent test stations with separate digital counters
  • Single station auto-stop once sample breaks without interrupting other groups
  • Standard fixed 52.5° friction angle for consistent test conditions
  • LCD digital preset cycle counter, range 0-999,999 cycles
  • Stable low-noise transmission system for long service life
Compliance Standards

SATRA TM154, DIN 4843, ISO 22774, GB/T 3903.36, QB/T 2226, BS 5131:3.6

Applications

This machine is suitable for all types of shoelaces, for testing shoelace anti-fray performance, eyelet friction durability, and lace material quality R&D.

Technical Specifications
Item Specification
Test Stations 4 stations (independent control)
Standard Load Weight 250g ±3g per station
Reciprocating Stroke 35mm ±2mm
Test Speed 60 ±3 cycles per minute
Friction Angle 52.5° ±5° fixed standard angle
Cycle Counter LCD digital display, 0 ~ 999,999 cycles
Power Supply Single phase AC220V 50Hz (110V 60Hz optional)
Overall Dimension 660 × 580 × 420 mm (L×W×H)
Net Weight 70 kg
Standard Accessories Full set of fixture clamps, 4pcs standard weights, operation manual
Product Images

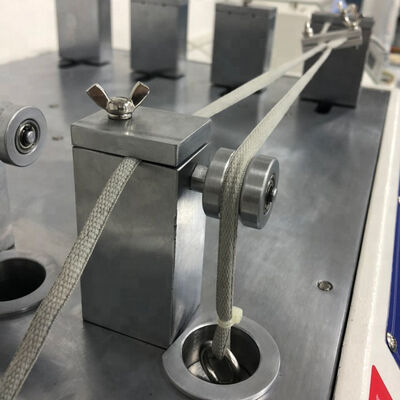

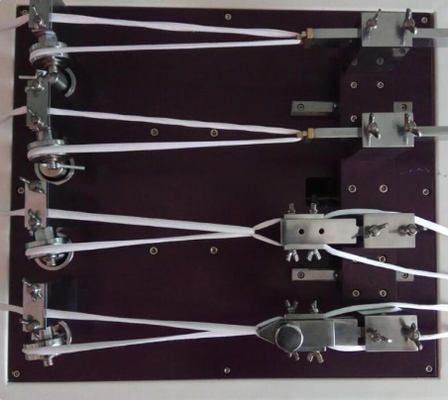

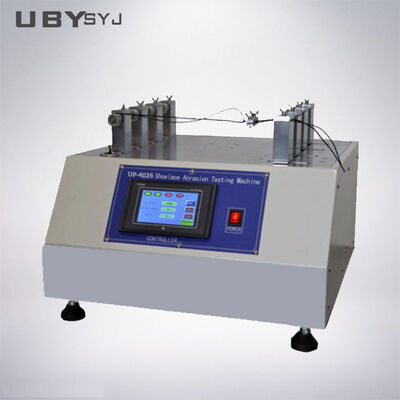

UP-4026 SATRA TM154 Shoelace Abrasion Tester front view UP-4026 SATRA TM154 Shoelace Abrasion Tester side view UP-4026 SATRA TM154 Shoelace Abrasion Tester close-up detail
Our Service
  • Customer Inquiry Process: Discussing testing requirements and technical details, suggesting suitable products, and providing competitive pricing
  • Specifications Customize Process: Creating drawings and reference photos for customized requirements, confirming final solutions and pricing
  • Production and Delivery Process: Manufacturing according to confirmed requirements, providing production updates, factory calibration, and timely delivery
  • Installation and After-sale Service: On-site installation support and comprehensive after-sales service
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment in China. Every machine purchased from our factory has a 12-month warranty after shipment. Generally, we offer 12 months for FREE maintenance, with an additional 2 months extension considering sea transportation. If your machine doesn't work, you can contact us via email or phone. We will diagnose the problem through conversation or video chat and provide solutions within 24 to 48 hours.
What about the delivery term?
For standard machines in stock: 3-7 working days. For machines not in stock: 15-20 working days after payment receipt. Special arrangements can be made for urgent requirements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the machine.
How can I install and use the machine?
We provide English operation manuals and videos via email. Most machines are shipped fully assembled - you simply need to connect the power cable and start using. On-site installation assistance is available when necessary.
