UP-1006 Fully Automated Martindale Abrasion Tester with Memory Function for Anti-Pilling and Wear Resistance Testing

1
MOQ
Negotiable
Price
UP-1006 Fully Automated Martindale Abrasion Tester with Memory Function for Anti-Pilling and Wear Resistance Testing
Features Gallery Product Description Chat Now
Features
Specifications
Model: UP-1006
Digits: 4, 6, 8, 9heads
Abrader Speed: 50 ± 2 R/min
Max Stroke(Vertical): 24 ± 0.5 Mm
Max Stroke(Horizontal): 60.5 ± 0.5 Mm
Service Support: OEM ODM
Language: Chinese And English
MOQ: 1 PCS
Applications: Fabric,Textiles,Cloth,Gloves And Etc
Specification: Refer To The Actual Size Specifications
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE, ISO
Model Number: UP-1006
Payment & Shipping Terms
Packaging Details: Professional export wooden box packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 30 Unit/month
Product Description
UP-1006 Fully Automated Anti-Pilling and Wear Resistance Tester With Memory Function
The UP-1006 Fully Automated Anti-Pilling and Wear Resistance Tester is designed to determine the abrasion resistance of all kinds of footwear vamp materials. Samples are rubbed against known abrasion at low pressures in continuously changing directions, providing accurate measurement of wear characteristics.
Product Overview
The Martindale Abrasion Testing Machine features a unique design that allows removal of individual sample holders for examination without lifting the top motion plate, ensuring efficient testing procedures.
Compliance Standards
  • ISO 20344 section 6.12
  • ISO 5470-2
  • AS/NZS 2210.2 section 6.12
  • GB/T 20991 section 6.12
  • EN 344-1 section 5.14
  • BS3424.24
  • ASTMD4966
  • SATRA TM31
Technical Specifications
Item Specification
Number of working positions 4, 6 or 8
Abradant table ≥ 125mm
Abrader speed 50 ± 2 r/min
Max stroke Horizontal: 60.5 ± 0.5 mm
Vertical: 24 ± 0.5 mm
Counter range 0 ~ 99999
Pressure weight a. Specimen holder: 200 ± 1 g
b. Load piece (apparel & household textiles): 395 ± 2 g
c. Load piece (workwear & upholstery): 594 ± 2 g
d. Stainless steel plate: 260 ± 1 g
Abrader diameter Type A (200 g / 1.96 N / 9 kPa): Ø 28.8 -0.084 mm
Type B (155 g / 1.52 N / 12 kPa): Ø 90 -0.10 mm
Pressing weight 2385 ± 10 g
Instrument dimensions (L×W×H) 885 × 600 × 410 mm
Weight 150 kg
Power supply AC220V, 50Hz, 500W

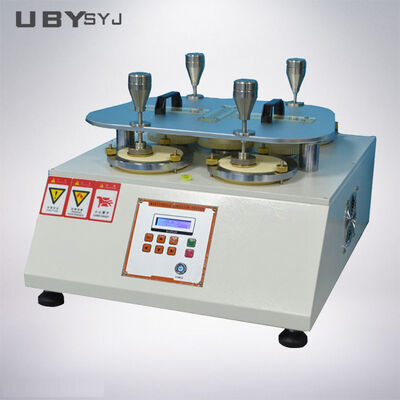

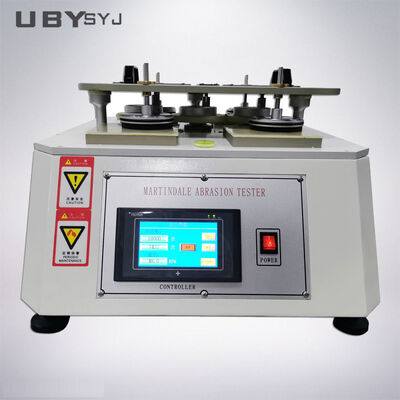

Product Images
UP-1006 Fully Automated Martindale Abrasion Tester with Memory Function for Anti-Pilling and Wear Resistance Testing 0 UP-1006 Fully Automated Martindale Abrasion Tester with Memory Function for Anti-Pilling and Wear Resistance Testing 1 UP-1006 Fully Automated Martindale Abrasion Tester with Memory Function for Anti-Pilling and Wear Resistance Testing 2
Our Service Process
1) Customer Inquiry Process:
We discuss testing requirements and technical details, suggest suitable products, and provide competitive pricing based on customer specifications.
2) Specifications Customization:
We create detailed drawings and provide reference photos for customized requirements, confirming final solutions and pricing.
3) Production and Delivery:
We manufacture machines according to confirmed requirements, provide production updates, conduct calibration, and ensure timely delivery.
4) Installation and After-Sales Service:
We provide installation support and comprehensive after-sales service to ensure optimal performance.
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. Every machine includes a 12-month warranty after shipment, with free maintenance during this period. For technical support, contact us via email or phone, and we provide solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. We accommodate urgent requirements with special arrangements.
Do you accept customization services? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.
How can I install and use the machine?
We provide English operation manuals and videos. Most machines are shipped fully assembled - simply connect the power cable to begin use. On-site installation assistance is available when necessary.
