Temi880 Temperature and Humidity Controller with 120 Program Groups High Accuracy and Touch Screen Interface for Environmental Chambers

1
MOQ
Negotiable
Price
Temi880 Temperature and Humidity Controller with 120 Program Groups High Accuracy and Touch Screen Interface for Environmental Chambers
Features Gallery Product Description Chat Now
Features
Specifications
Model: Temi880
TFT Resolution: 480 × 272
Control Method: Fixed Value/Program
Sensor Type: PT100 Sensor Input (optional Electronic Sensor)
Temperature Range: -90.0°C To 200.0°C (customizable To -90°C To 300°C)
Temperature Accuracy: ±0.2°C
Humidity Range: 1% To 100% RH
Humidity Accuracy: ±0.1%
Program Groups: 120
Maximum Number Of Segments Per Group: 100 Segments
Otal Number Of Segments : 1200
Interface Type : RS232C/RS485
Highlight:

temperature humidity controller for environmental chambers

,

touch screen lab testing equipment

,

high accuracy temperature controller with warranty
Basic Infomation
Place of Origin: CHINA
Brand Name: YOUBI
Certification: CE,ISO
Model Number: TEMI880
Payment & Shipping Terms
Packaging Details: Professional export packaging
Delivery Time: 5~10 work days
Payment Terms: D/P,T/T,Western Union
Supply Ability: 20 Unit/month
Product Description
Temi880 Quiet and Stable Temperature and Humidity Controller for Environmental Chamber
Product Overview

The Temi880 utilizes advanced computer technology and PID control methods to precisely measure and control ambient temperature and humidity. Featuring a clear, intuitive touch-screen interface, this controller offers exceptional stability, reliability, and cost-effective program control capabilities.

Applications

The TEMI880 is an intelligent temperature and humidity programmable controller designed for various environmental testing equipment, including:

  • High and low temperature alternating humidity test chambers
  • Constant temperature and humidity test chambers
  • Walk-in laboratories
  • Temperature shock test chambers
  • UV ultraviolet aging test chambers
  • Other environmental simulation test equipment
Technical Specifications
Parameter Specification
Display 5.7-inch color touch screen
Control Methods Two control methods: fixed value / program
Sensor Type PT100 sensor (optional electronic sensor)
Contact Input Input type: (1) RUN/STOP, (2) 8-way DI fault input
Input form: Maximum contact capacity 12V DC / 10mA
Contact Output Maximum 20 contact points (basic: 10 points, optional: 10 points)
Contact capacity: Max. 30V DC / 5A, 250V AC / 5A
Contact Output Types
  • T1-T8: 8 points
  • Internal contact IS: 8 points
  • Time signal: 4 points
  • Temperature RUN: 1 point
  • Humidity RUN: 1 point
  • Temperature UP: 1 point
  • Temperature DOWN: 1 point
  • Humidity UP: 1 point
  • Humidity DOWN: 1 point
  • Temperature Soak: 1 point
  • Humidity Soak: 1 point
  • DRAIN: 1 point
  • Failure: 1 point
  • Program End: 1 point
  • 1st Ref: 1 point
  • 2nd Ref: 1 point
  • Alarm: 4 points (optional alarm types)
Output Type & Control Output Output type: Voltage pulse (SSR) / (4-20mA) analog output
Control output: 2 channels (temperature / humidity)
Printer & USB Can connect a printer (USB function optional)
Temperature Measurement Range: -90.00°C to +200.00°C
Accuracy: ±0.2°C
Humidity Measurement Range: 1.0% to 100% RH
Accuracy: < ±1% RH
Communication Interface RS232 / RS485
Maximum communication distance: 1.2 km (optical fiber up to 30 km)
Can connect to a printer for temperature and humidity curve monitoring
Program Editing 120 programmable groups
Maximum 100 segments per program
Interface Language Chinese / English (freely selectable)
PID Groups & Program Link Temperature: 9 groups
Humidity: 6 groups
Each program can be linked
Power Supply & Electrical Power supply: 85-265V AC, 50/60Hz
Lithium battery life: At least 10 years
Dielectric withstand voltage: 2000V AC / 1 min

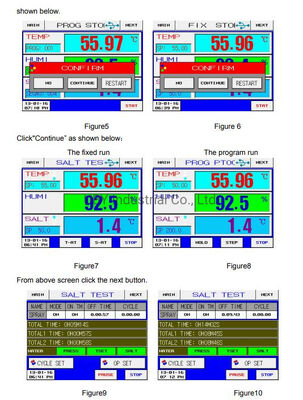

Product Images
Temi880 Temperature and Humidity Controller with 120 Program Groups High Accuracy and Touch Screen Interface for Environmental Chambers 0 Temi880 Temperature and Humidity Controller with 120 Program Groups High Accuracy and Touch Screen Interface for Environmental Chambers 1 Temi880 Temperature and Humidity Controller with 120 Program Groups High Accuracy and Touch Screen Interface for Environmental Chambers 2 Temi880 Temperature and Humidity Controller with 120 Program Groups High Accuracy and Touch Screen Interface for Environmental Chambers 3 Temi880 Temperature and Humidity Controller with 120 Program Groups High Accuracy and Touch Screen Interface for Environmental Chambers 4
