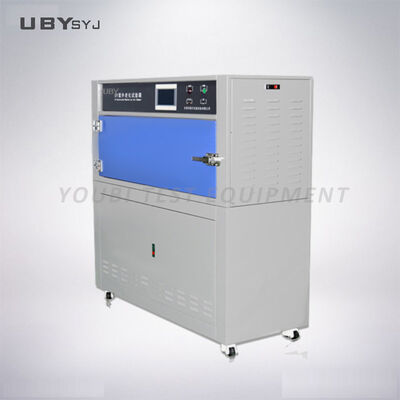

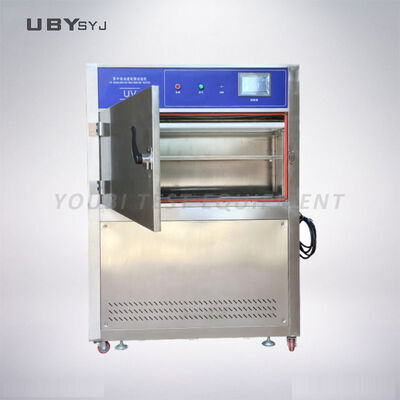

Name: ASTM G 153 Compliant UV Aging Test Chamber with SUS#304 Stainless Steel and 8 UV Lamps for Accelerated Weathering Testing
Brand: Dongguan Youbi Test Equipment Co.,Ltd
SKU: UP-6200
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Product Name: UV Aging Test Chamber

Model NO.: UP-6200

HS Code: 8514199000

UVA: 340 Lamps

UVB: 313 Lamps

UV Lamp: 8 PCS

Himidity Range: 95% R.H

Materials: SUS#304 Stainless Steel

Custom Service: OEM,ODM

Size Service: Support Customer Customization

Third-Party Calibration Service: Support Customer Customization

Specification: Refer To The Actual Size Specifications

Highlight:

ASTM G 153 Compliant UV Aging Test Chamber

SUS#304 Stainless Steel UV Accelerated Aging Weathering Test Machine

8 UV Lamps Environmental Test Chamber

Basic Infomation

Place of Origin: CHINA

Brand Name: YOUBI

Certification: CE,ISO

Model Number: UP-6200

Payment & Shipping Terms

Packaging Details: Professional Export Wooden Box Packaging

Delivery Time: 5-15 work days

Payment Terms: T/T,D/P,Western Union,Paypal,Money Gram

Supply Ability: 30 Unit/month

Gallery

ASTM G 153 Compliant UV Aging Test Chamber with SUS#304 Stainless Steel and 8 UV Lamps for Accelerated Weathering Testing

Product Description

UP-6200 UV Irradiation Aging Test Chamber

UV Accelerated Aging Weathering Test Machine

Compliant With ASTM Standards UV Accelerated Aging Weathering Test Machine

Applications

Widely used in paint, coating, plastic & rubber material, printing & packing, adhesive, car & motorcycle, cosmetic, metal, electron, electroplate industry, etc.

Compliance Standards

ASTM G 153, ASTM G 154, ASTM D 4329, ASTM D 4799, ASTM D 4587, SAE J 2020, ISO 4892.

Key Features

CNC machined chamber with attractive appearance and convenient two-way flip-cover design
Imported SUS stainless steel interior and exterior for enhanced durability and cleanliness
Inner tank water channel heating for rapid, uniform temperature distribution
Vortex-flow and U-type sediment drainage system for easy cleaning
User-friendly QUV design with easy operation and reliable safety features
Adjustable specimen thickness with easy installation
Upward rotating door design that doesn't hinder operation
Unique condensation device requiring only tap water
Under-container water heater for long life and convenient maintenance
External water level control for easy monitoring
Integrated wheels for easy mobility
Simple computer programming interface
Long-life irradiation calibrator
English and Chinese operation manuals included

Technical Parameters

Parameter	Specification
Model	UP-6200
Working Chamber Size (CM)	4511750
Outside Size (CM)	70135145
Power Rating	4.0 KW
Tube Quantity	UV Lamp 8 (4 per side)
Temperature Range	RT+10ºC~70ºC
Humidity Range	≥95% R.H
Tube Distance	35mm
Sample to Tube Distance	50mm
Sample Plate Capacity	Length 300mm*Width 75mm (Approx. 20 pcs)
Ultraviolet Wavelength	290nm~400nm (UV-A340, UV-B313, UV-C351)
Tube Power Rating	40W
Temperature Controller	Imported LED, digital P.I.D + S.S.R Microcomputer
Time Controller	Imported programmable time integration controller
Heating System	All autonomous system with nichrome heating
Humidity System	Stainless steel surface evaporative humidifier
Blackboard Temperature	Thermometal blackboard thermometer
Water Supply	Automatic controlled humidification water supply
Exposure Methods	Moisture condensation and illumination radiation exposure
Safety Protection	Leakage, short circuit, over-temperature, water shortage, overcurrent protection

Our Service Commitment

We provide comprehensive consultative selling services throughout the entire business process:

Customer Inquiry Process

Discussion of testing requirements and technical details, product recommendations, and competitive pricing based on customer specifications.

Customization Process

Detailed drawings and reference photos for customized requirements, final solution confirmation, and pricing agreement.

Production and Delivery

Manufacturing according to confirmed requirements, production progress updates, final product confirmation, calibration services, and timely delivery coordination.

Installation and Support

Field installation services and comprehensive after-sales support.

Frequently Asked Questions

Are you a manufacturer? What about warranty and after-sales service?

Yes, we are professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment. All machines include 12-month warranty with free maintenance. Extended 2-month coverage accounts for sea transportation. Technical support available via email, phone, or video chat with solutions provided within 24-48 hours.

What is the delivery timeframe?

Standard machines in stock: 3-7 working days. Custom orders: 15-20 working days after payment. Expedited arrangements available for urgent requirements.

Do you accept customization and branding?

Yes, we offer both standard and customized machines according to specific requirements, including OEM and ODM services with customer logo application.

How do I install and operate the machine?

We provide comprehensive English operation manuals and videos. Most machines ship fully assembled - simply connect power and begin operation. On-site installation assistance available when necessary.
